HDBT-HD-70/100TR-AE Extender

HDBT-HD-70/100TR-AE Extender is an AE version HDMI extender which is using the advanced HDBaseT technology. It can transmit the HDMI signal, audio embedded/de-embedded, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power on one side with the POC function.

inquiry

Introduction

HDBT-HD-70/100TR-AE is an AE version HDMI extender which is using the advanced HDBaseT technology. It can transmit the HDMI signal, audio embedded/de-embedded, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power on one side with the POC function. It also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 70m/220ft(100m/330ft), for 4K30Hz it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID management on the transmitter, compliant with HDMI1.4, HDCP1.4.
It can be popularly used in media conferencing room, school, government, cinema and so on applications.

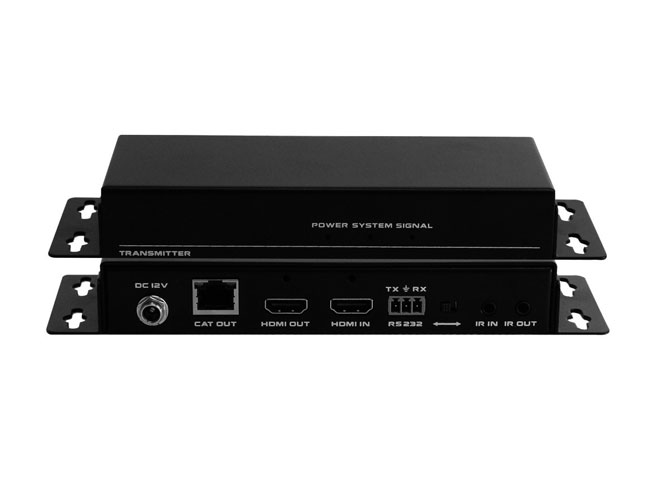

Real shot products

  • 2改416x336
  • AE-R改416x336
  • 0改416x336
  • 5改416x336



  • Features

    · HDBaseT technology HDMI Extender

    · Extend 4K/30(4:4:4) video & IR & RS232 Control

    · Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)

    · HDMI1.4a and HDCP1.4

    · RS232 and IR signal transmission, POC function

    · EDID management and 3.5mm audio embedded on the transmitter

    · Support 3.5mm audio de-embedded on the receiver

    Technical Parameters

    Tyoe HDBT-HD-70/100T-AE HDBT-HD-70/100R-AE
    Input 1×HDMI, 1×RS232,1×R-Tx, 1×R-Rx 1×HDBaseT
    Output 1×HDBaseT 1×HDMI, 1×RS232,1×R-Tx, 1×R-Rx
    Standard Protocol Supports HDMI 1.4 and compatible HDCP 1.4
    Resolution Up to 3840x2160@60Hz
    Bandwidth 10Gbps
    Distance 1080p60Hz:70m(Cat6/7) ; 1080p: 70/100m(230/330feet)
    Dimension 115*84*16(mm)(Tx/Rx)/ 4.52*3.30*0.63(inch)
    Weight 160g(Tx/Rx) 0.35lbs
    Power Supply AC:100-240V 50/60Hz 1.5A Max  DC:12V 1500mA
    Power consumption ≤10W
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

    Connection diagram

    connection-diagram
