HDMI Eextender HDBaseT Wallplate Receiver an HDBaseT Wallplate Receiver which supports 1*HDMI input and LED indicators, the resolution can up to 4k@30hz, with the POC(power over cable) function
inquiry

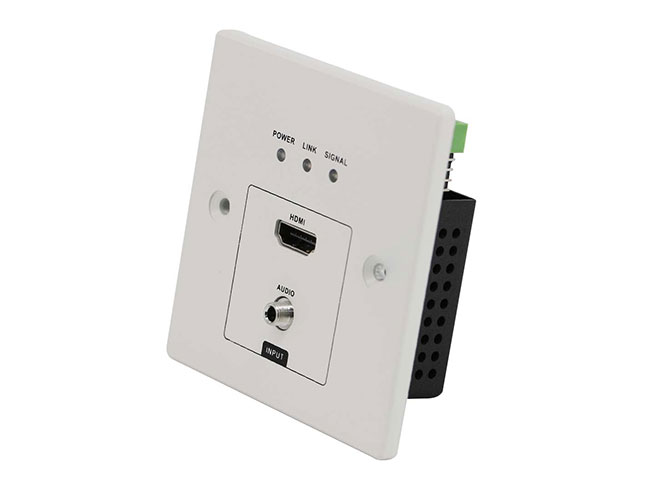

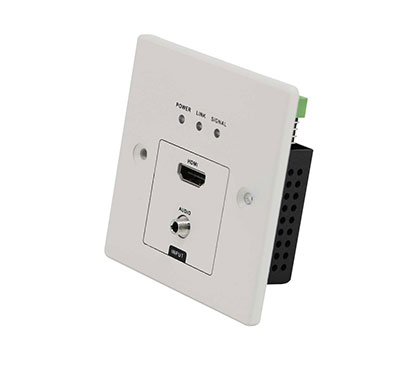

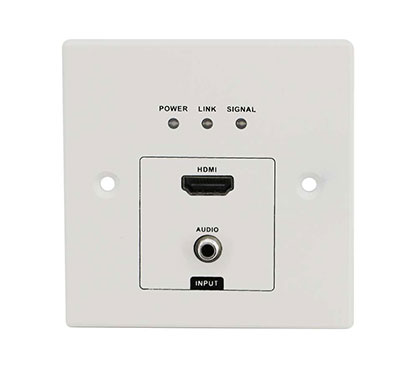

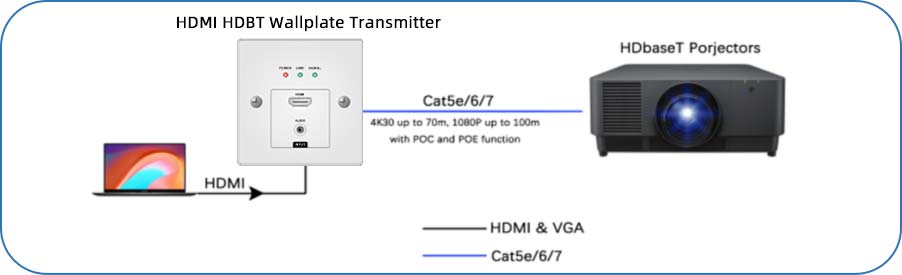

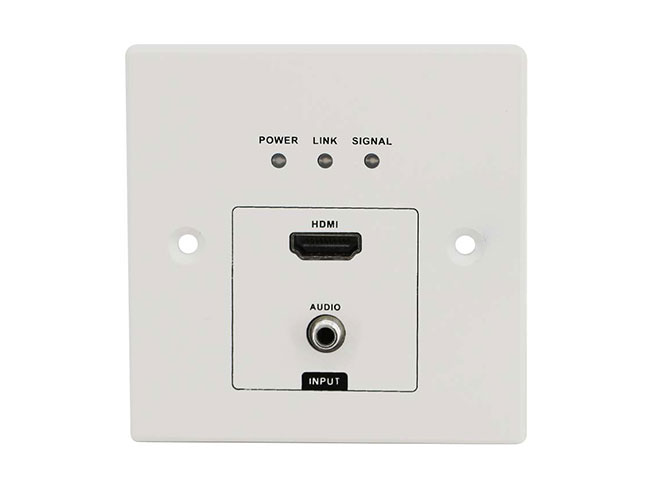

HDMI Wallplate Transmitter is an HDBaseT Wallplate transmitter of HDMI extender series which supports 1*HDMI input and LED indicators, HDMI Wallplate Transmitter resolution can up to 4k@60hz, with the POC(power over cable) function, users can only power on the HDBaseT receiver, for the HDMI Wallplate transmission distance, the HDMI Wallplate Transmitter can up to 70m at 1080P60, and HDMI Wallplate Transmitter can up to 35m over single Cat5e/6/7 cable based on 4K30Hz. HDMI wallplate of HDMI extender series popularly used in the small meeting room, classroom or other long distance transmission applications.
· Support HDMI input and HDBaseT Output
· Supports HDCP 2.2 and HDMI 2.0
· Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K60)

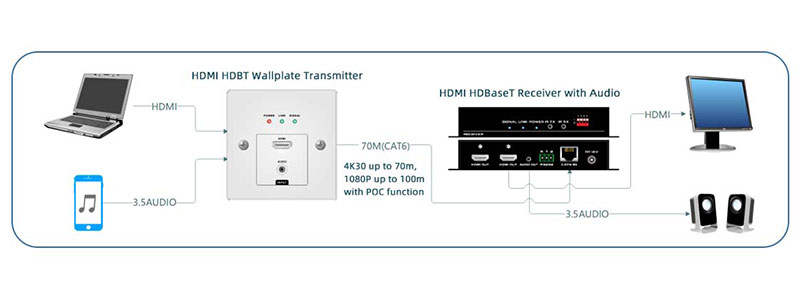

· Support 3.5mm audio embedded function
· Supports POC(power over Cable)
· LED working indicator
| Tyoe | HDBT-WALL-HD-70T/100T | |
| Input | 1×HDMI; 1x3.5mm | |
| Output | 1×HDBaseT(RJ45) | |
| Standard Protocol | Supports HDMI2.0 and HDCP2.2 | |
| Resolution | Up to 4K60Hz(4:2:0) | |
| Distance | 70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60（4:2:0) over single Cat6/6a/7 cable | |
| Dimension |

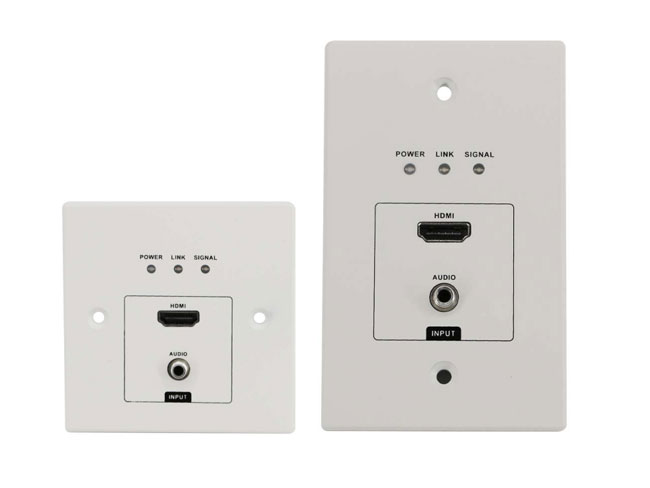

US Panel size:115*140*40mm/ 4.52*5.51*1.57inch UK Panel size:88*88*40mm/3.46*3.46*1.57inch |
|
| Weight | 200g/0.45lbs | |
| Power Supply | DC：12V 1.5A | |
| Power consumption | ≤2.4W | |
| Working Temperature | -10℃-40℃ | |
| Storage Temperature | ﹣25℃-55℃ | |
HDBT-WALL-HD-70T/100T-86 x1
Power Adapter (12 VDC 1A)x1
