4K HDMI+VGA HDBaseT Wallplate Transmitter-Being HD

HDBT-TABLE-HDV-70/100T

HDBT-TABLE-HDV-70/100T is a table box transmitter, it can transmit the HDMI/VGA+3.5mm signal up to 70/100 m(230ft/330ft) with one single cate5e/6/7 cable. When transmitting the VGA signal, it will convert the analog signal to digital signal to any displays. With HDMI input port, it realizes digital to digital transmission. It's using HDBaseT technology to transmit, realize video and audio high fidelity transmission, avoid the signal losses during the transmission. Transmitted by one signal cable to save the cable installation problem and save costs.

inquiry

Product details

Introduction

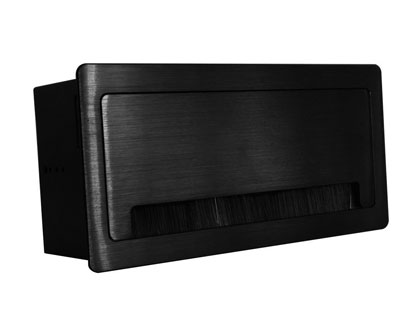

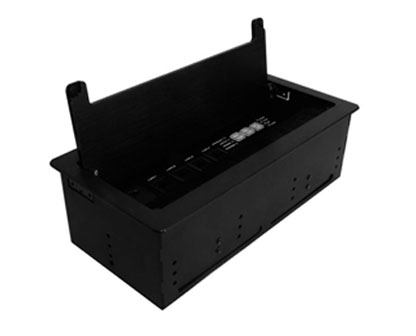

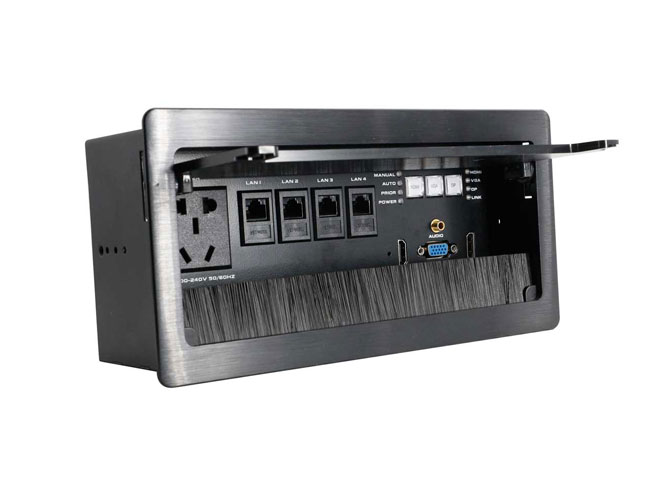

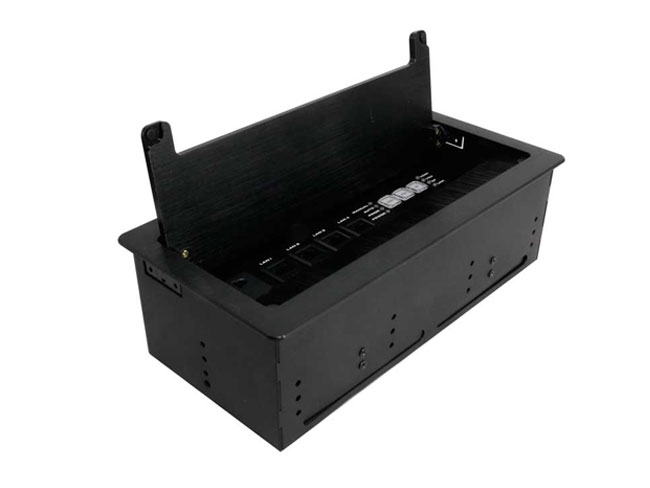

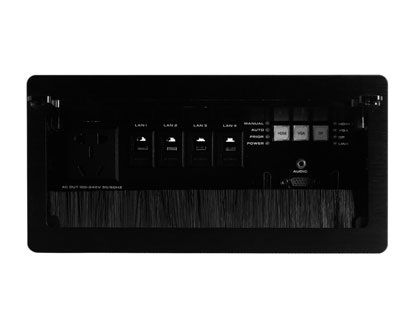

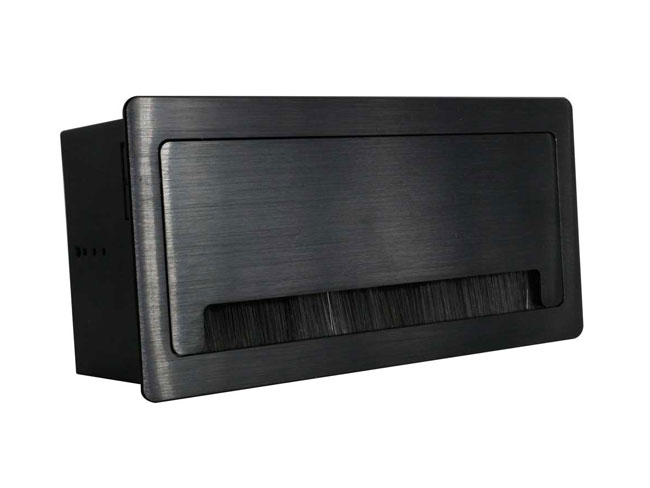

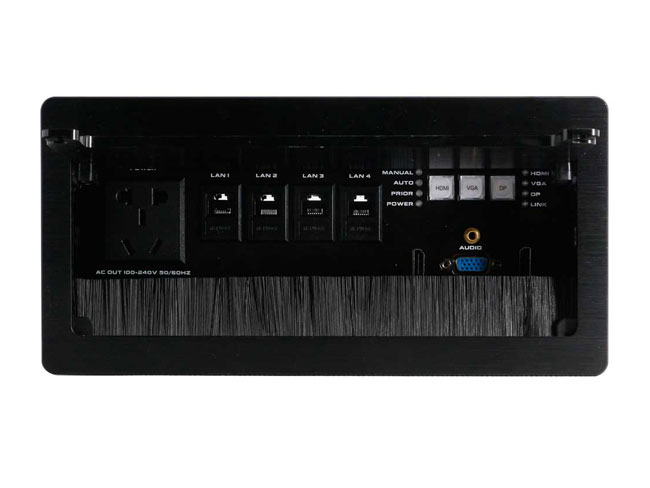

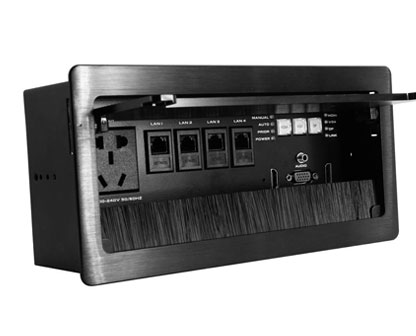

Real shot products

4K-table-box-transimmion-with-HDMI1.4-and-HDCP1.4

HDBaseT-extender-with-HDMI1.4-and-HDCP1.4

Features

· HDBaseT technology table box

· Support HDMI+VGA+3.5mm input

· Support AC 110V-260V 50/60Hz power input/output

· Support Ethernet pass-through ports

· LED indicator to observe connection status and the switch buttons

· Embedded designing, convenient to install and adjust

Technical Parameters

Tyoe	HDBT-TABLE-HDV-70/100T
Description	HDBaseT Table box transmitter
Input	1×HDMI, 1×VGA, 1×DP,4×LAN,1×3.5mm Audio
Output	1×HDBaseT, 1×LAN,1×AC
Protocol	HDMI1.4, HDCP1.4 and EDID management
Resolution	Up to 4K60Hz(4:2:0)
Distance	70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60（4:2:0) over single Cat6/6a/7 cable
Dimension	266x130x134(mm)/10.475.115.27inch
Installation Size	255x120xR6(mm)/10.034.72R0.23inch
Weight	3kg/6.61bs
Power Supply	AC：110V-260V 50/60Hz input/output
Power consumption	≤12W
Working Temperature	0℃-50℃
Storage Temperature	﹣20℃-55℃
