Giriş

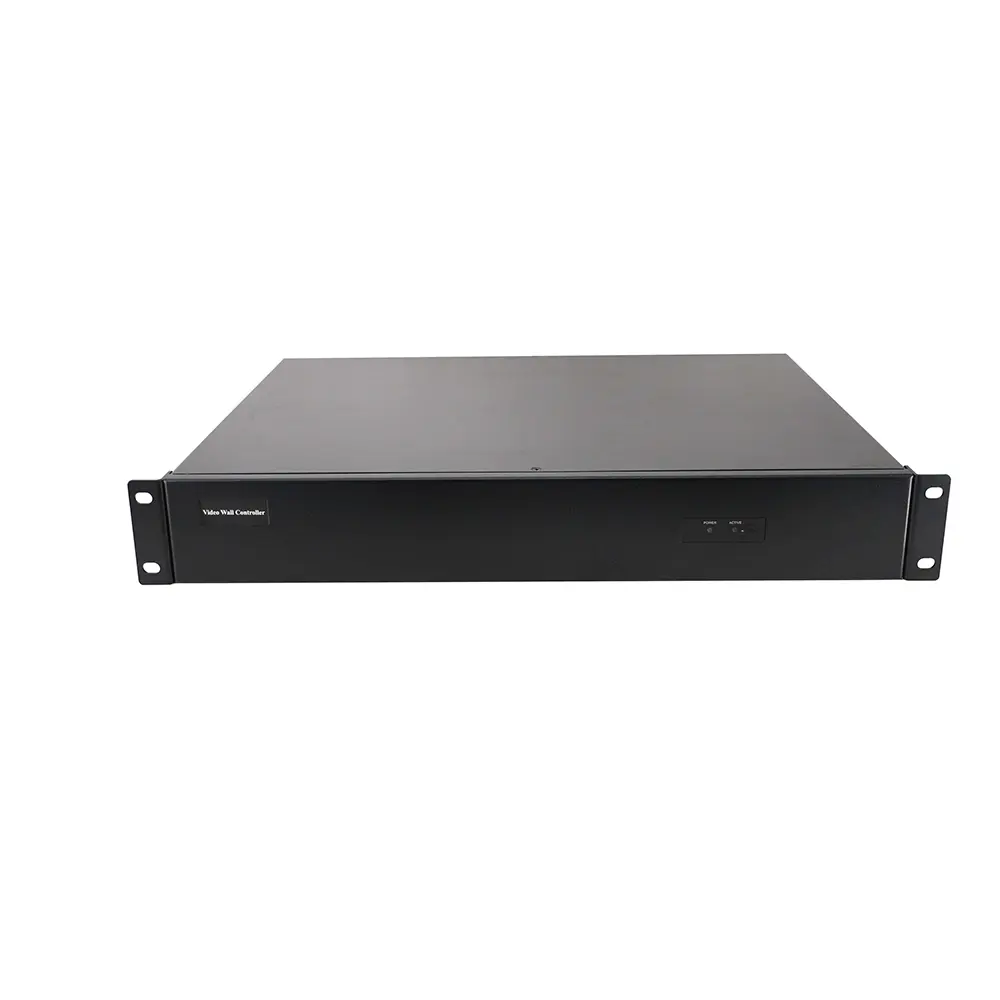

It’s a high performance video processing workstation with pure hardware architecture for spectacular video wall displaying which can be employed in fields including education and research, government announcement, information publishing, exhibition and show, controlling and commanding center, security monitoring, etc. Advanced image processing technologies such as high definition video signal collecting, real time and high resolution digital image processing. It also employs large-capacity, high-speed FPGA and CrossPoint switch to ensure the real-time processing of all input signal and the consistency of the data, leading to no image delay, discretization, frame loss, which guarantee excellent video displaying.
Özellikler

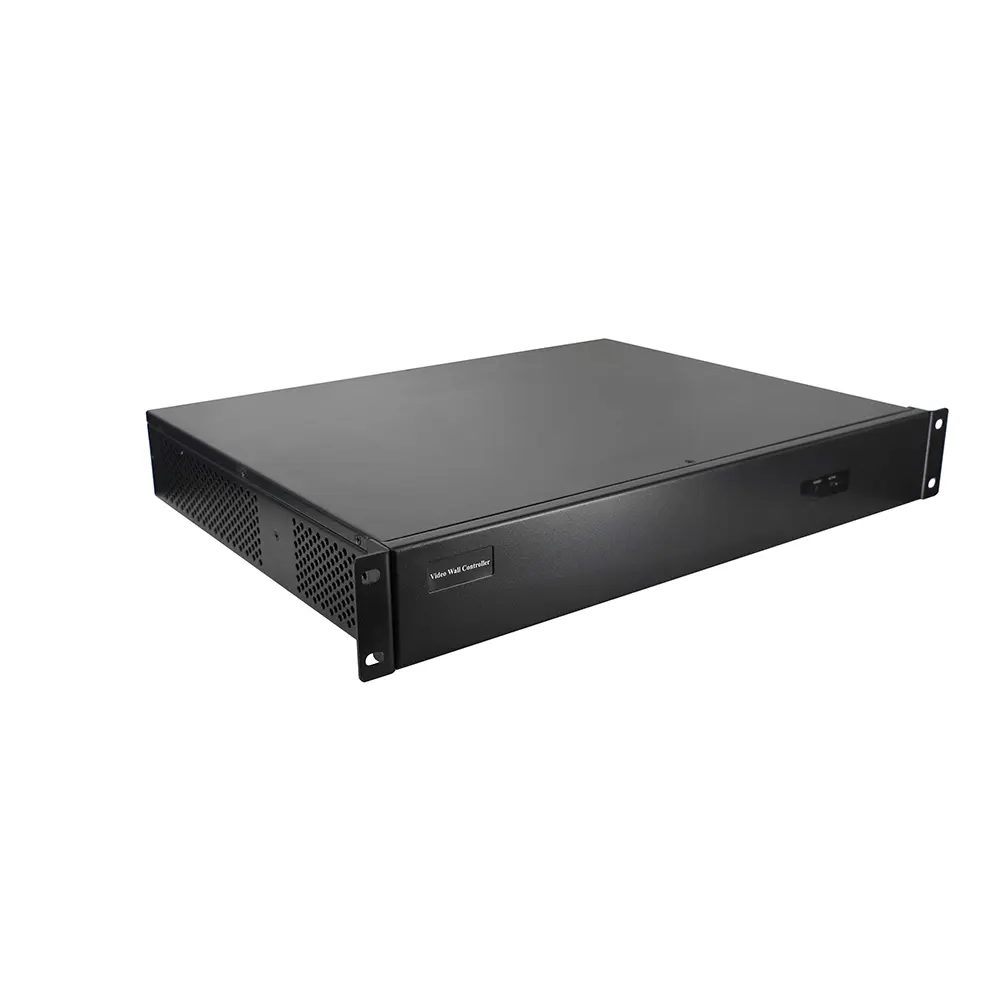

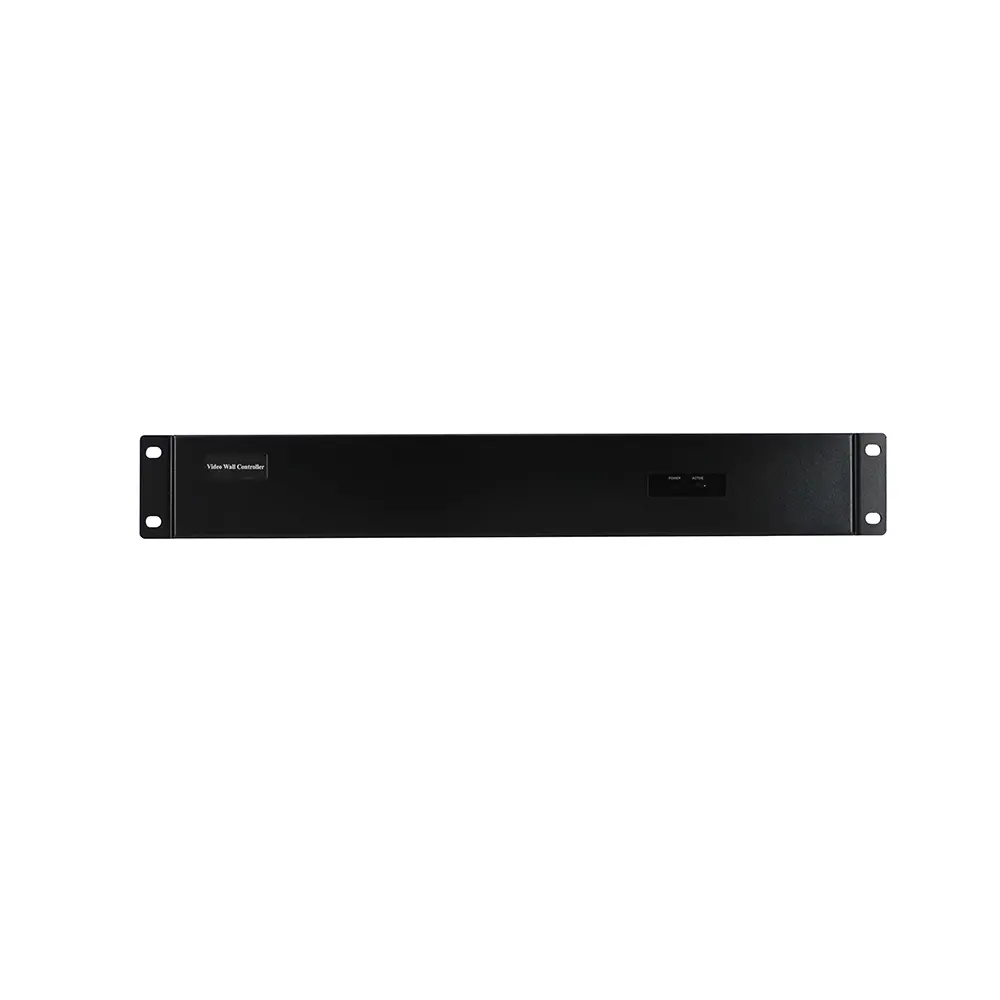

- 1.5U modular chassis

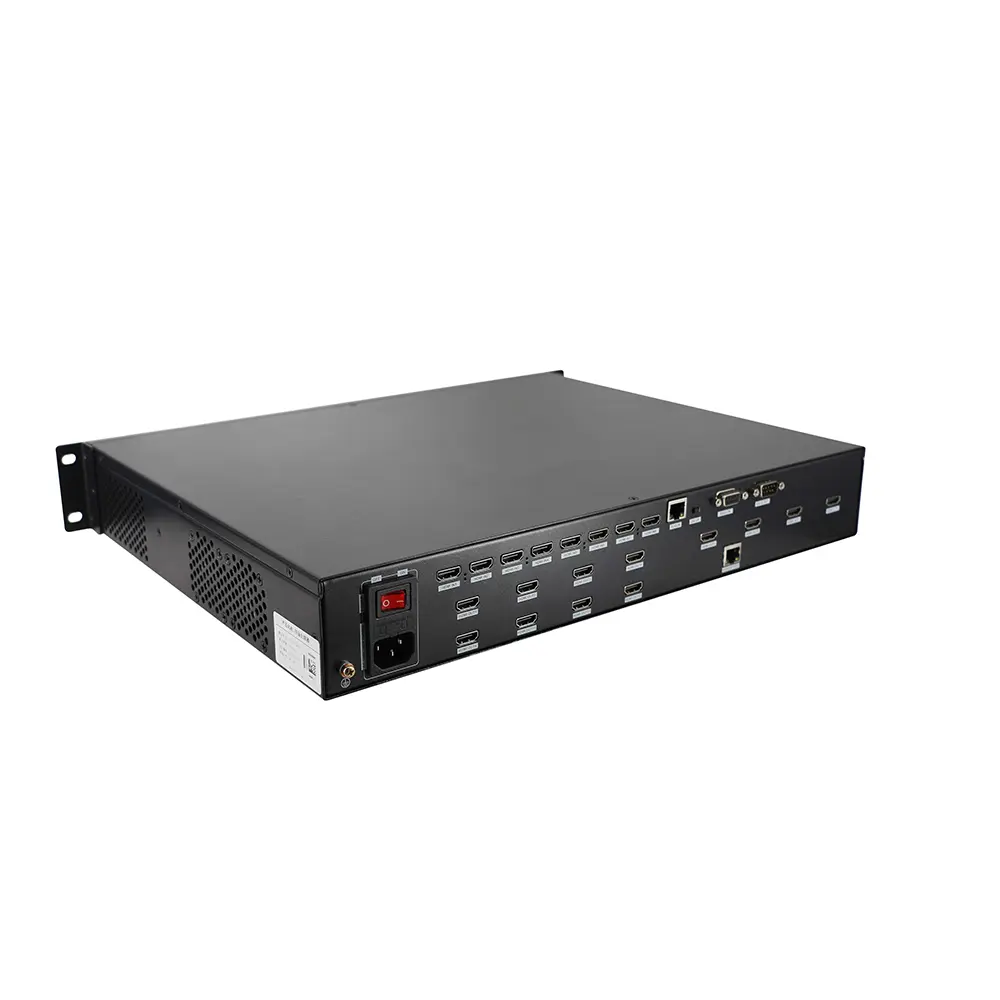

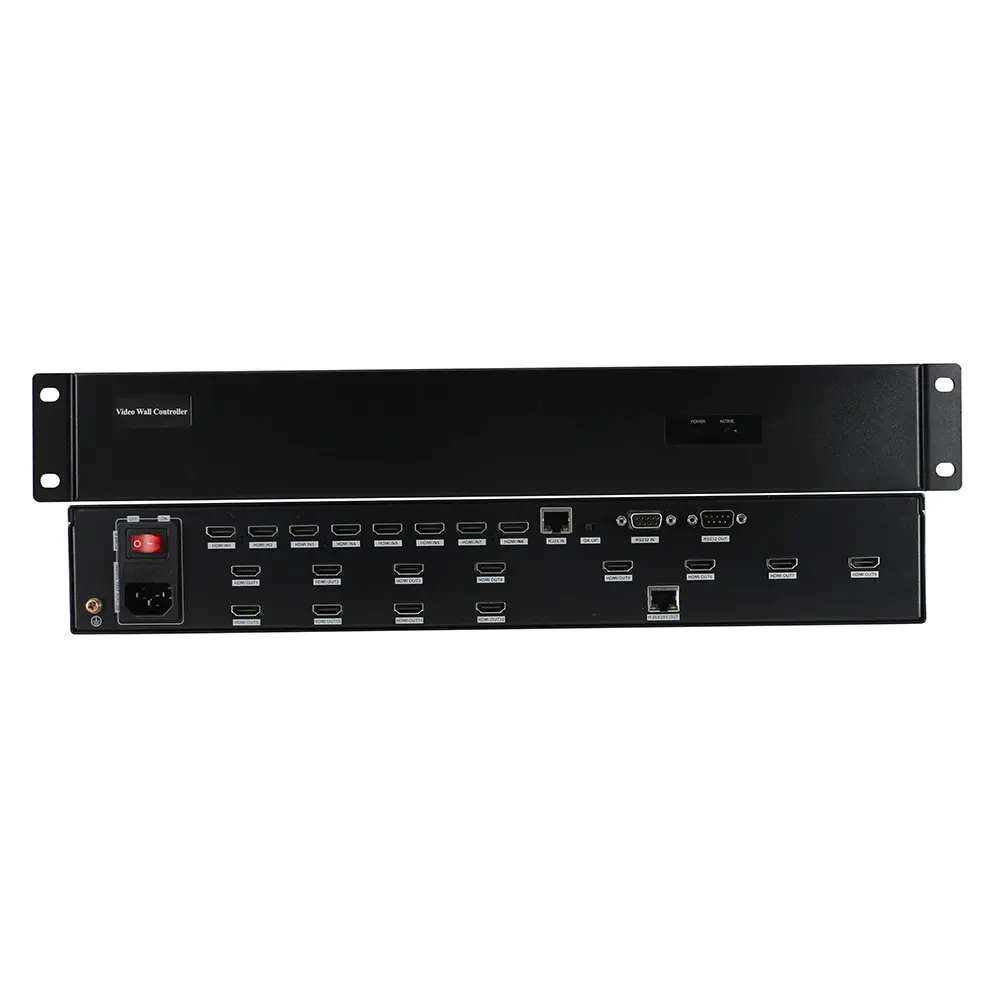

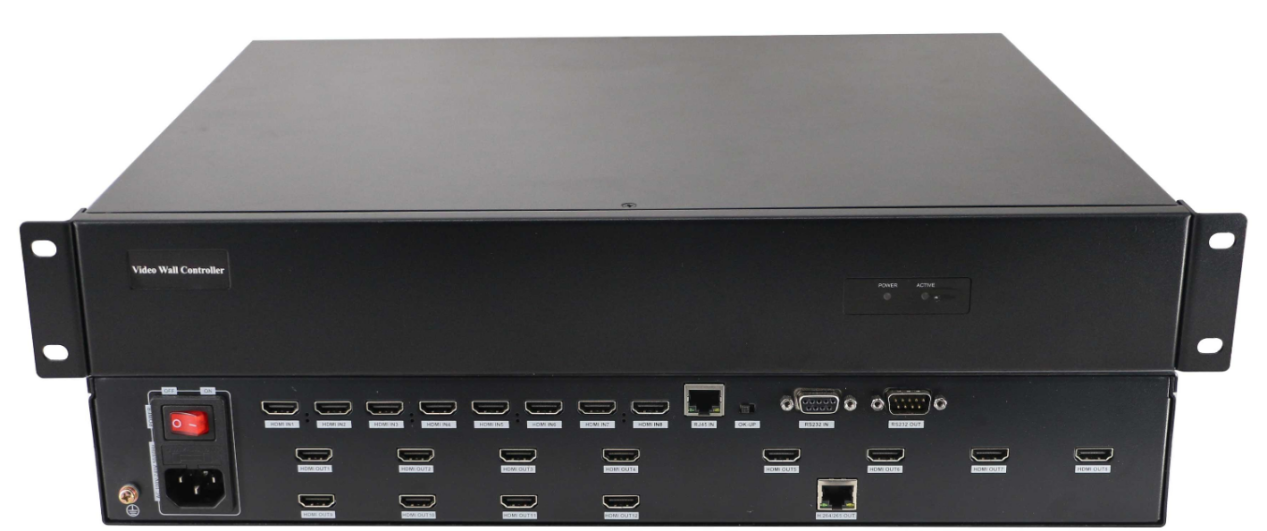

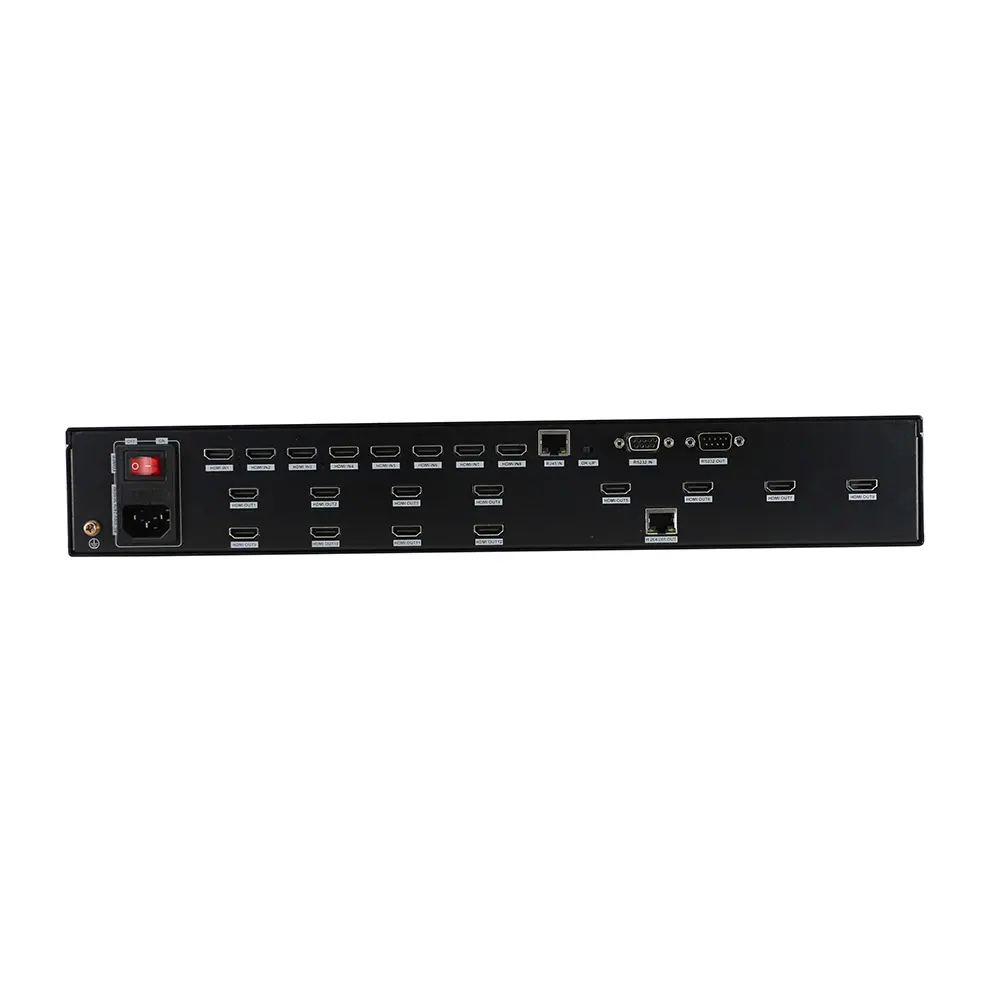

- 8 HDMI input and 12 HDMI outputs
- Supports to open 2 windows on screen
- Supports PIP, cross-screen, pure-hardware design
- Supports up to Video wall groups management
- Supports the PC software/ APP/ RS232 control
- Supports input sources preview
Şartname
| Inputs number | 8 HDMI inputs |
| Outputs number | 12 HDMI outputs |
| Kontrol | RS232, LAN, APP |
| Boyut | 410*350*72mm |
| Ağırlık | 7kg |
| Power Supply | 100VAC–240VAC 50/60Hz |
| Tüketim | 95W |
| Working Humidity | 10%-90% |
| Temperature | -10℃-50℃ |
| Storage | -20℃-75℃ |

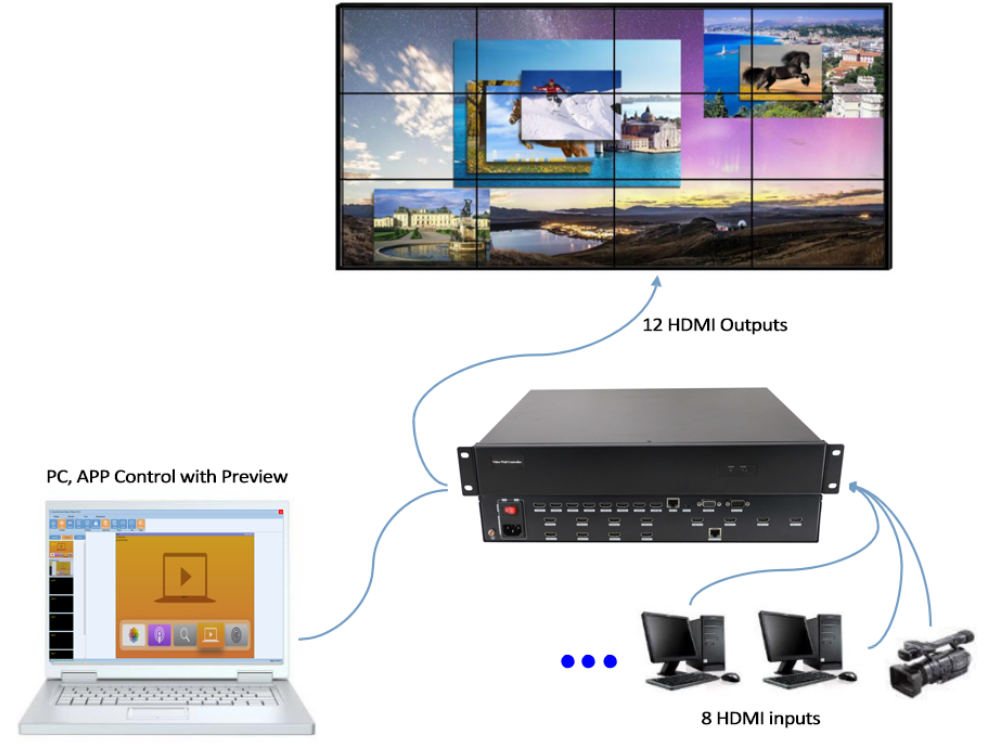

Bağlantı şeması
