Giriş

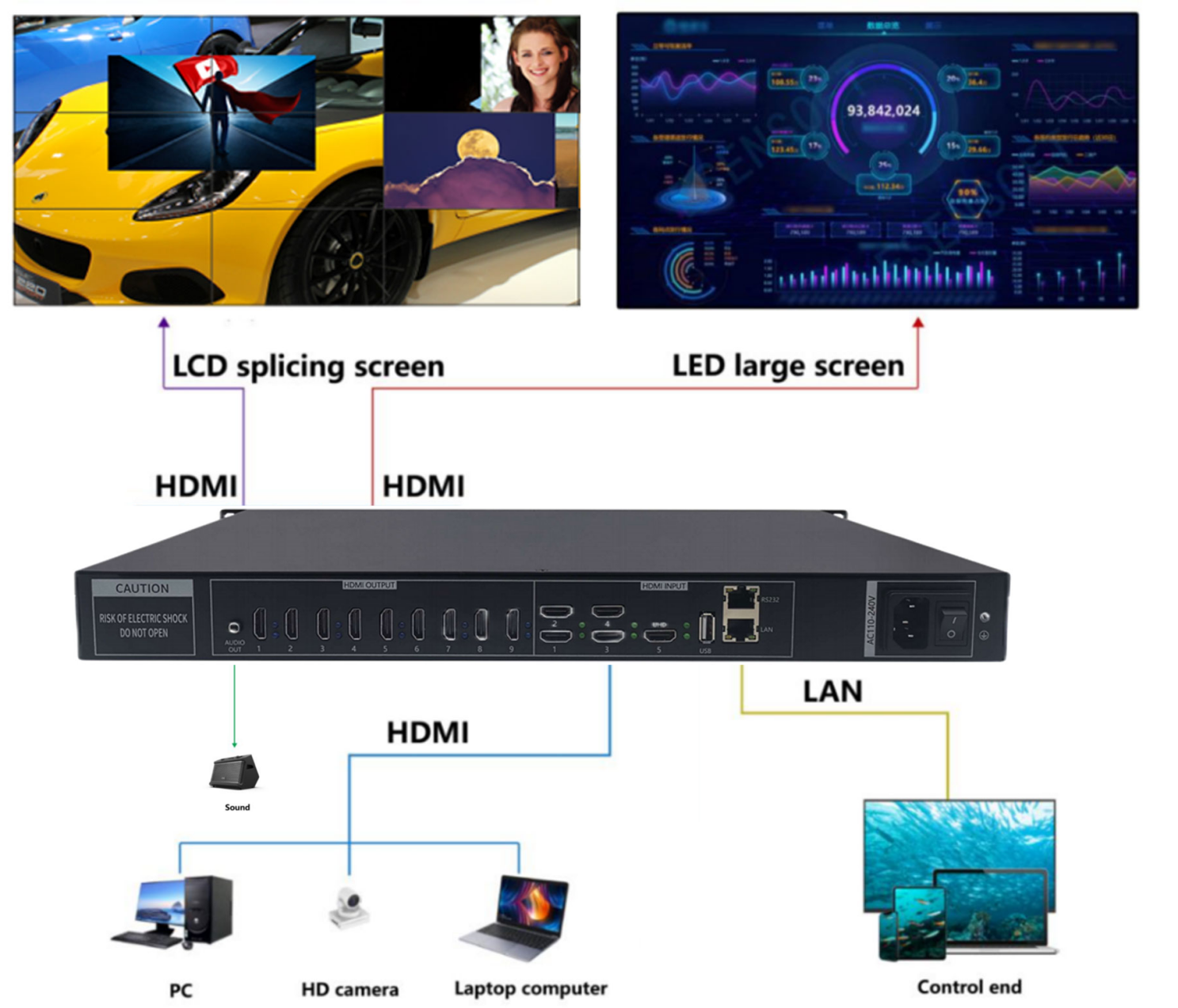

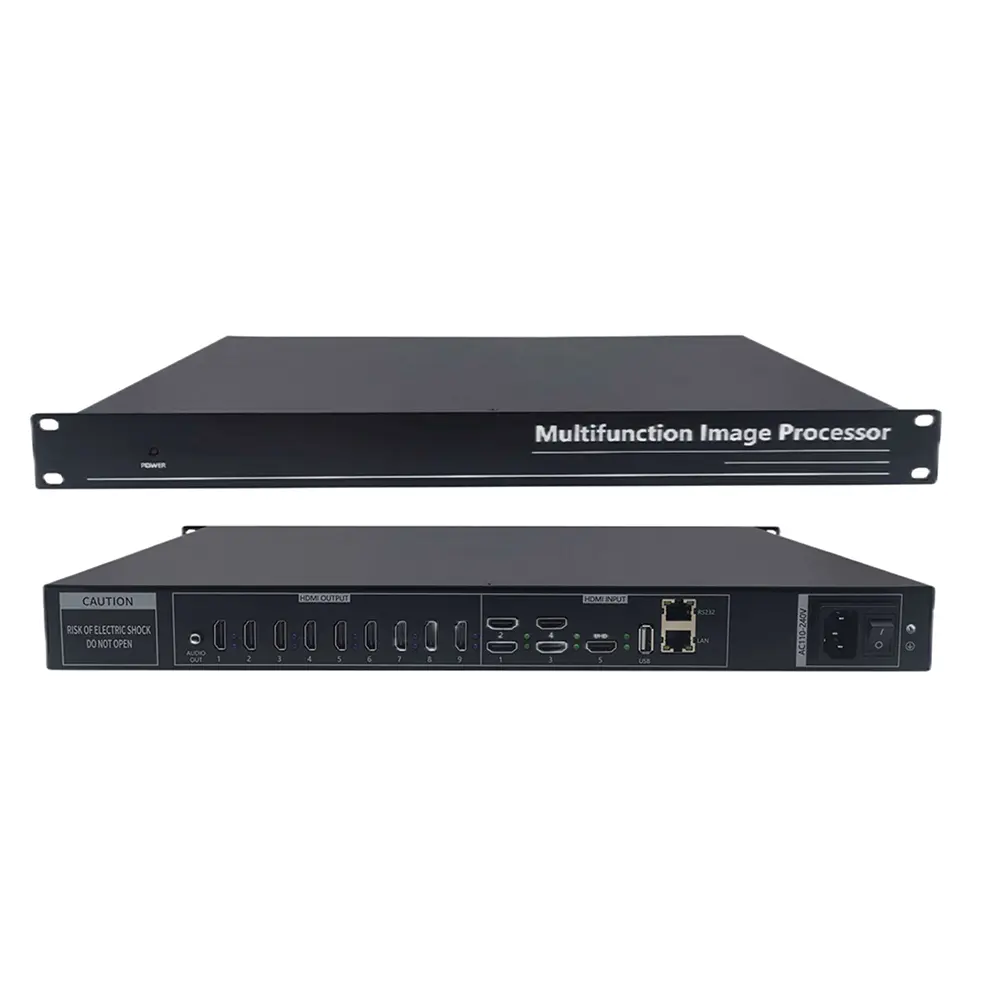

This video wall controller supports 5 HDMI inputs(1*4K60 and 4*1080P60) and 9 1080p HDMI outputs, with the PC control software, it can support to customize ultra-high resolution perfect display for users, the resolution can reach NxM, N=1920*n(column), M=1080*m(row) to provide users with perfect detailed image display. It also can support the PIP with up to 9-win per screen, cross-screen, background image and scrolling text those functions, with the PC software to manage all the settings, support video wall content echo preview, renaming, audio control. This video wall controller is perfect for the shopping mall, commercial, meeting room and control centers.
Özellikler
- Supports 5 HDMI inputs(4* 1080P and 1*4K60)
- Supports 9HDMI outputs up to 1080P60
- Support to open 9-window per screen, up to 81 windows in total
- Support video content echo preview
- Support web gui control for the the scenes save and recall
- Support audio pass-through and one 3.5mm audio de-embedded
- Support background image and scrolling text function
- Support output resolution customization and sync technology for the LED screens.
Şartname
| Specifications name | Detail parameters | |
| Video | Protocol support | HDMI 1.4; HDCP 1.4 |
| HDMI pixel bandwidth | 340MHz，all digital | |
| HDMI interface bandwidth | Total bandwidth 10.2Gbps | |
| Maximum input resolution | 3840*2160@60Hz；downward compatible | |
| Maximum output resolution | 1920*1080@60Hz | |
| Video interface | HDMI-A | |
| HDMI interface impedance | 100Ω | |
| Suggested HDMI cable length | Less then 5m at 1920X1080@60Hz | |
| Ses | Arayüz | 3.5mm stereo audio |
| Audio format | 44.1K,48K,96K,176K,192K | |
| Signal type | Analog | |
| Other | Güç | AC 110~240V |
| Maximum power consumption | MAX 25W | |
| Çalışma sıcaklığı | -5℃ ~ +70℃ | |
| Operating humidity | 5% ~ 90% | |
| Product size | 482.4×225.6×42.3mm | |
