Введение

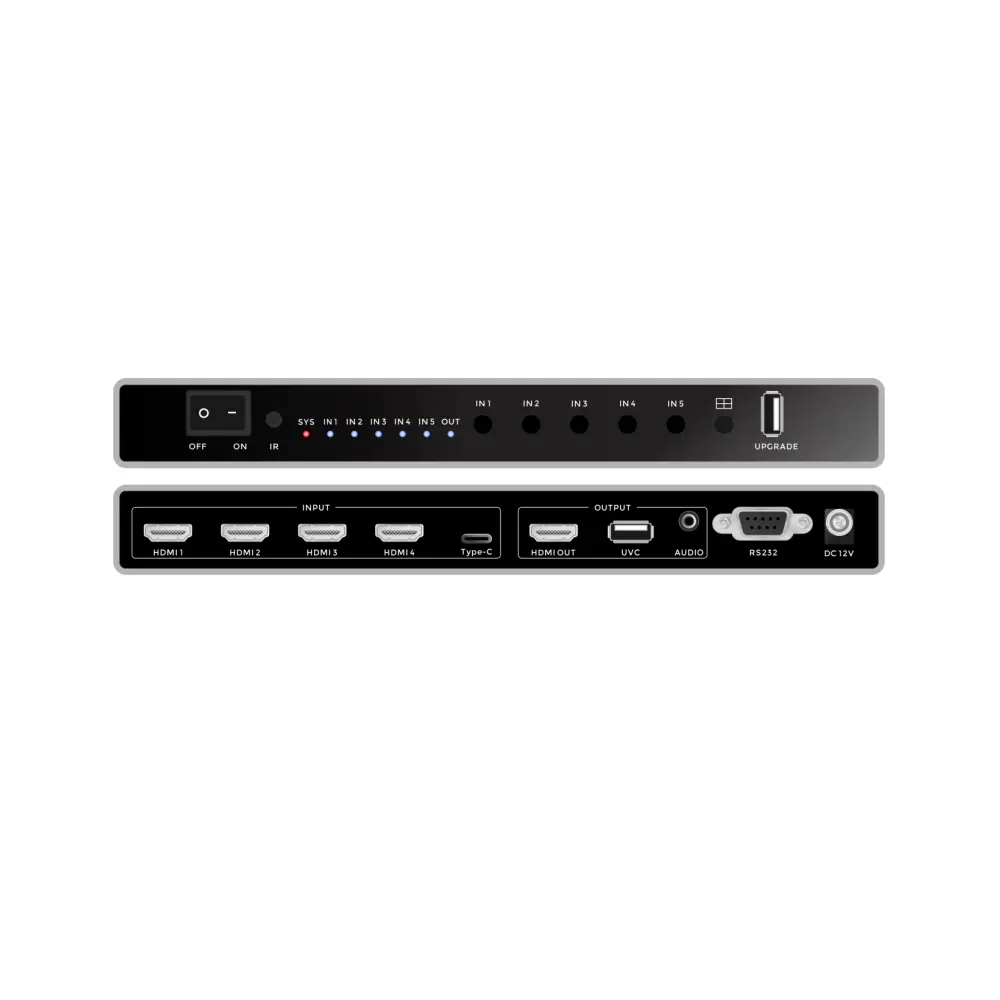

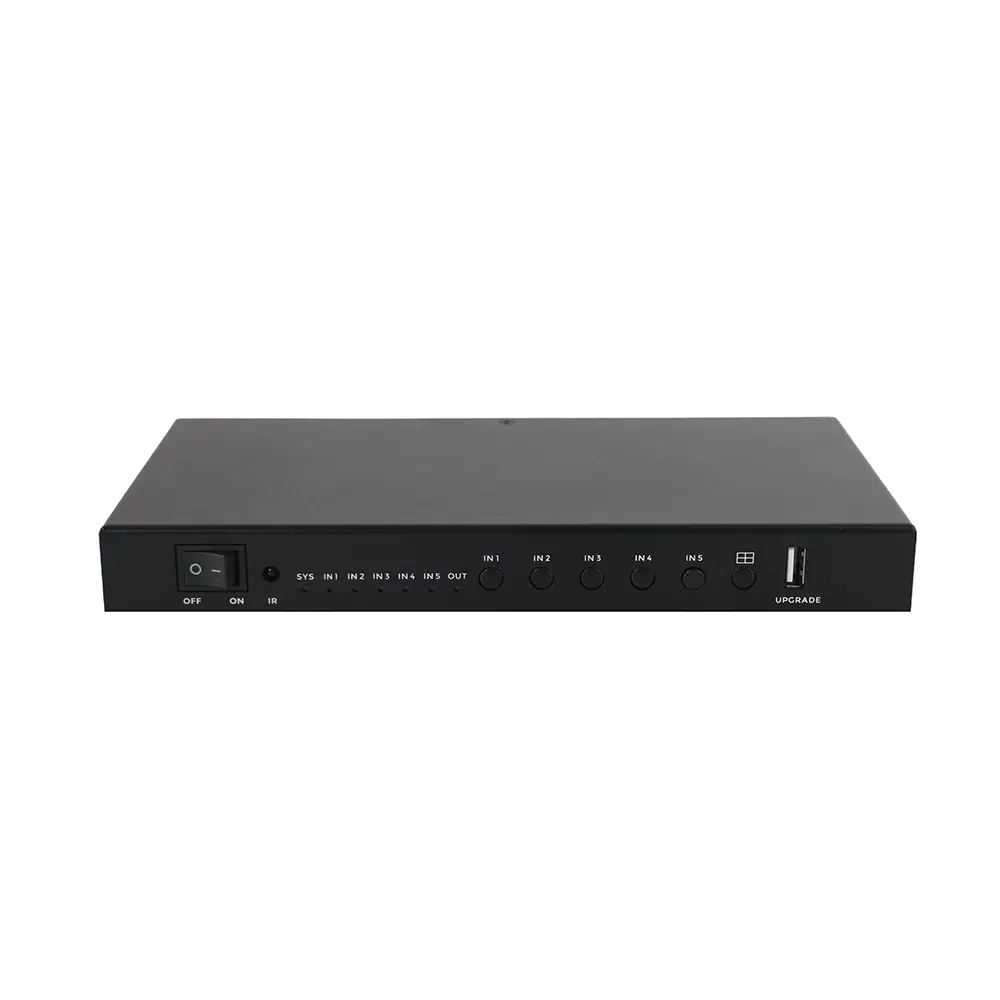

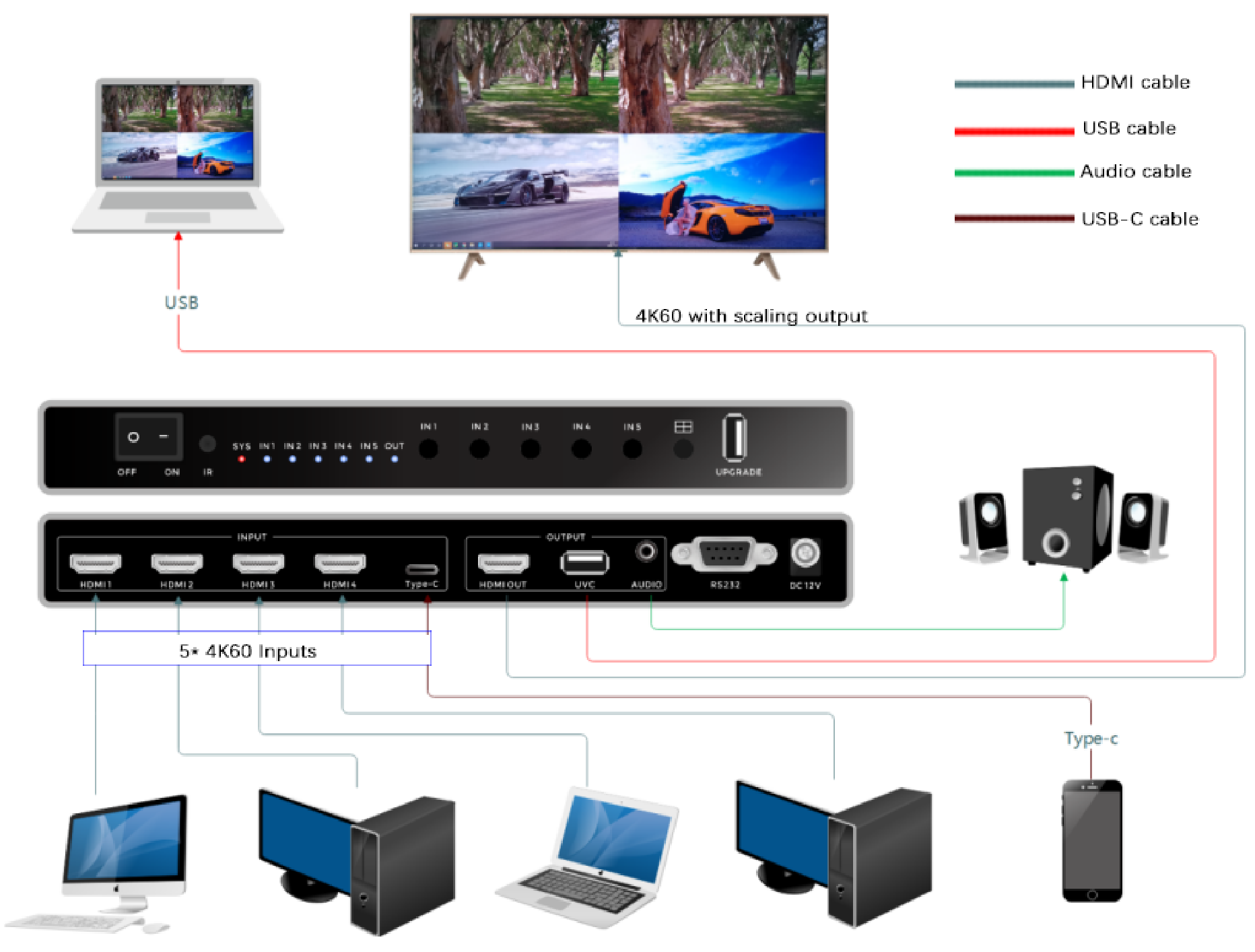

This product is a real 4K60 multiviewer switcher with seamless switching(*when single-window mode) and and scaling function, it supports 4 HDMI2.0 inputs, 1 Type-C input and 1 HDMI2.0 output with 3.5mm audio out and USB2.0 capture. The resolution of both inputs and output can up to 4K@60hz 4:4:4, the bandwidth can up to 18Gbps. Users can use the front panel push buttons, IR remote control, and RS232 codes to control the unit.
Характеристики
- Support 8 working modes/layouts
- Support HDMI2.0, and the resolution up to 3840*2160@60Hz
- Support USB2.0 port for OBS Capture
- Support 4K60 inputs(4*HDMI, 1*USB-C)
- Support seamless switching even when different resolutions inputs
- Support the front panel push-button, IR remote and the RS232 control
- Support USB-A upgrading
Технические характеристики
| Видео | ||
|---|---|---|

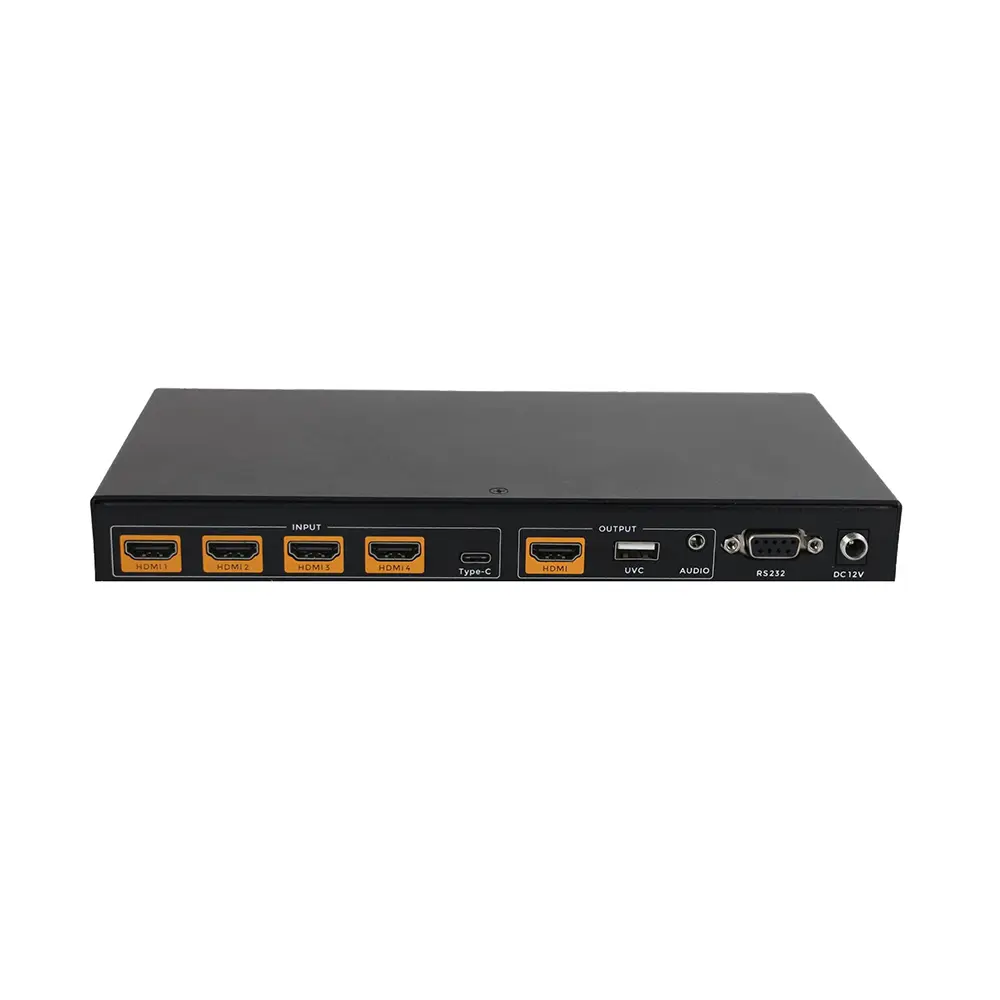

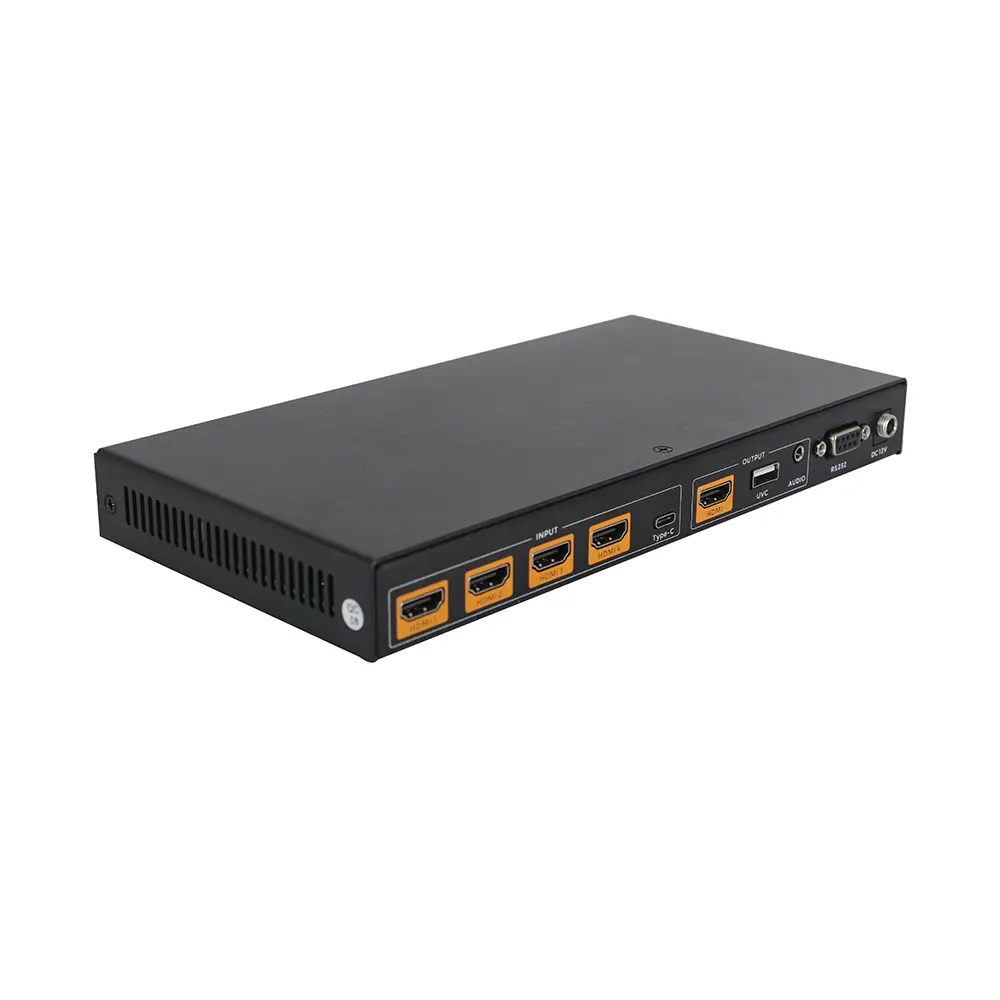

| Input port | 4* HDMI2.0, 1*USB-C | |
| Input resolution |
640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30),3840×21606 (2160p50), 3840×21608 (2160p60)
640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605(2160p30) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz |
|
| Output port | 1* HDMI2.0 | |
| Выходное разрешение | HDMI2.0:
1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21605 (2160p30) , 3840×21606 (2160p50) , 3840×21608 (2160p60) UVC(USB2.0): 1920×10806 (1080p50), 1920×10808 (1080p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz |
|
| Аудио | ||
| Input port | 4x HDMI, 1*USB-C | |
| Input audio signal | RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 | |
| Output port | 1* HDMI2.0, 1* Analog Audio(3.5mm audio), 1*USB2.0 | |
| Output audio signal | RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 | |
| Управление | ||

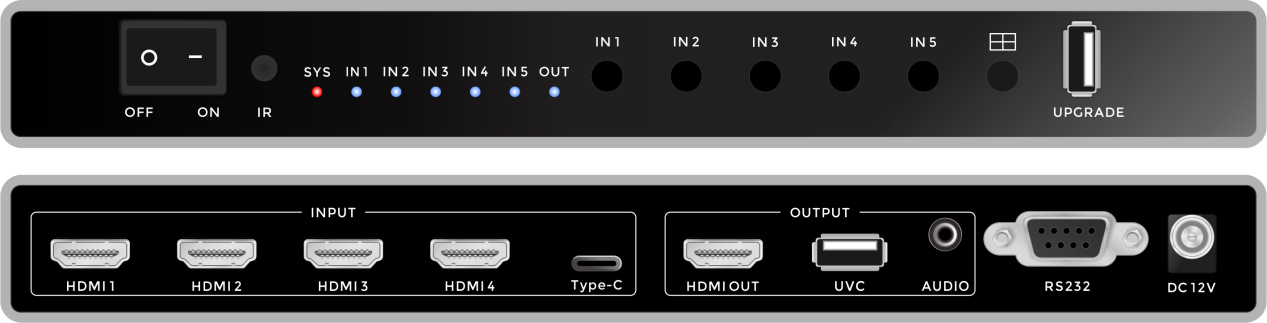

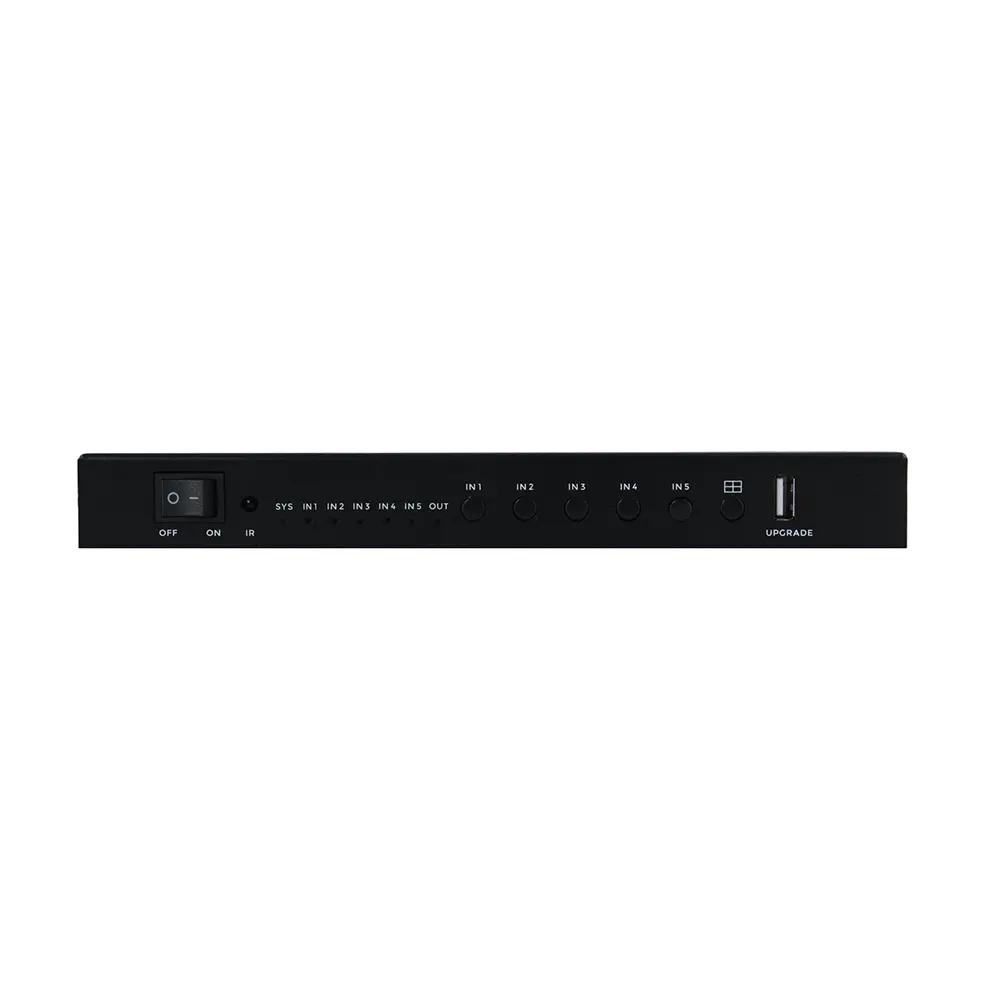

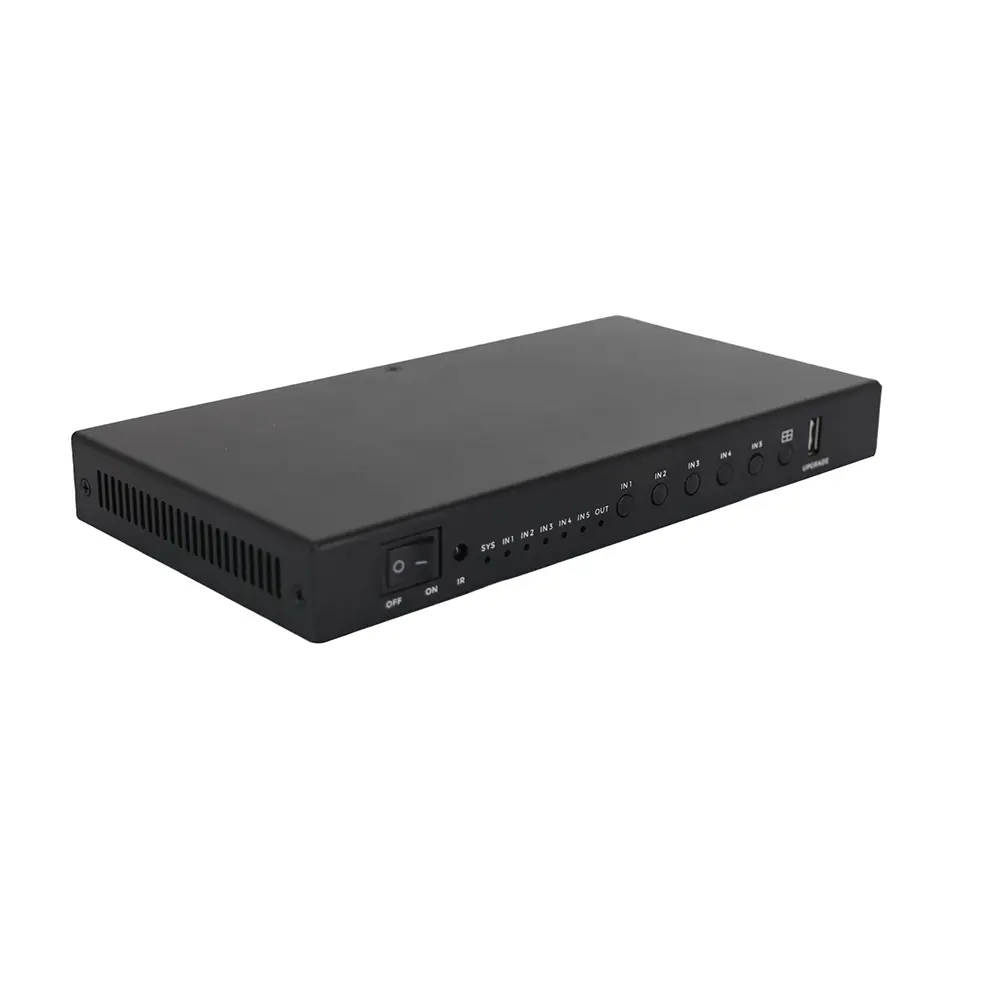

| Front control | IN1: Input 1
IN2: Input 2 IN3: Input 3 IN4: Input 4 IN5: Input 5 |
Single-view mode |
| 田: Default input 1 to input 4 | Quad-view mode | |
| IR | All the functions of the button can be realized through the remote control, and it also supports fast switching. | |
| RJ45 | DB9, serial port control | |
| Others | ||
| Рабочая температура | 0 to +45 C (32 to + 113 F) | |
| Температура хранения | -20 to +70 C (-4 to + 158 F) | |
| Humidity | 10% to 90% | |
| Static Protection | Human body discharge mode:
±8kV (air gap discharge)/ ±4kV (contact discharge) |
|
| Power adapter | DC 12 V 1.5 A | |
| Power consumption | 10W(Max) | |
| Product size(mm) | 240*124*28 | |
| Вес нетто | 2kg | |
Working modes:
*Also can support the RS232 commands to customize layout or output resolutions

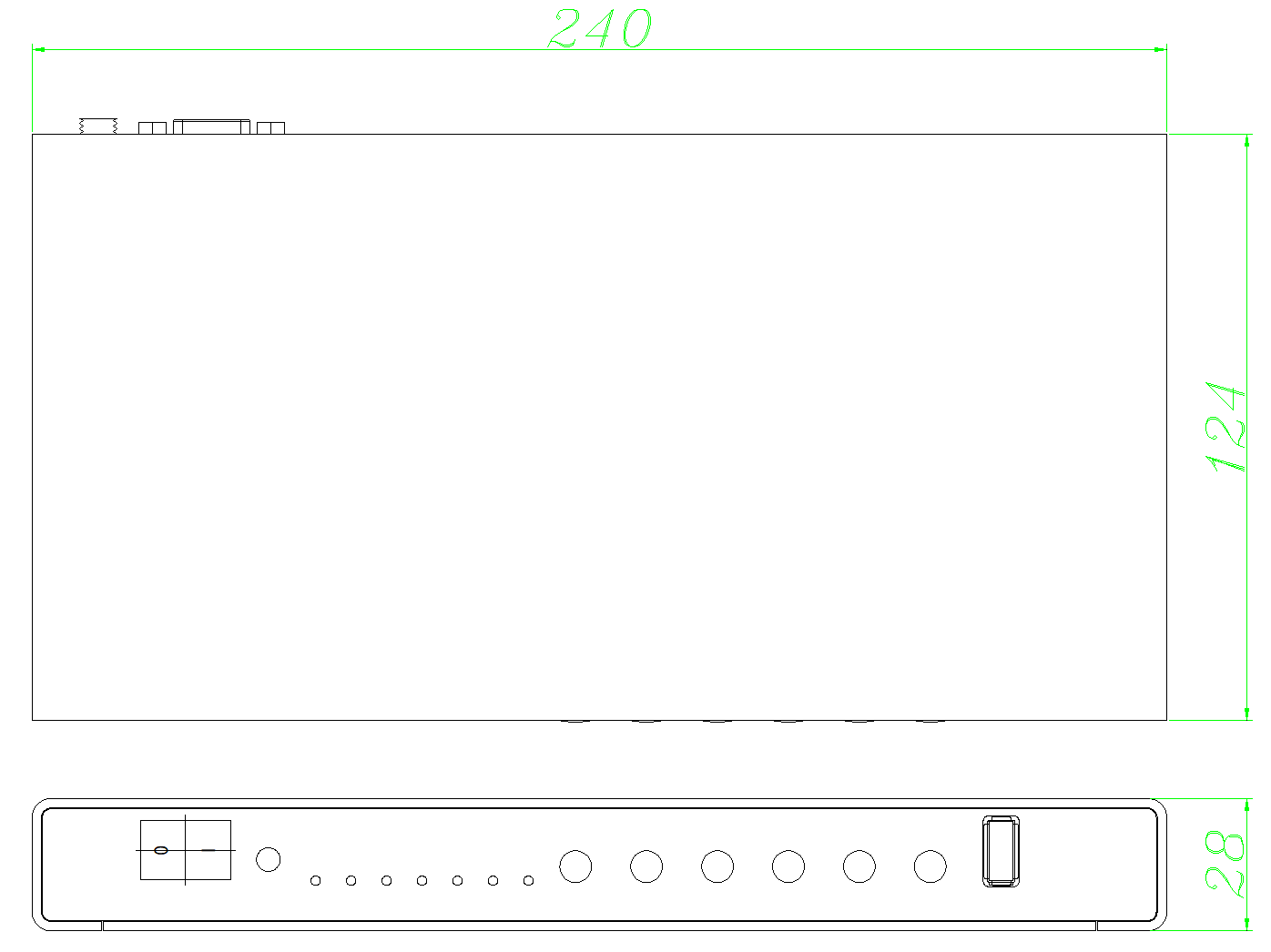

Размер продукта (мм)
