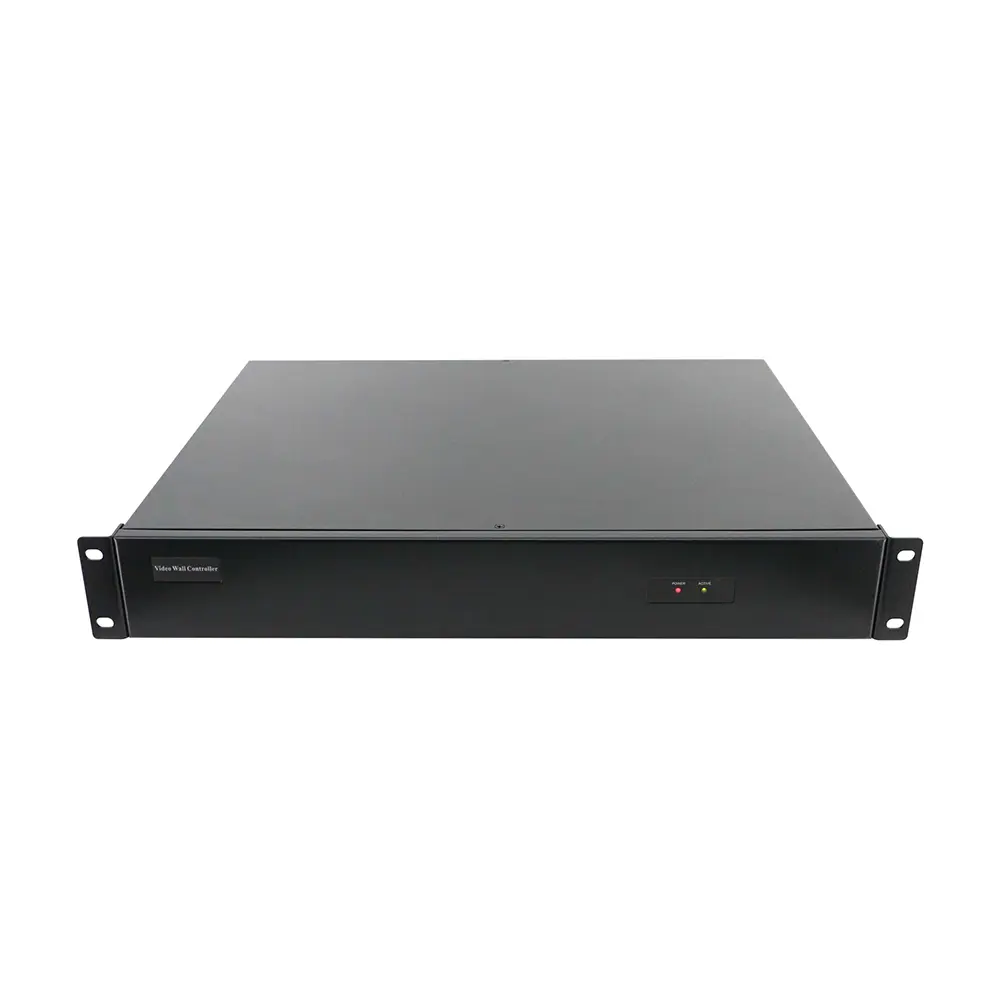

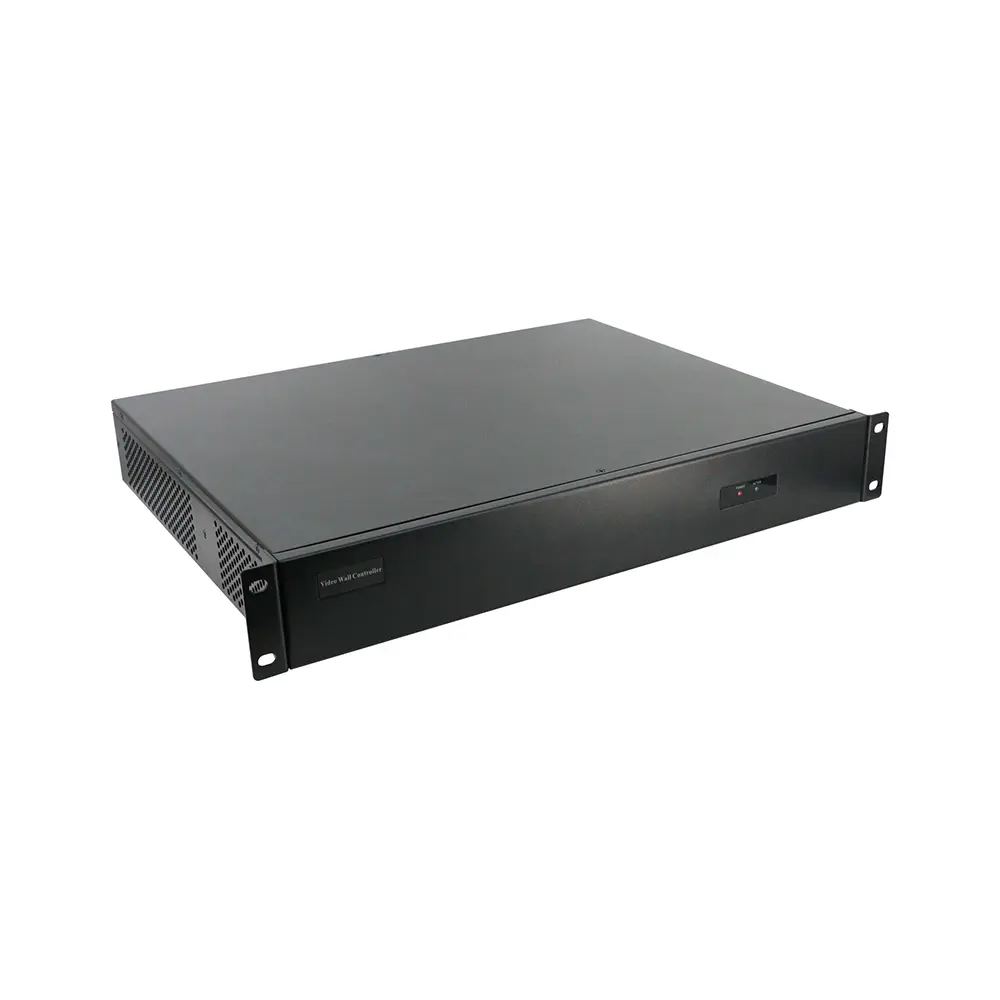

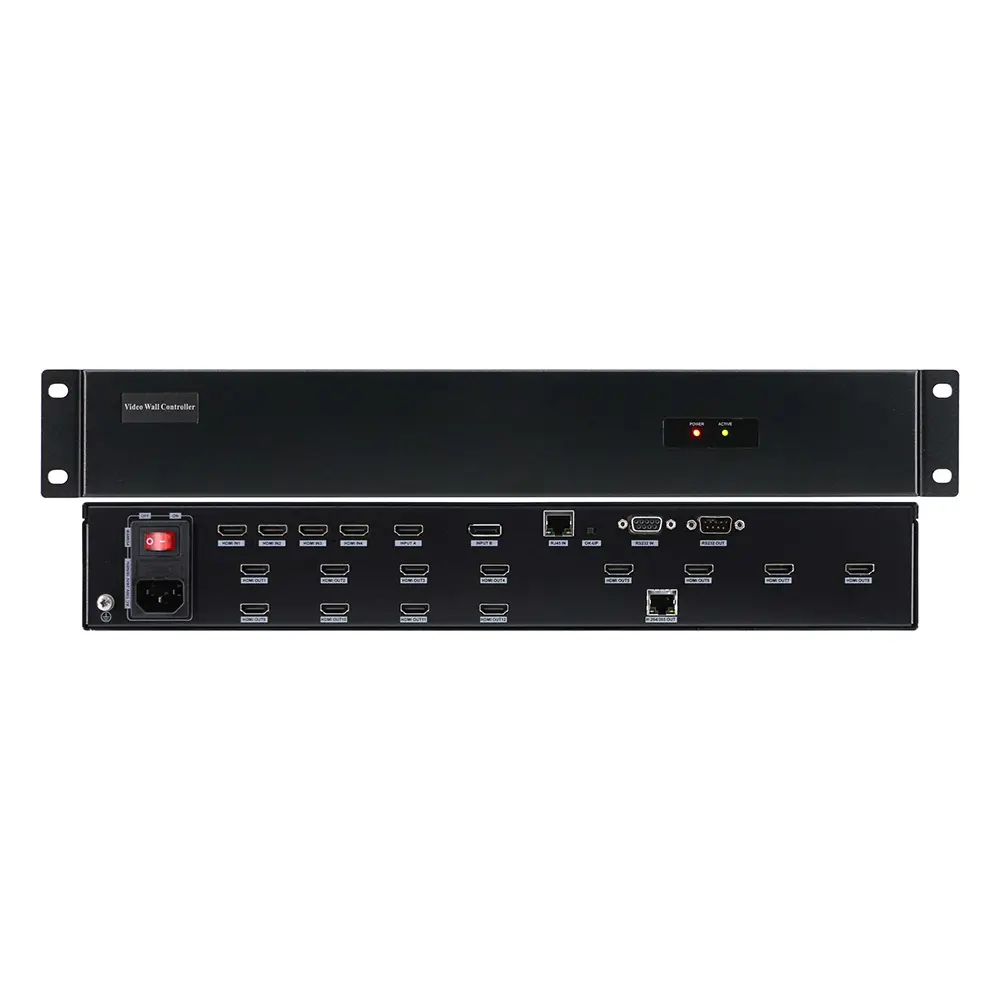

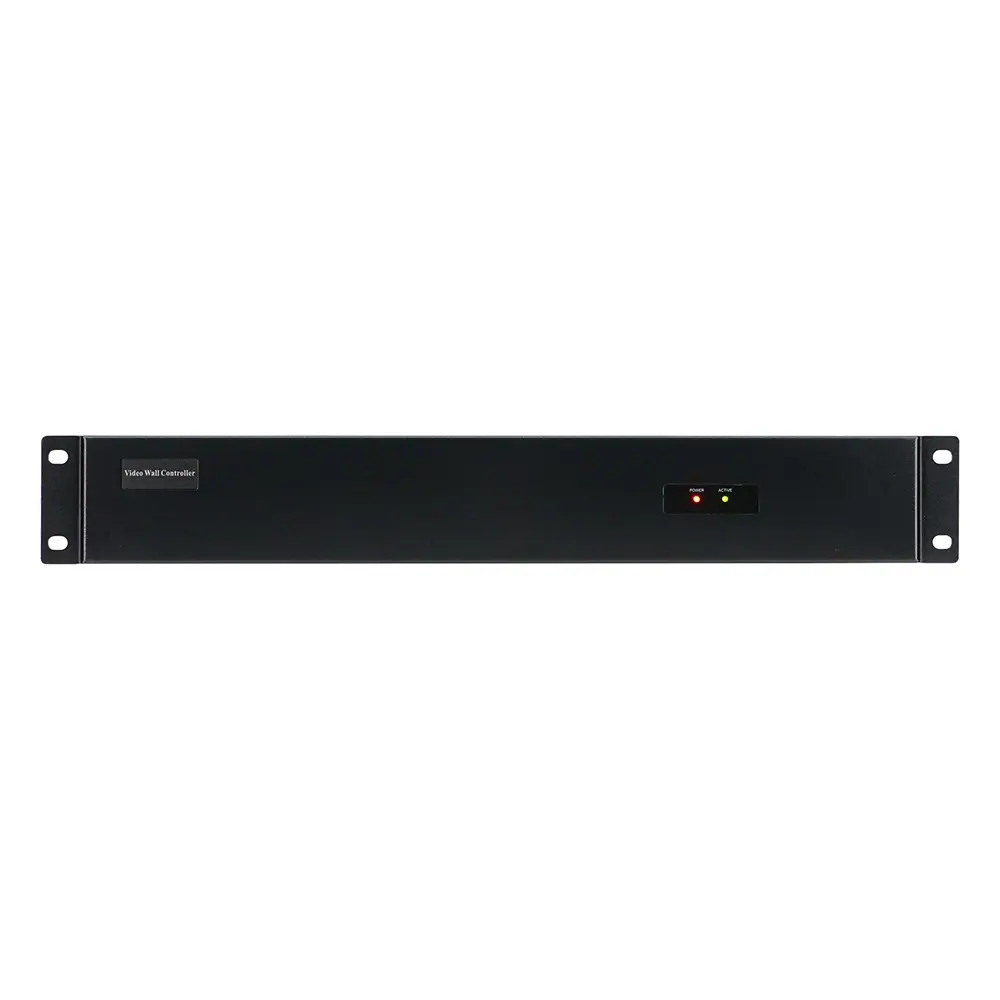

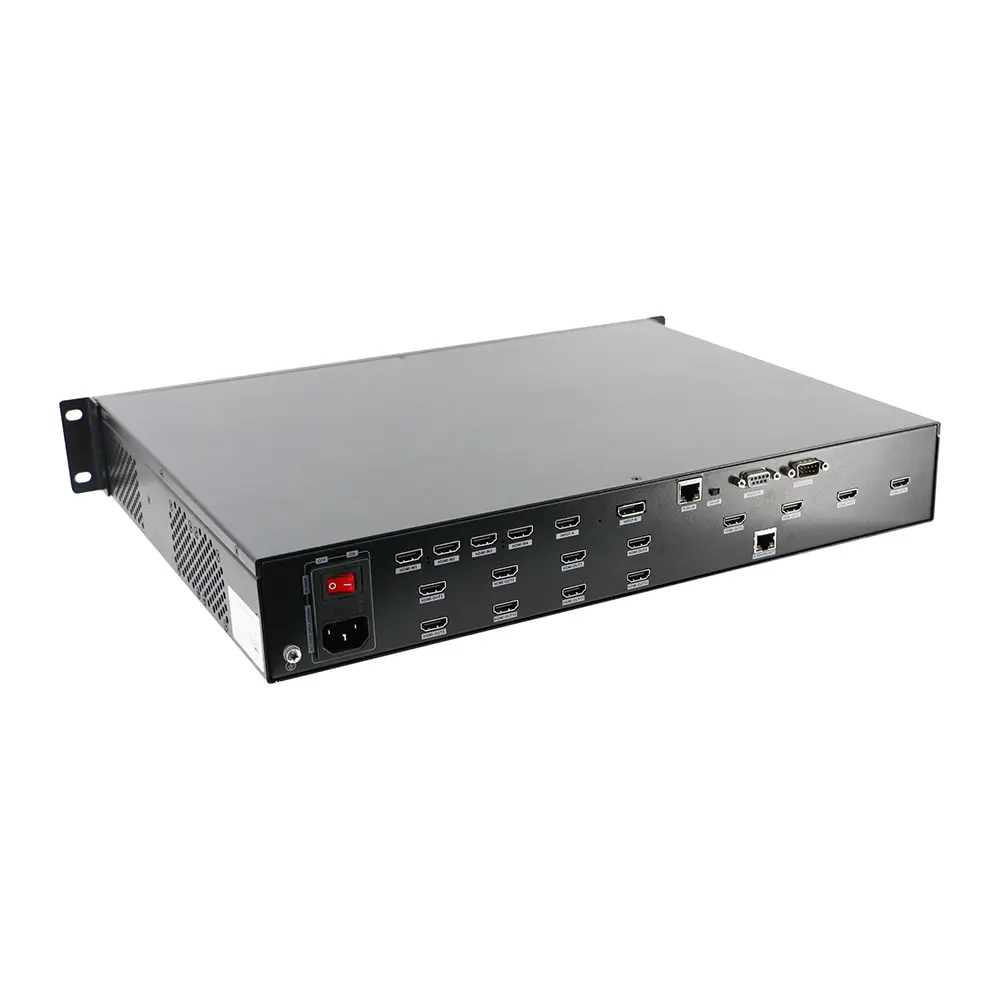

VPX-500P-4K

استفسر

مقدمة

It’s a high performance video processing workstation with pure hardware architecture for spectacular video wall displaying which can be employed in fields including education and research, government announcement, information publishing, exhibition and show, controlling and commanding center, security monitoring, etc. Advanced image processing technologies such as high definition video signal collecting, real time and high resolution digital image processing. It also employs large-capacity, high-speed FPGA and CrossPoint switch to ensure the real-time processing of all input signal and the consistency of the data, leading to no image delay, discretization, frame loss, which guarantee excellent video displaying.

الميزات

  • 1.5U fixed chassis

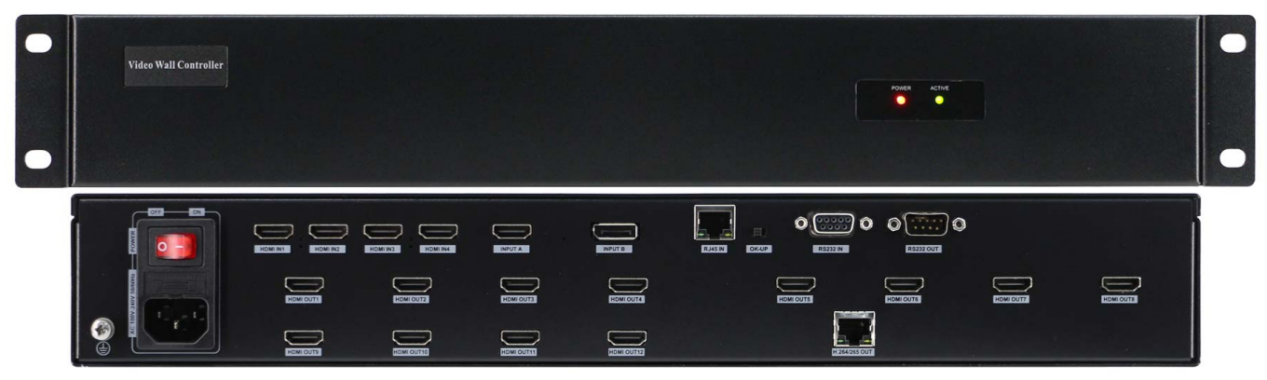

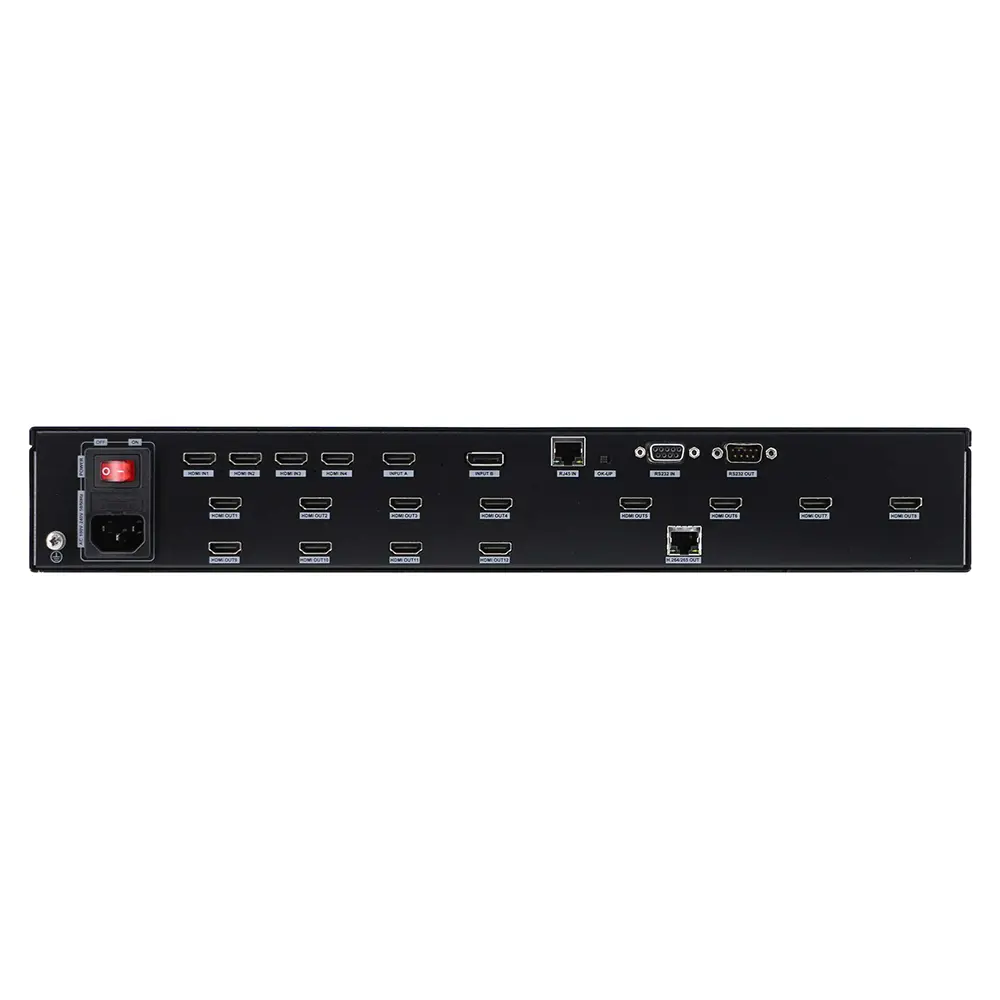

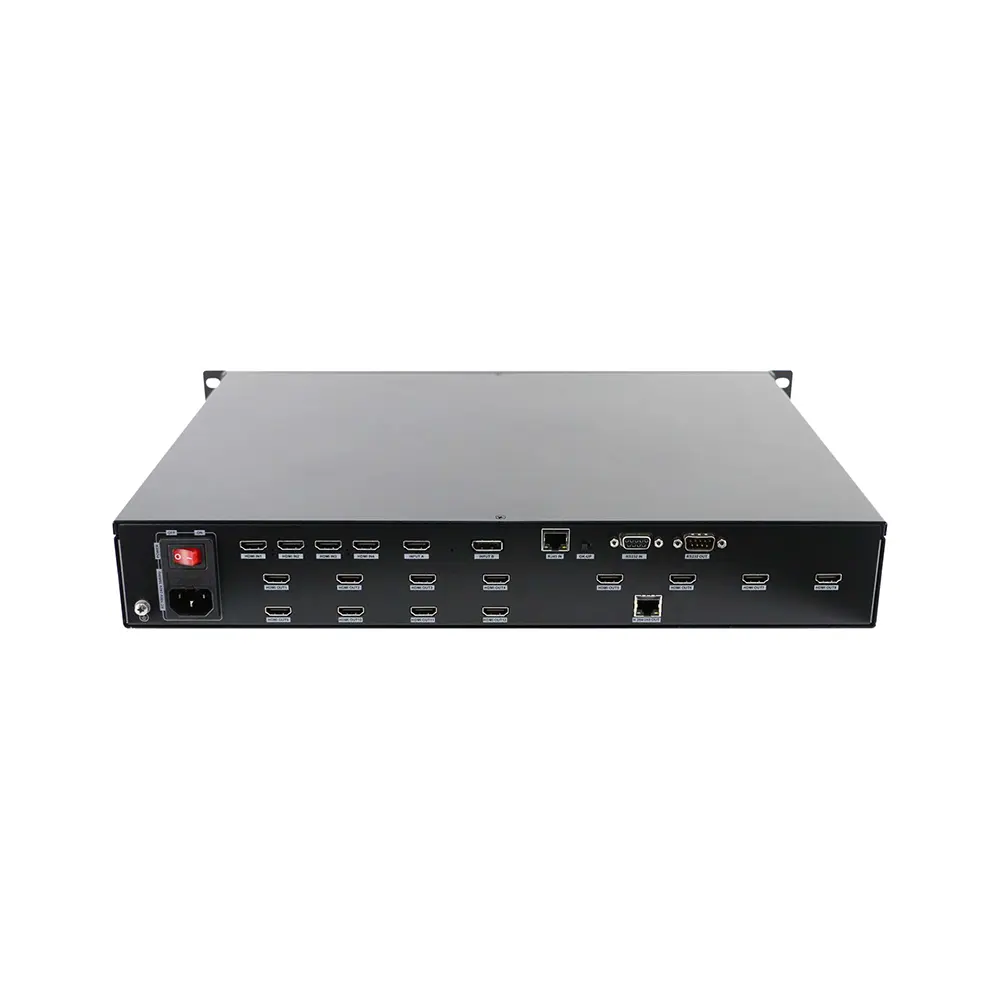

  • 4*1080P HDMI and 1*4K60 HDMI/DP inputs, 12*1080p HDMI outputs
  • Supports to open 2 windows on screen
  • Supports PIP, cross-screen, pure-hardware design
  • Supports up to Video wall groups management
  • Supports the PC software/ APP/ RS232 control
  • Supports input sources preview

المواصفات

Inputs 4*1080P HDMI and 1*4K30 HDMI/DP
Outputs 12*1080P HDMI outputs
التحكم RS232, LAN, APP
البُعد 410*350*72mm
الوزن 7kg
Power Supply 100VAC–240VAC 50/60Hz
الاستهلاك 50W
Working Humidity 10%-90%
Temperature -10℃-50℃
Storage -20℃-75℃

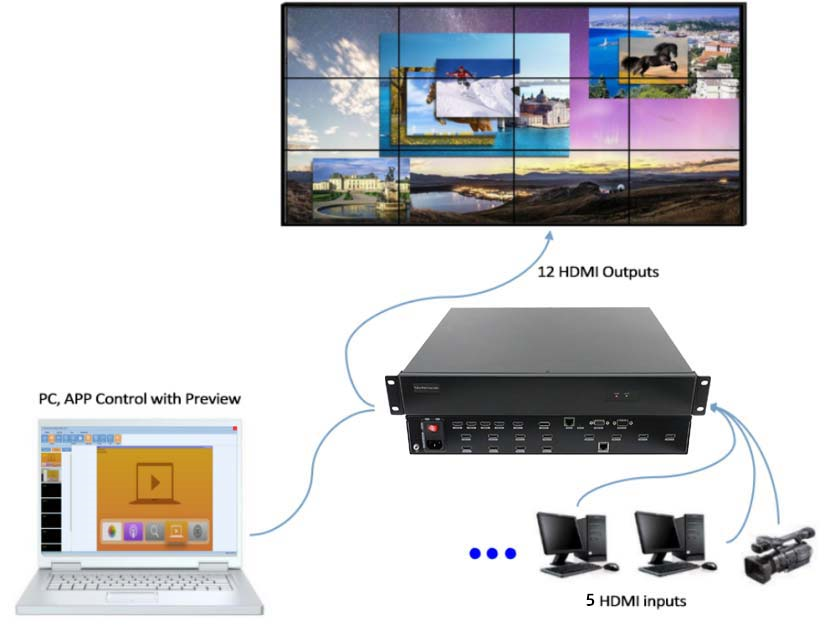

مخطط التوصيل
