Introduction

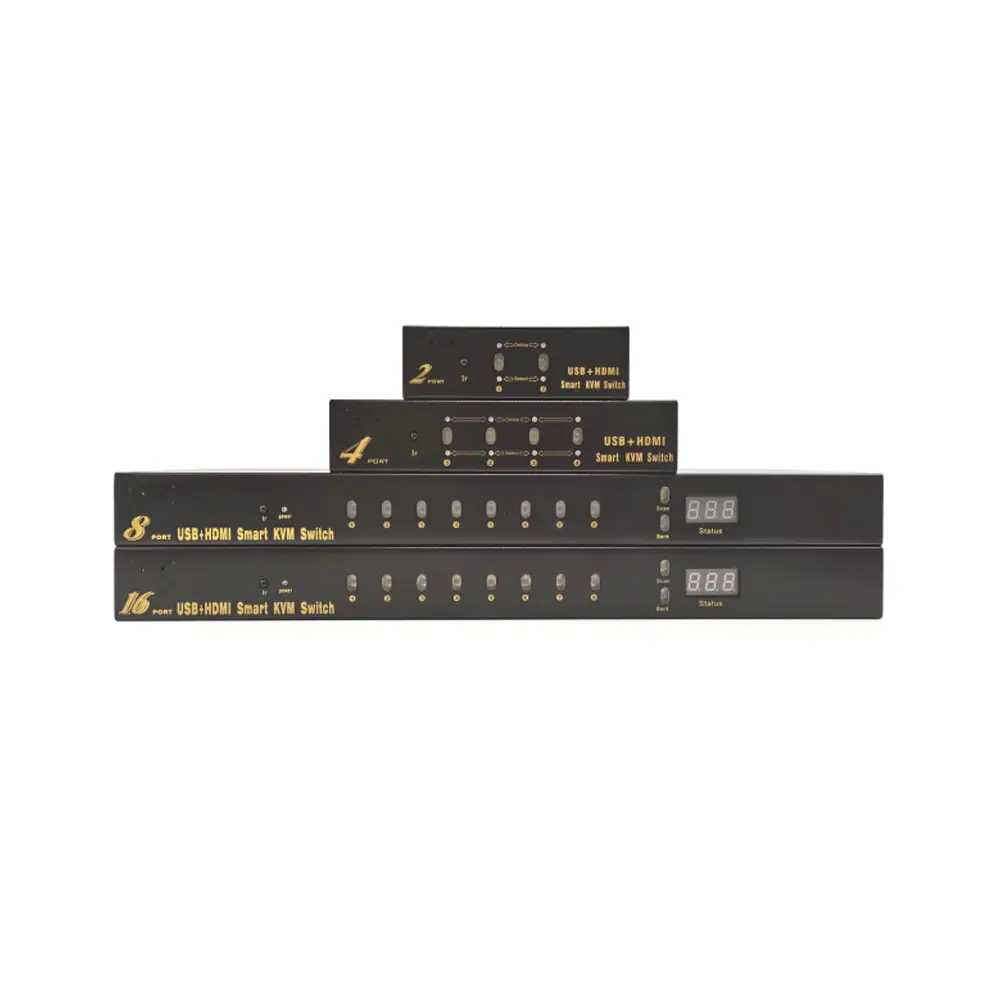

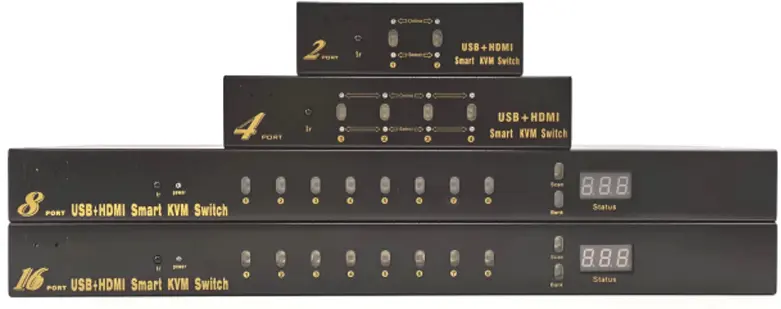

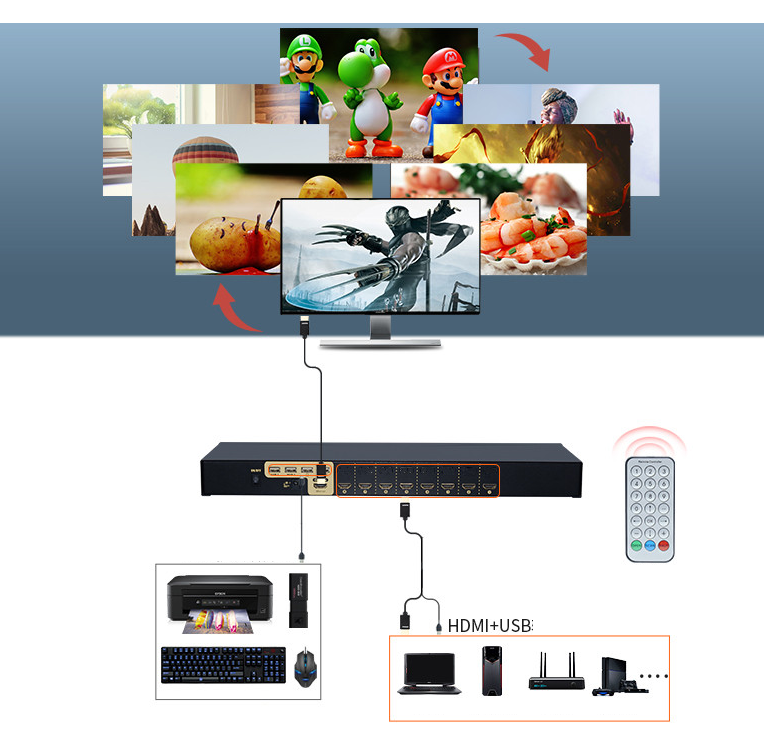

This 2/4/8/16 HDMI+USB inputs to 1 HDMI output with 4 USB ports switcher, support the IR remote or the push button control, the HDMI resolution up to 4K30. It can be Widely used in the office, teaching, entertainment, military, information platform and so on.
Features
- Supports 2/4/8/16 HDMI inputs
- Supports 1 HDMI output with4 USB ports
- Resolution up to 4K30
- Supports HDMI 1.4, HDCP compatible
- Supports the IR remote and push-button control
Specification
| P/N | 21HR | 41HR-C | 81HR-C | 161HR-C |
| Input | HDMI+USB | HDMI+USB | HDMI+USB | HDMI+USB |
| Input port number | 2 | 4 | 8 | 16 |
| Console | USB-AF*4 HDMI | USB-AF*4 HDMI | USB-AF*4 HDMI | USB-AF*4 HDMI |
| HDMI Version | 1.4 | 1.4 | 1.4 | 1.4 |
| HDMI Resolution | 4K*2K@30Hz | 4K*2K@30Hz | 4K*2K@30Hz | 4K*2K@30Hz |
| Switch Mode | IR, button | IR, button | IR, button | IR, button |
| Dimension(mm) | 130*80*45 | 200*80*45 | 440*150*45 | 440*150*45 |
