Introduction

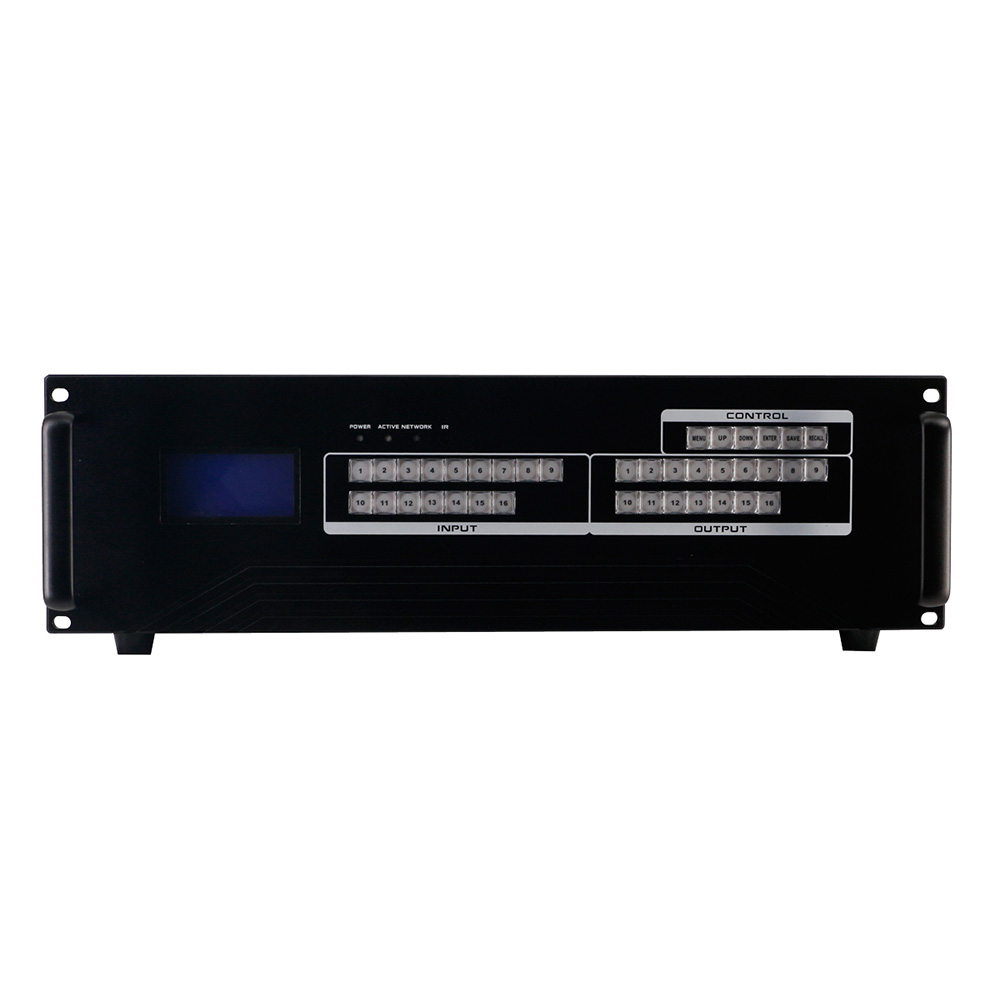

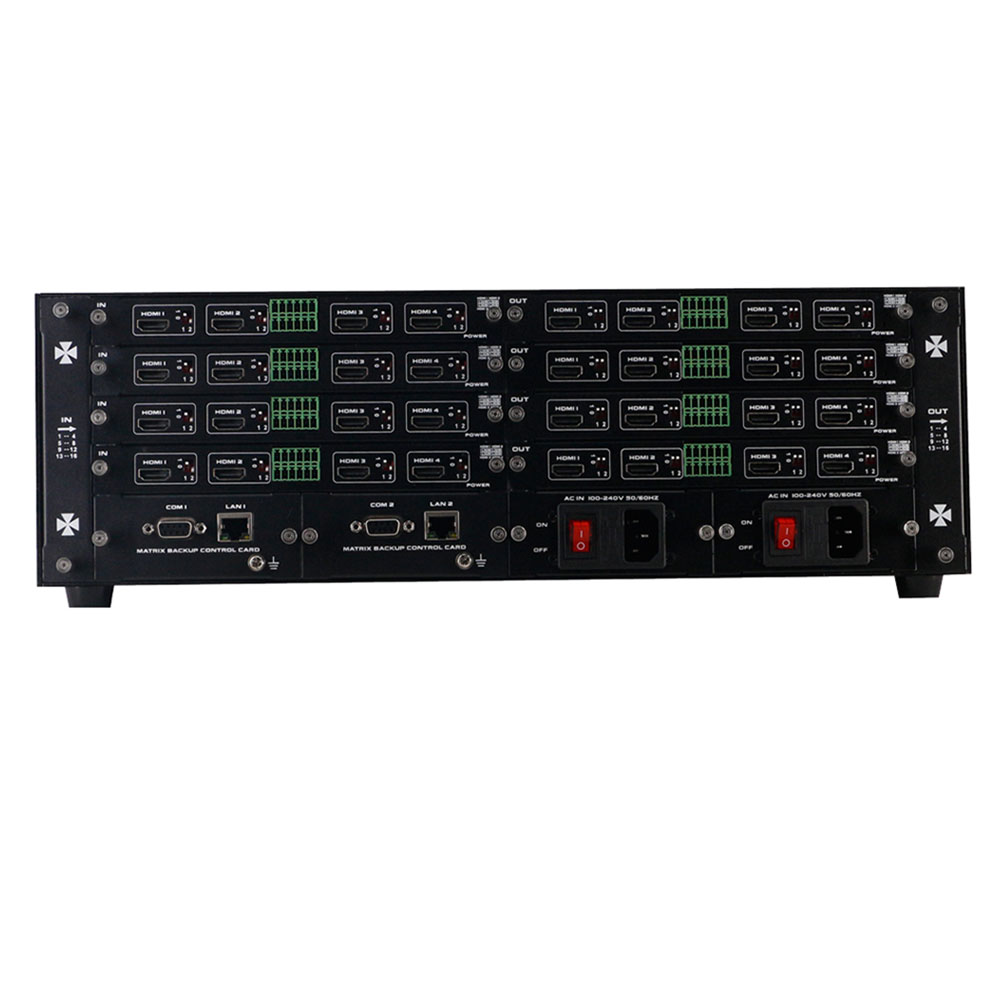

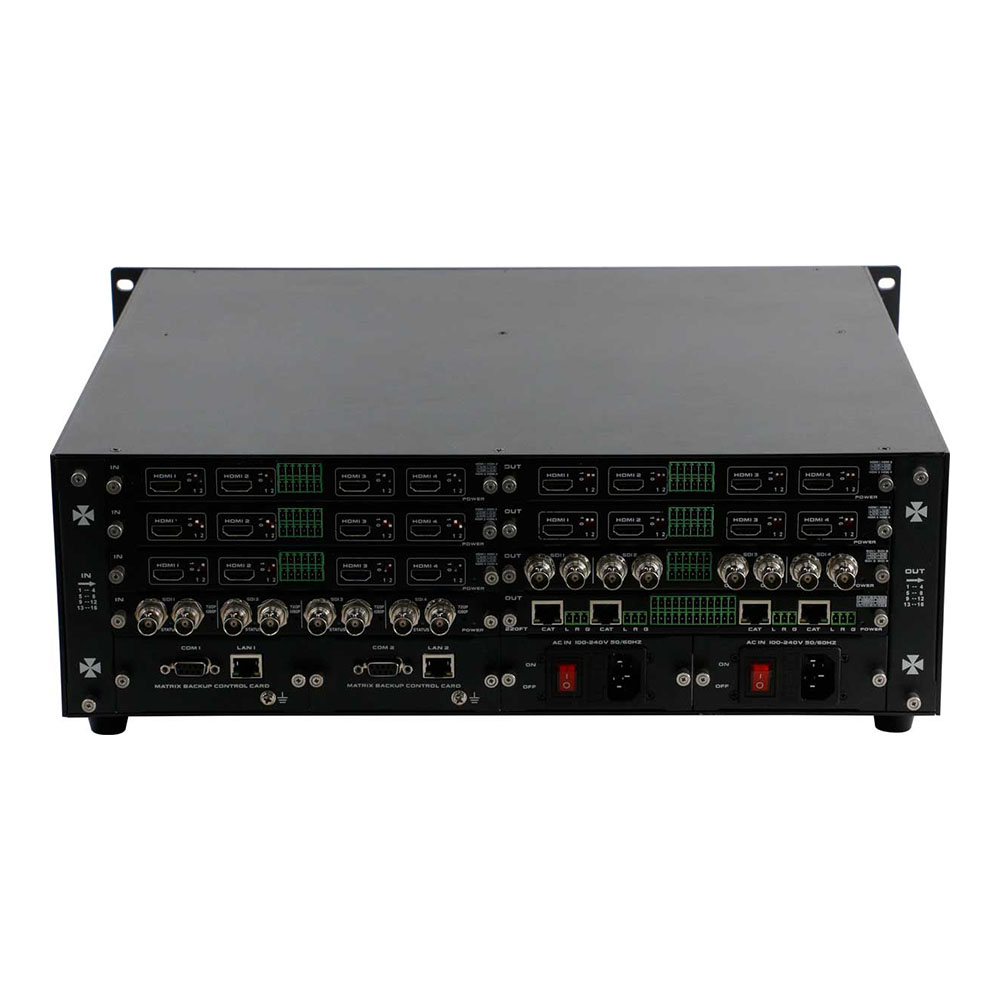

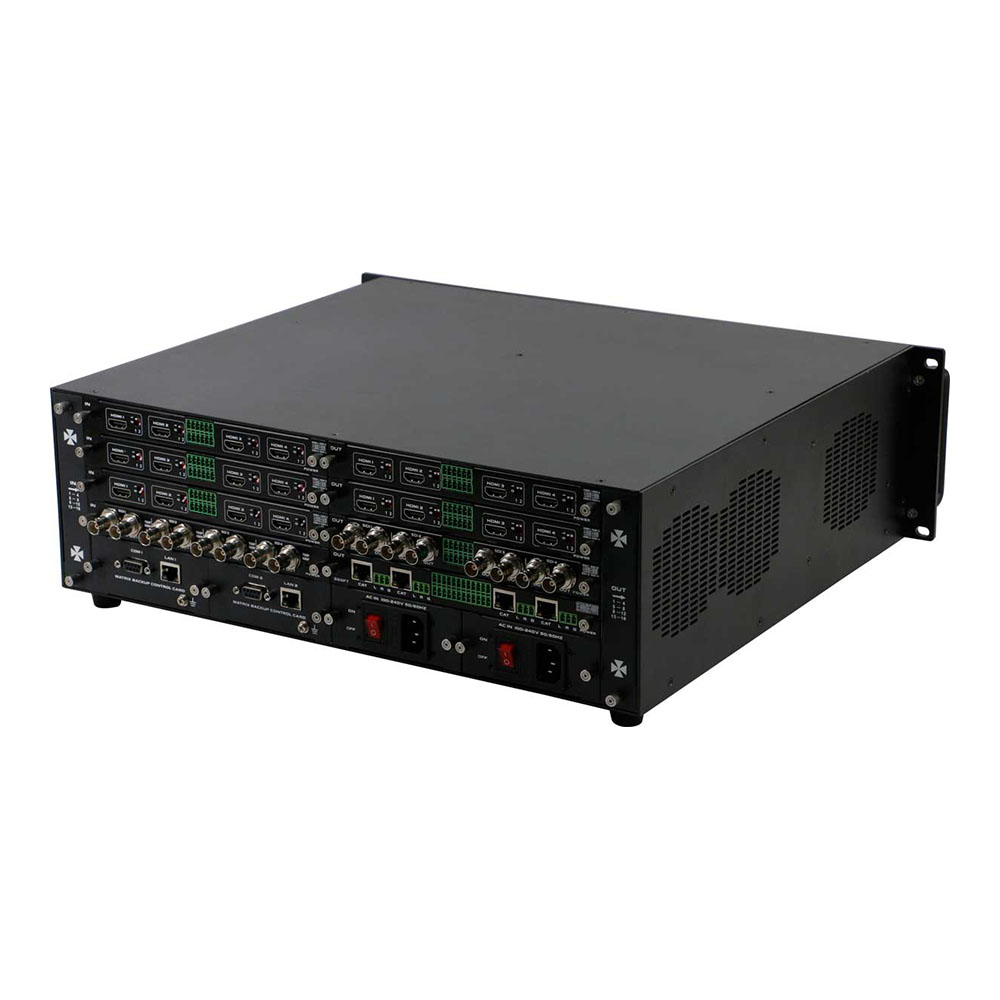

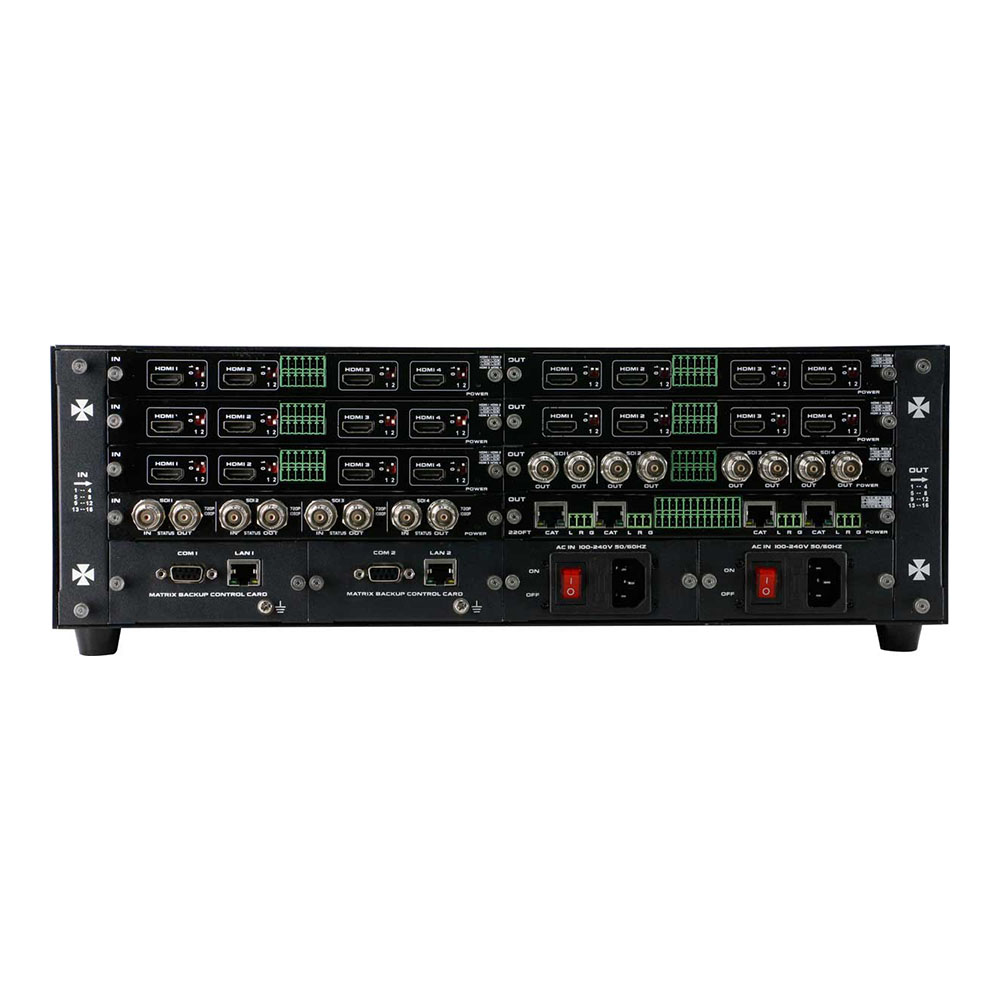

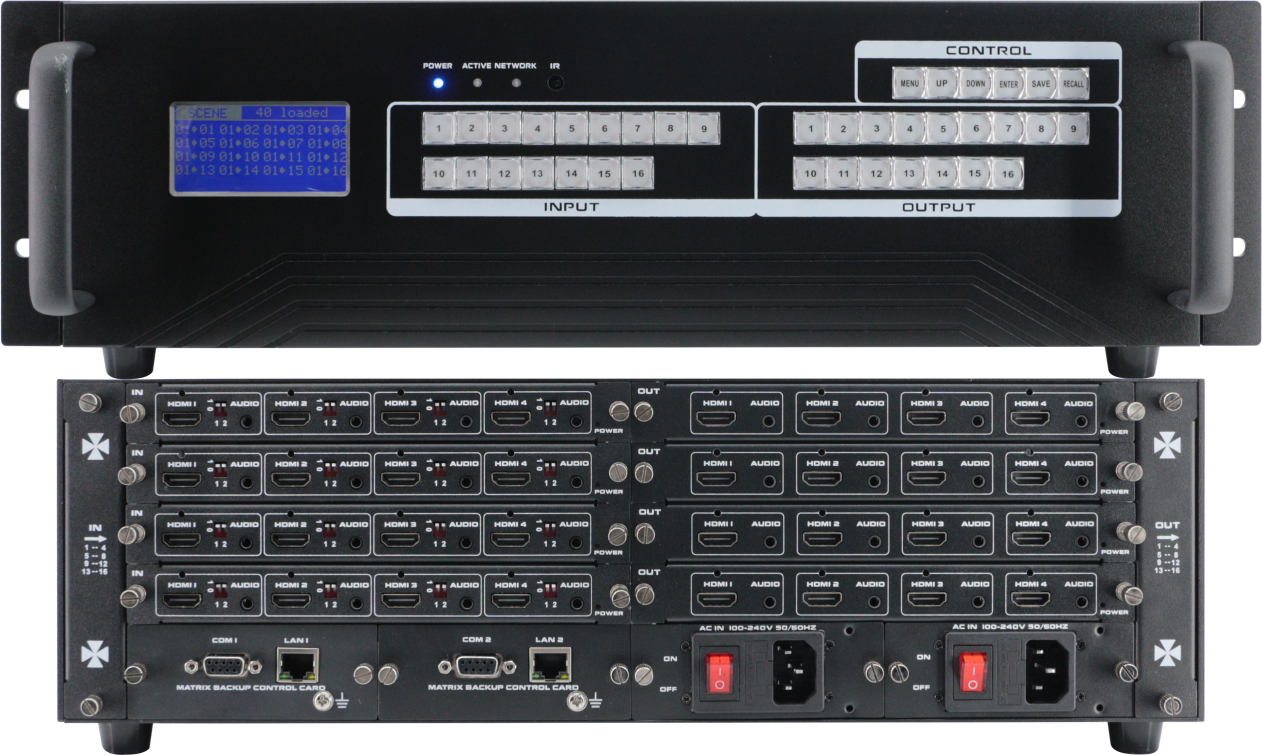

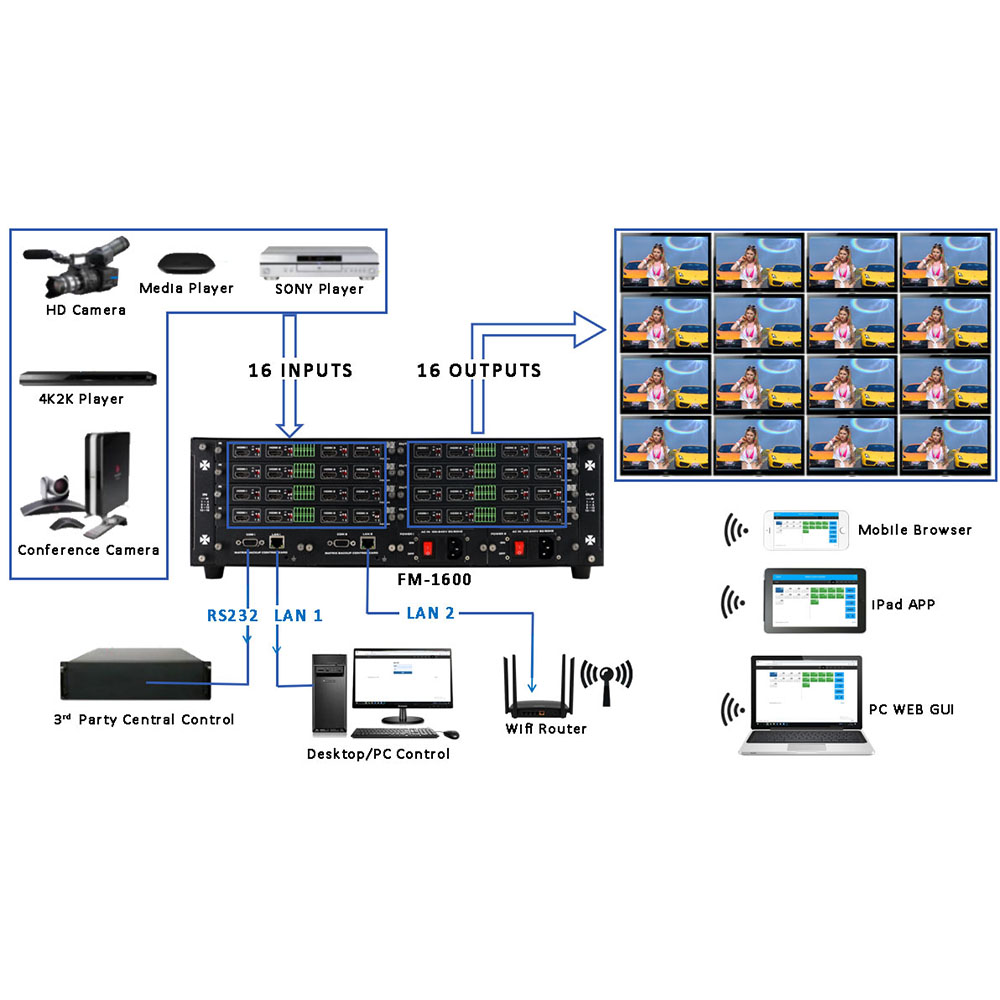

This is a modular matrix switcher, with 4 input slots and 4 output slots, so it can support maximum 16 inputs and 16 outputs. It can support variety of interfaces including DVI, HDMI, HD Base T, Fiber Optic, 3G-SDI. The single channel signal switching speed can reach 12.5Gbps, and the main board is using four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make sure the image high fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the internal data switch has strong capacity of resisting disturbance, long continuous and stable working ability. Supports 7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and the 3rd party control by RS232 control commands.
These matrix switchers have been widely used in the conferencing applications, radio & television studios, multimedia conferencing hall, large screen display projects, command and control centers.
Features
- Modular chassis, with 4 input slots and 4 output slots
- 4-port input and output card
- Supports 1080P, 4K30 in 4K60 cards
- Supports DVI-I/ HDMI/ 3GSDI/ HD Base T/ Fiber
- Support Video wall and seamless switching with the 1080P and 4K60 cards
- Support 3.5mm audio embedder and de-embedder function
- Support up/down scaling function via the DIP switch
- Support dual LAN and RS232 ports for redundancy
- Front buttons with background lights, easier to operate at any time
- Support auto saving protection and auto recovery function while power cut off.
Specification
| Model | FM-1600 |
| Description | 16×16 modular matrix switcher |
| Input | 4-port input, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber |
| Output | 4-port output, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber |
| Protocol Standard | Supports HDMI1.4 , HDCP1.4, HDMI2.0. HDCP2.2 |
| Color Space | Support RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 |
| Resolution | 640×480—3840×2160@60Hz(VESA ), 480i—4K@60Hz(HDTV ) |
| Control | iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light |
| Power | AC: 110V—260V 50/60Hz |
| Consumption | 17W (No Cards) |
| Dimension | 3U, 482(W)*383.2(D)*133.4(H)(mm), Packing size: 560(W)*510(D)*250(H)(mm) |
| Weight | 13kg/ 28.66lbs (No Cards) |
| Work Temperature | 0℃ ~50℃ |
| Storage Temperature | -20℃ ~55℃ |

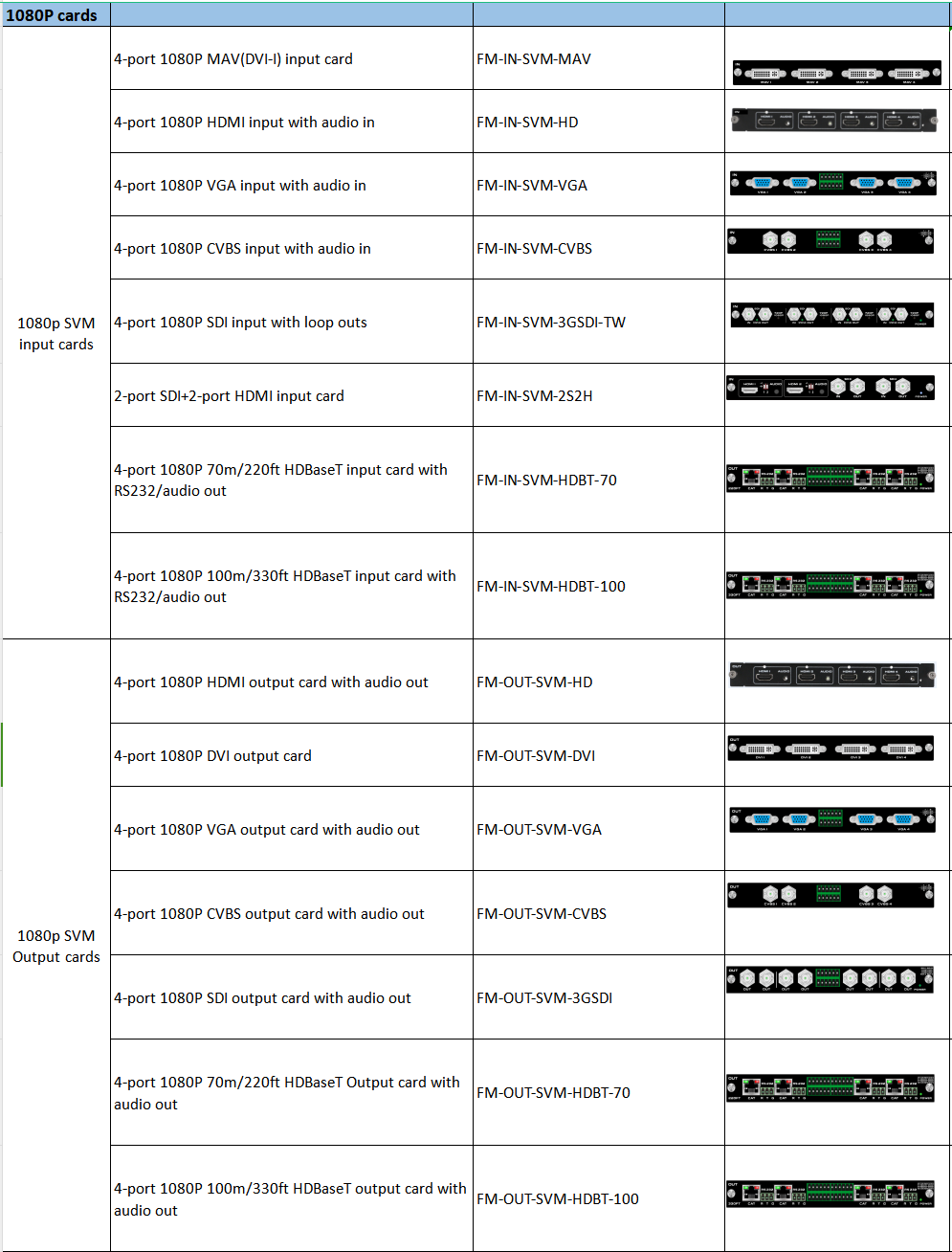

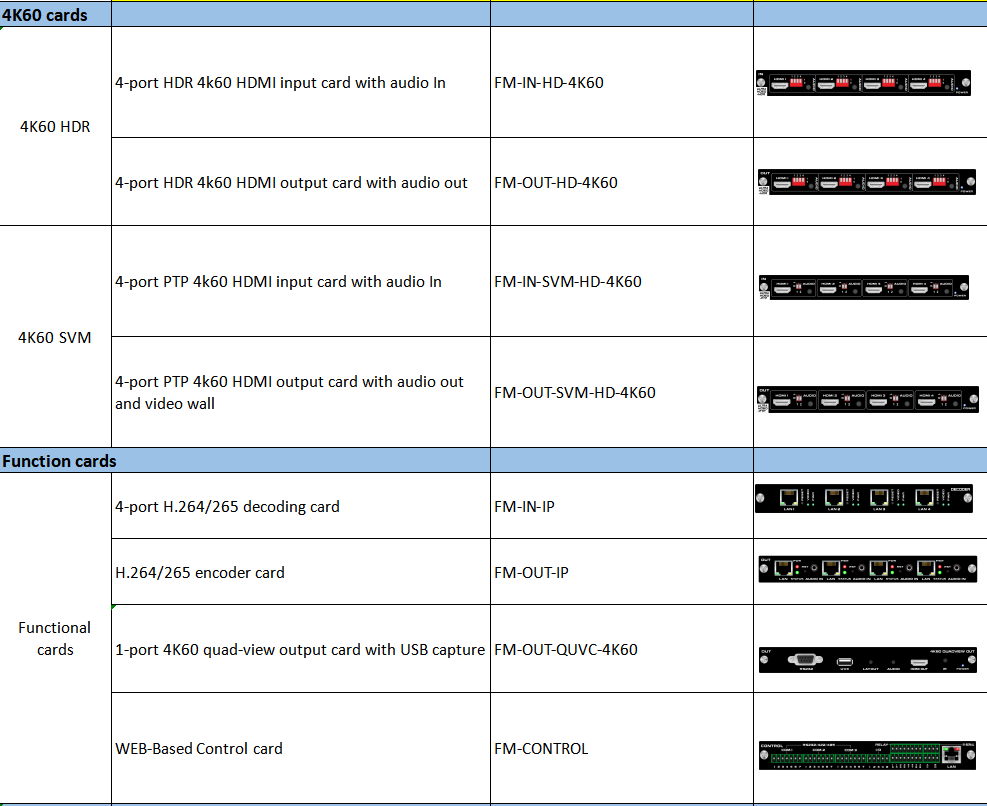

Input and output card

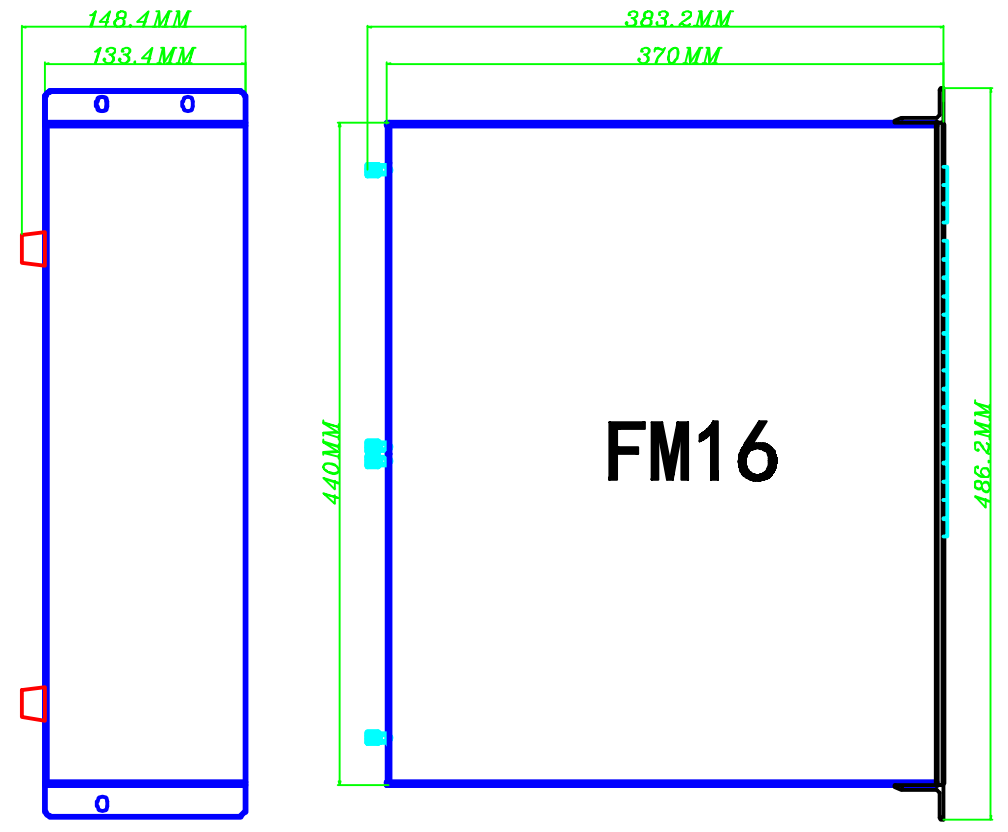

Matrix Size Drawing(482*133.4*383.2)mm(W*H*D)
