Introduction
This 4K60 4:4:4 AV over IP system provide the flexible, powerful, and scalable solution at resolutions up to 3840 x 2160@60Hz 4:4:4. They allow 4K UHD sources to be switched and distributed over standard gigabit Ethernet networks, providing complete end-to-end streaming systems. Audio, video together with IR, and USB signals can be routed separately or as a whole throughout the matrix system. Encoders can be used with decoders to function video wall up to 16 x 16. Both of them have the capacity to handle and output up to 7.1 channel audio, allowing you to enjoy the finest sound. HDCP 2.2 compatible. The distance can up to 330ft (100m) over a single Cat 5e cable or above. Flexible control options are offered — Windows PC Console, App or WEB GUI control.
They are the perfect solution for any low latency and signal routing applications. Common applications include homes, classrooms, conference rooms and broadcasts.
Features
- 4K UHD AV signals via standard gigabit
- Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:4:4.
- Supports streaming resolutions up to 3840 x 2160@60Hz 4:4:4.
- Video wall function and up to 16 x 16.
- Supports HDR10 and Dolby Vision.
- Supports CEC commands to power on and off the display, as well as CEC Frame.
- Supports PCM 7.1, Dolby Atmos, DTS HD Master and DTS:X.
- Analog audio embedding and de-embedding. S/PDIF audio return
- HDMI ARC audio return
- HDCP 2.2/2.3 compliant.
- Flexible routing policies, allowing audio, video, USB, IR and RS232 signals
- Distance up to 328ft/100m over a single Cat 5e cable or above.
- 1 frame latency.
- Supports bi-directional serial communication and IR pass-through
- Supports bi-directional , allowing control of remote
- Dual USB engine, USB Device2 for high performance USB 2.0, USB Device1 for KM
- Supports PoE or DC power adapter
- Fit in/stretch out video wall, and rotate180°and 270°clockwise
- Supports DHCP by default(AutoIP if there’s no DHCP server in the system.
- Flexible control options — Windows PC Console, APP, WEB GUI
- Supports communications protocols of Telnet, SSH, HTTP,HTTPS.
- Supports Auto IP(zeroconf), DHCP or static IP address settings
- Supports communications protocols such as H.264, TCP/IP, Telnet, UDP and IGMP

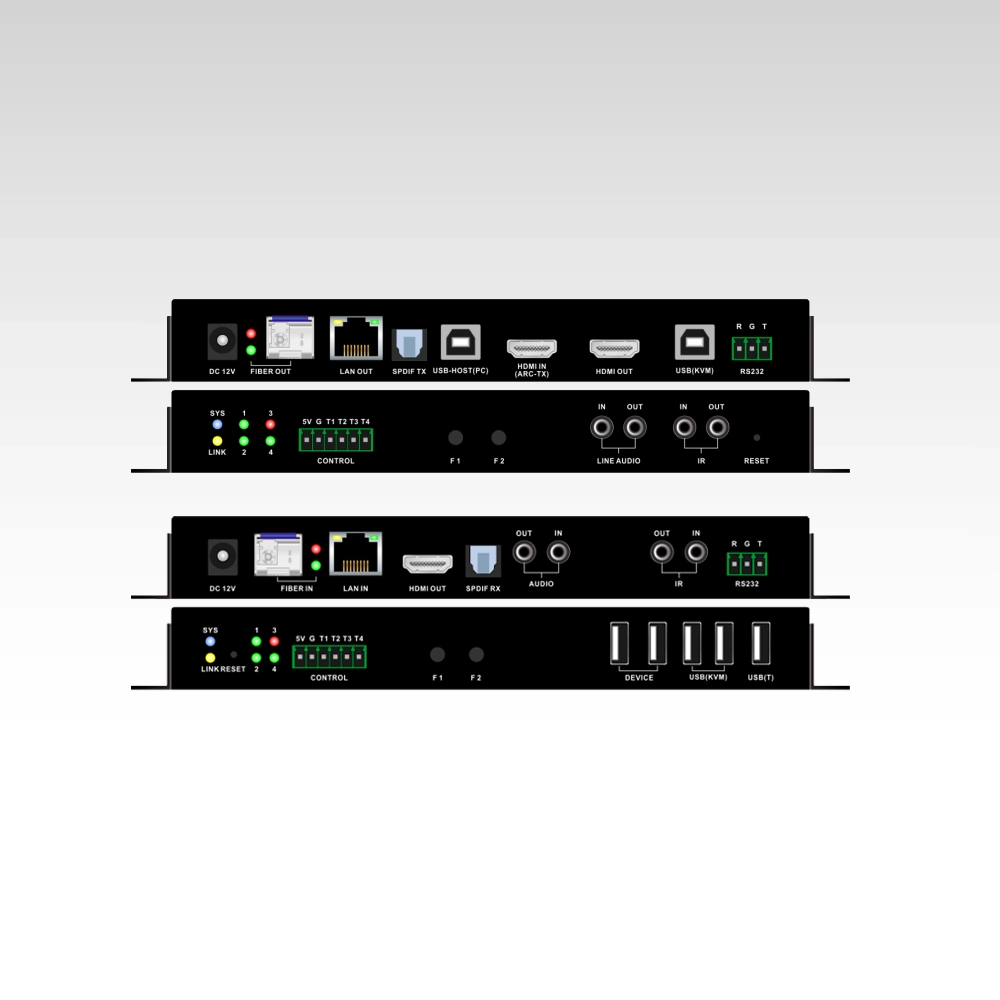

Specification

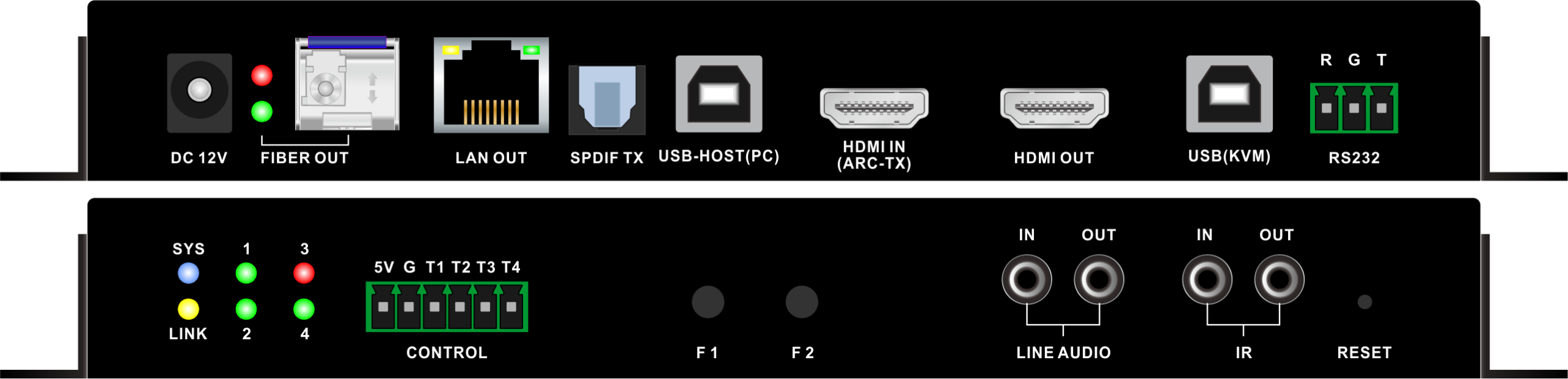

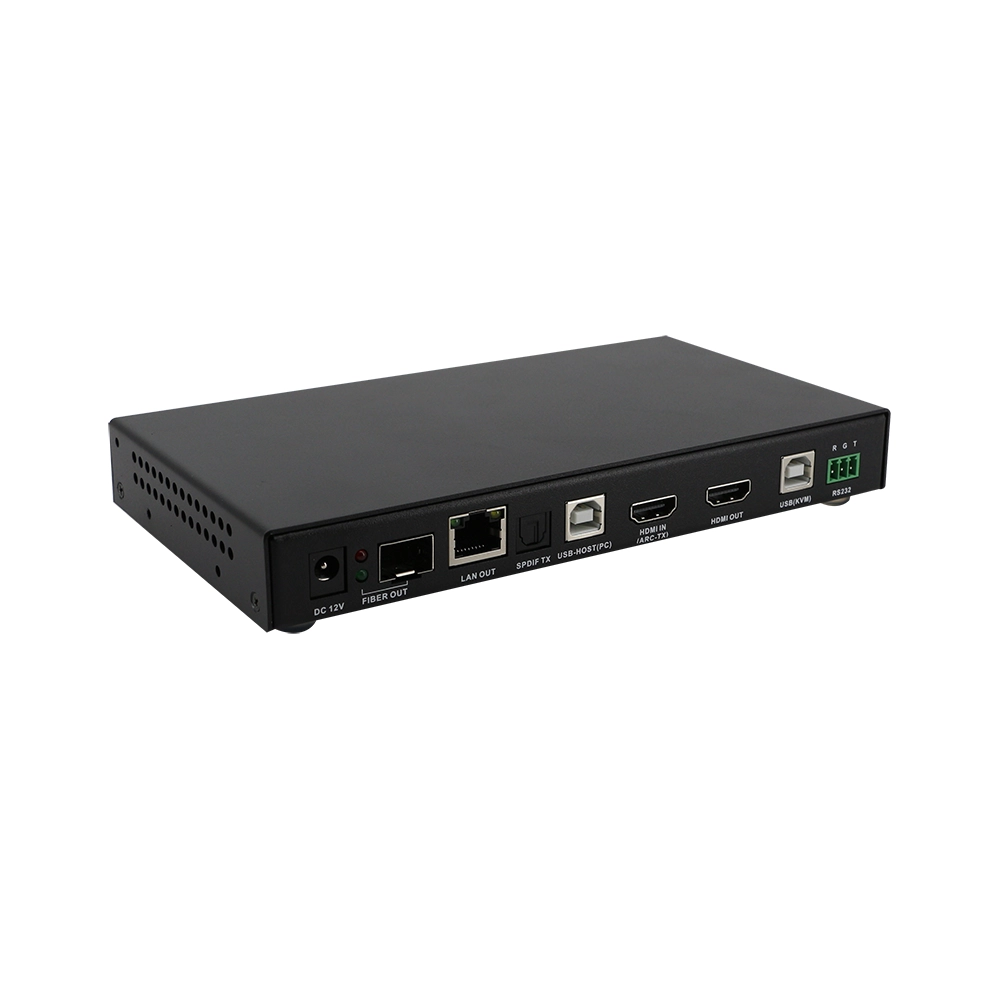

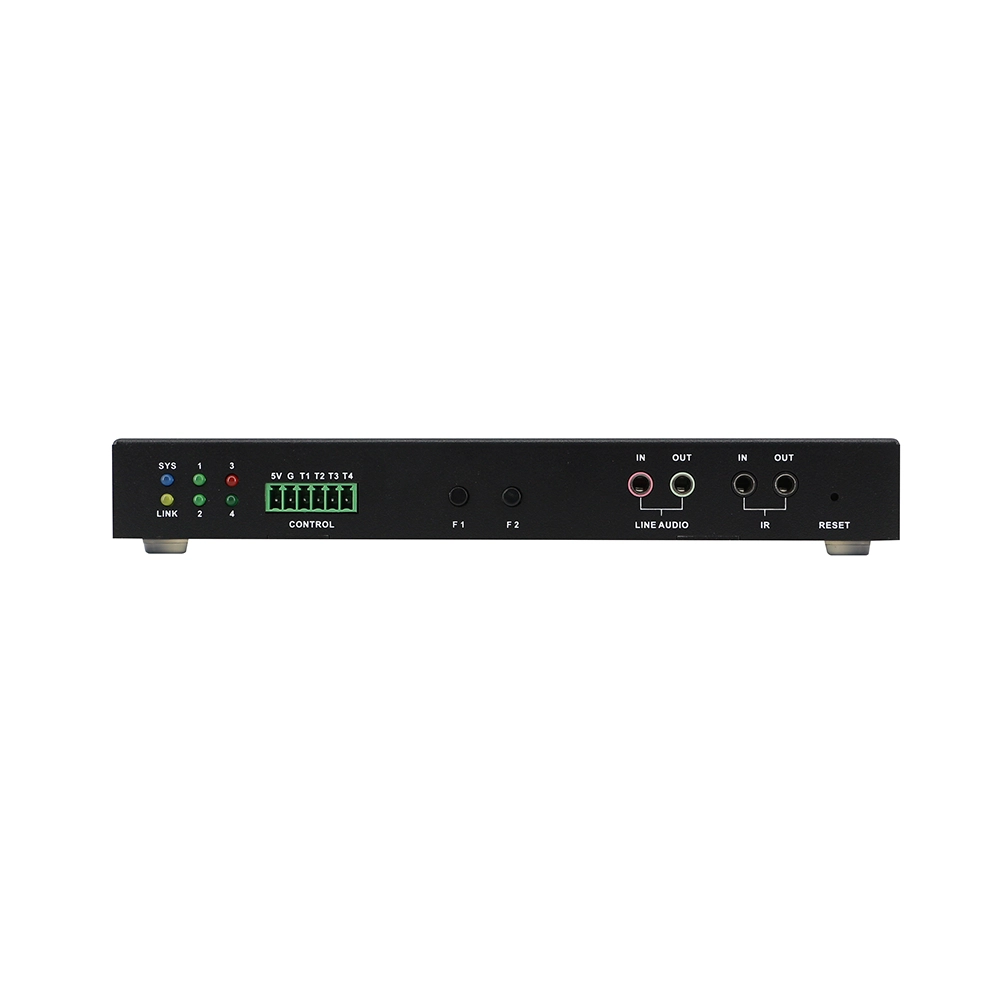

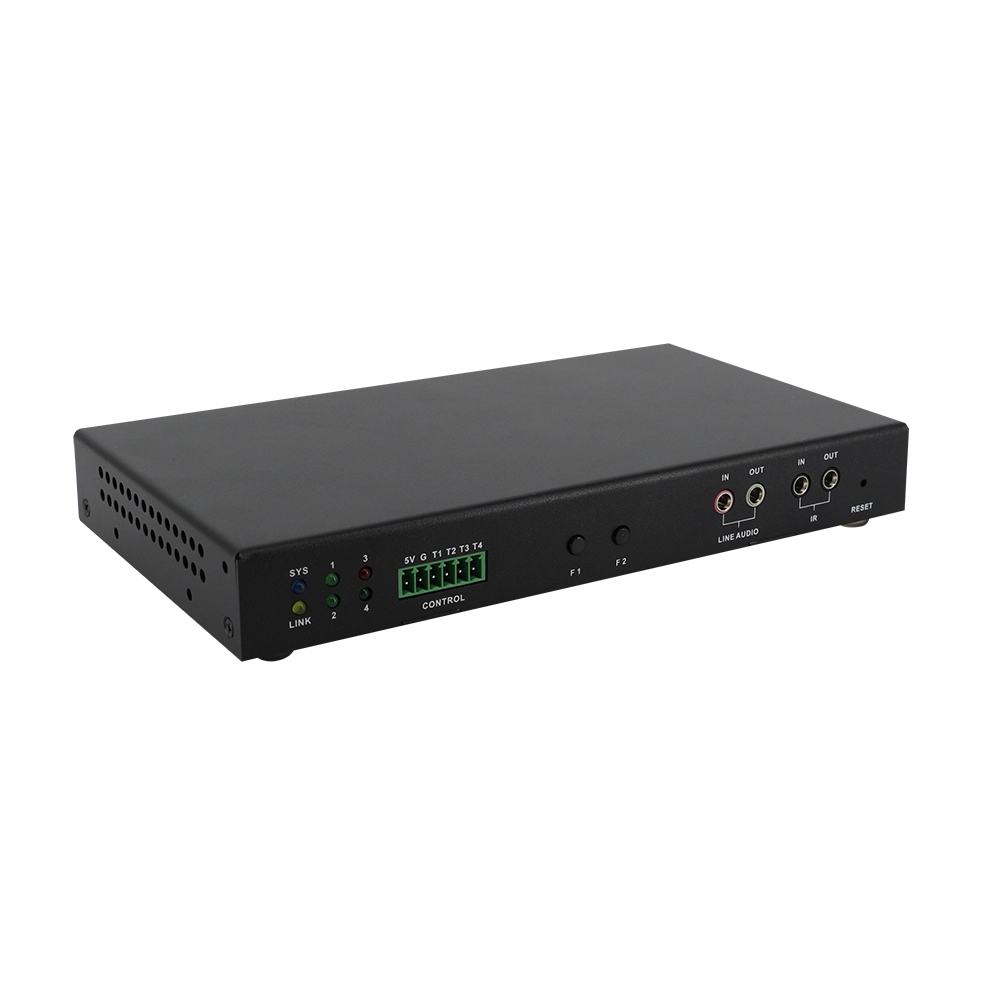

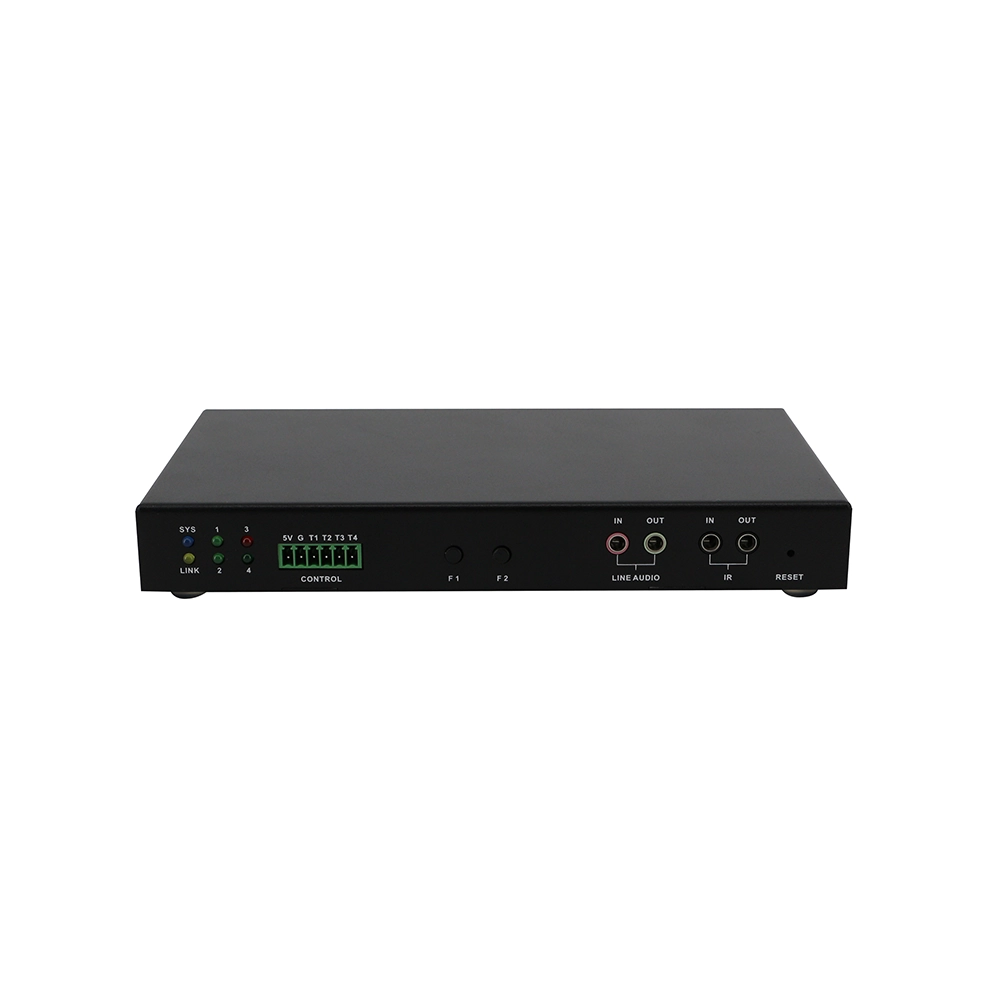

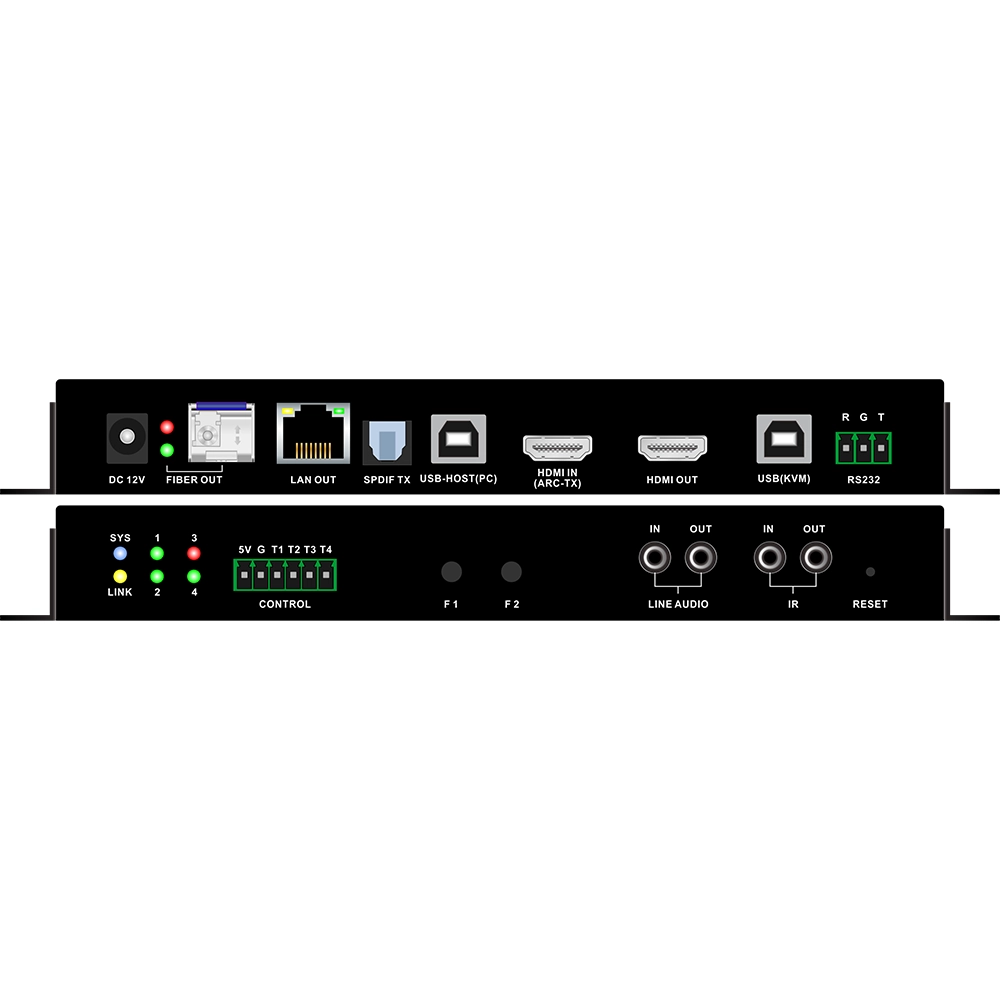

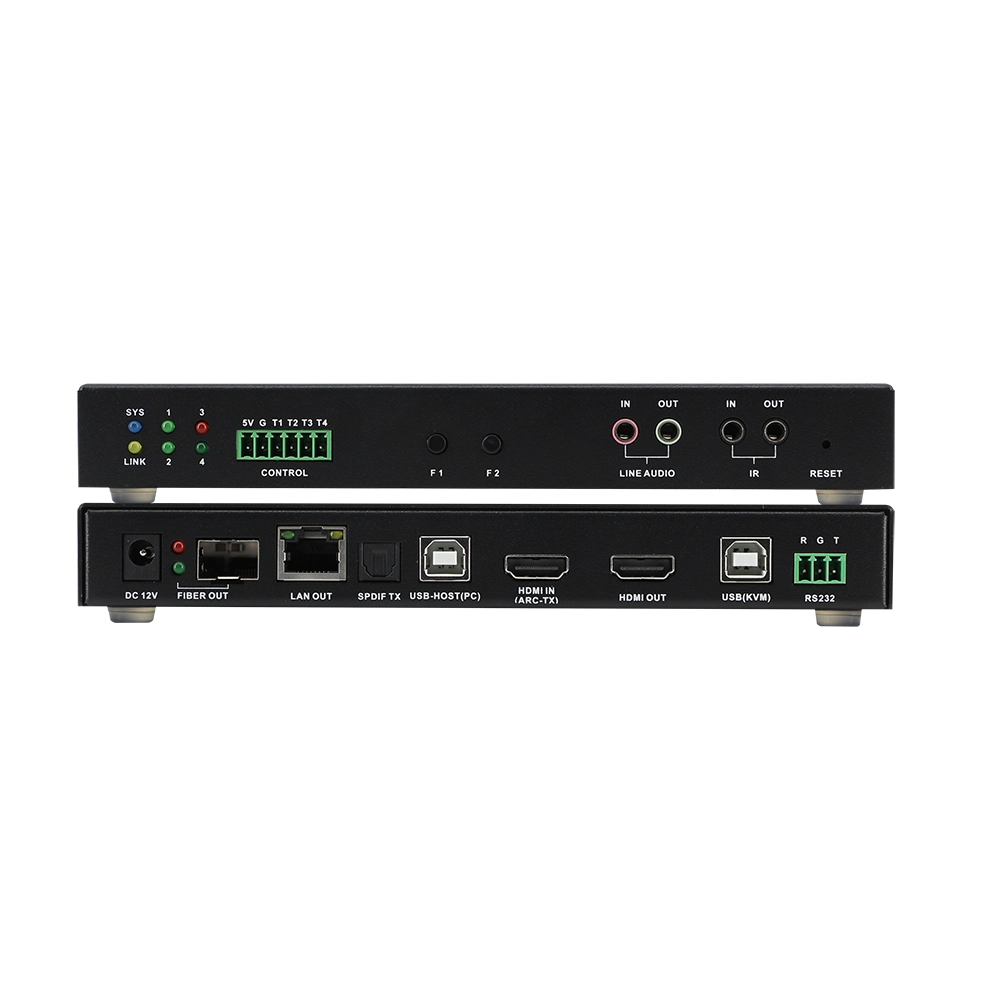

Encoder/Transmitter
| Video | |
| Input Port | 1 x female HDMI type A (19 pins) |
| Input Video Type | HDMI 2.0, HDCP 2.2/2.3 |
| Input Resolution | 3840 x 2160p@24Hz 4:4:4,
3840 x 2160p@30Hz 4:4:4, 3840 x 2160p@50Hz 4:4:4, 3840 x 2160p@60Hz 4:4:4, 640 x 480p@60Hz, 720 x 480p@60Hz 1280 x 720p@60Hz, 1920 x 1080i@60Hz, 1920 x 1080p@60Hz, 720 x 576p@50Hz 1280 x 720p@50Hz, 1920 x 1080i@50Hz 1920 x 1080p@50Hz, 1920 x 1080p@24Hz 1920 x 1080p@25Hz, 640 x 480@60Hz, 800 x 600@60Hz 1024 x 768@60Hz, 1280 x 720@60Hz 1280 x 768@60Hz, 1280 x 800@60Hz 1280 x 960@60Hz, 1280 x 1024@60Hz 1360 x 768@60Hz, 1366 x 768@60Hz 1400 x 1050@60Hz, 1440 x 900@60Hz 1600 x 900@60Hz, 1600 x 1200@60Hz 1680 x 1050@60Hz, 1920 x 1080@60Hz 1920 x 1200@60Hz |
| Output Video Port | 1 x female RJ-45, 1 x Optical |
| Output Video Type | IP Stream |
| Average Encoding Data Rate | 3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max) |
| Output Resolution | Up to 3840 x 2160p@60Hz 4:4:4 |
| Video Impendence | 100 Ω |
| Input DDC Signal | 5 V p-p (TTL) |
| End-to-End Time Latency |
|
| End-to-End Time Latency |
|
| Input/Output DDC Signal |
|
| Video Impendence |
|
| Maximum Data Rate |
|
| Maximum Pixel Clock |
|
| Input/Output Video Signal |
|
| Audio | |
| Input Audio Port | 1 x HDMI; 1 x 3.5 mm stereo jack |
| Input Audio Format | HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X;
Audio In: analog |
| Output Audio Port | 1 x 3.5 mm stereo jack; 1 x S/PDIF Out; 1 x LAN/Optical |
| Output Audio Format | Audio Out: analog
S/PDIF Out: digital audio LAN/Optical: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X |
| General | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing |
| Power Supply | DC 12 V 2 A |
| Power Consumption | 7W (Max.) |
| ESD Protection | Human body model:
|
| Surge Protection | Voltage: ±1 kV |

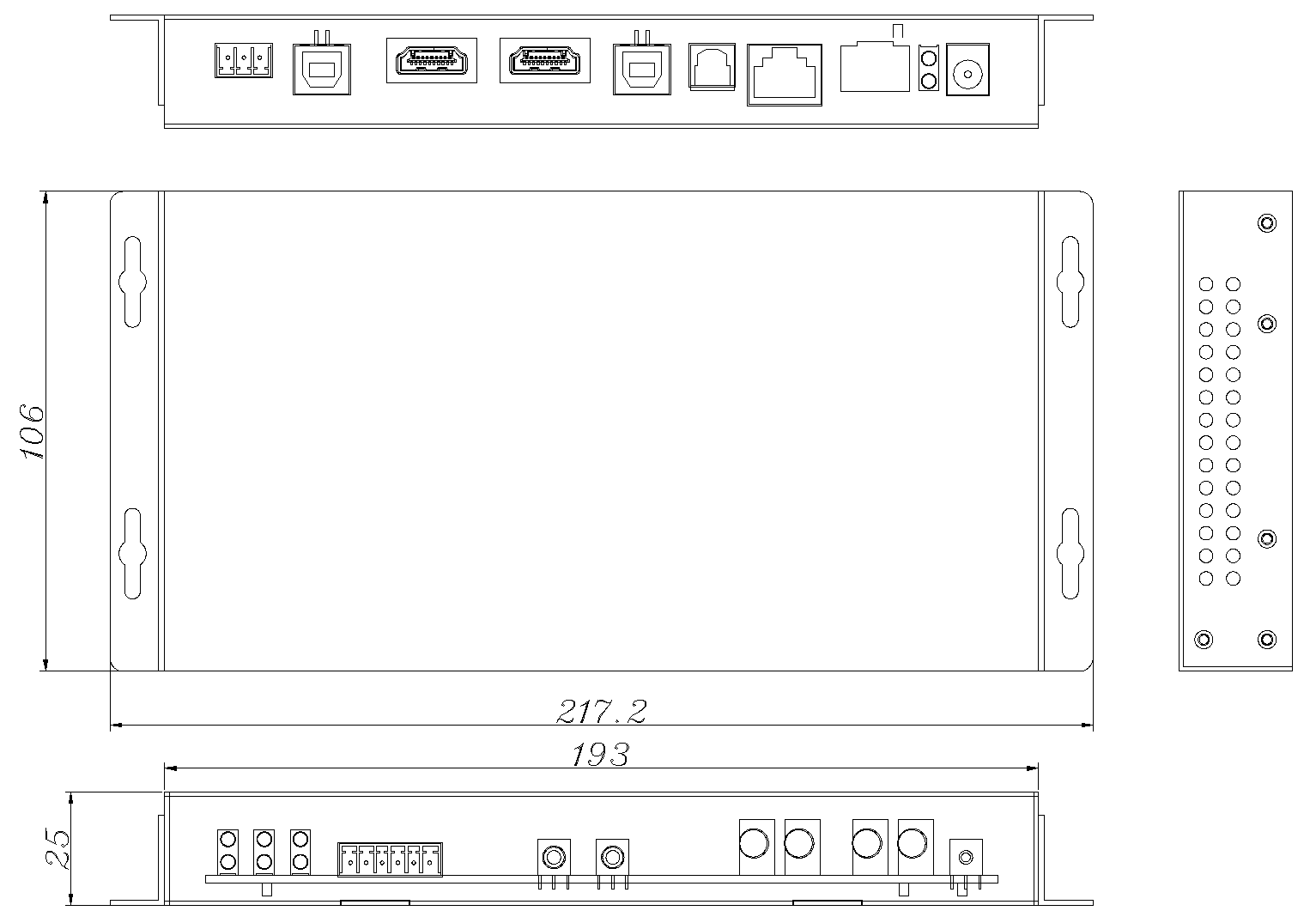

| Product Dimensions
(W x H x D) |
|
| Net Weight | 1.63 lbs (0.74 kg) |

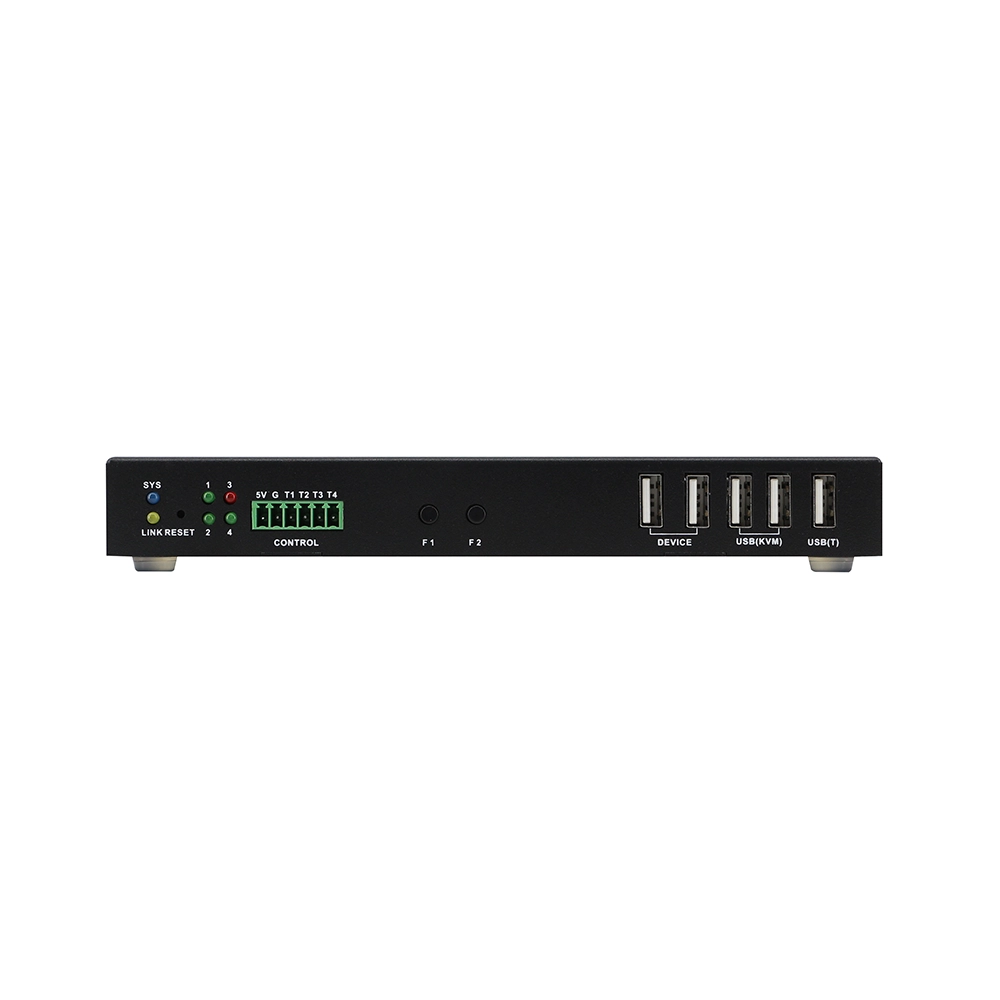

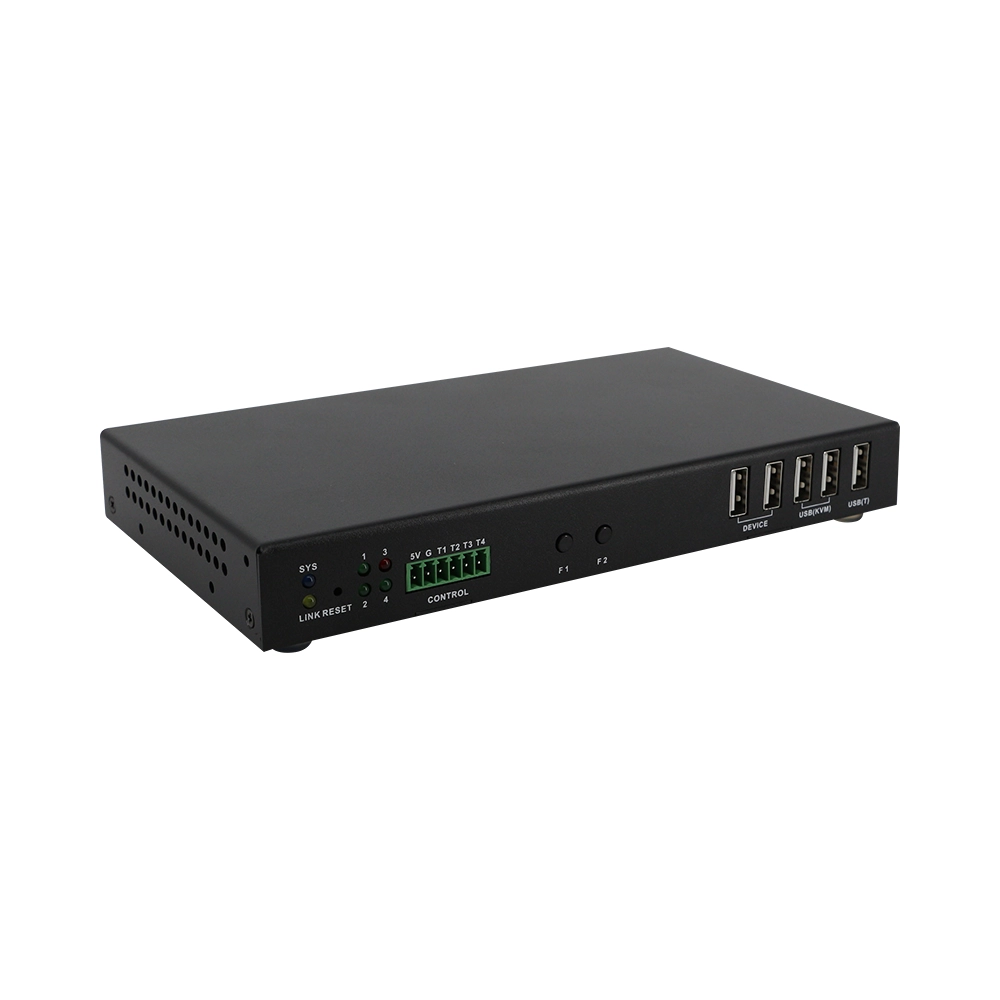

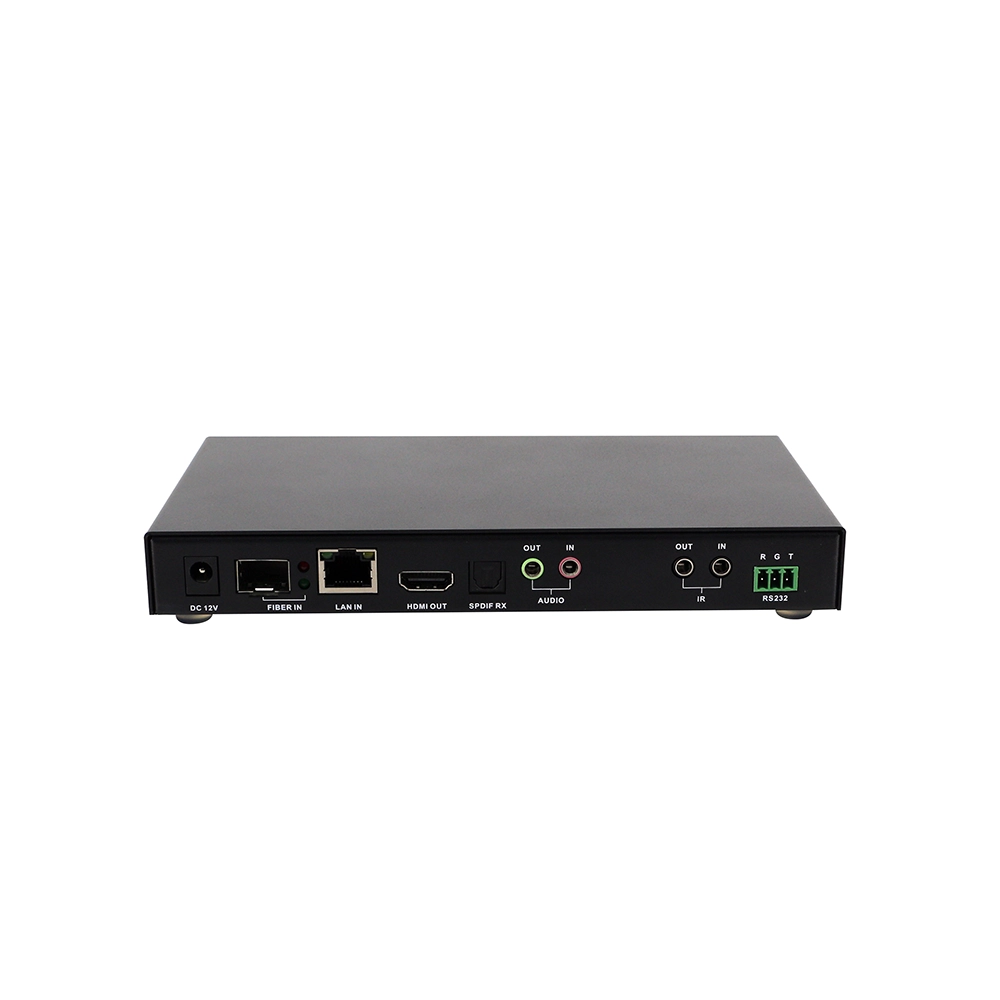

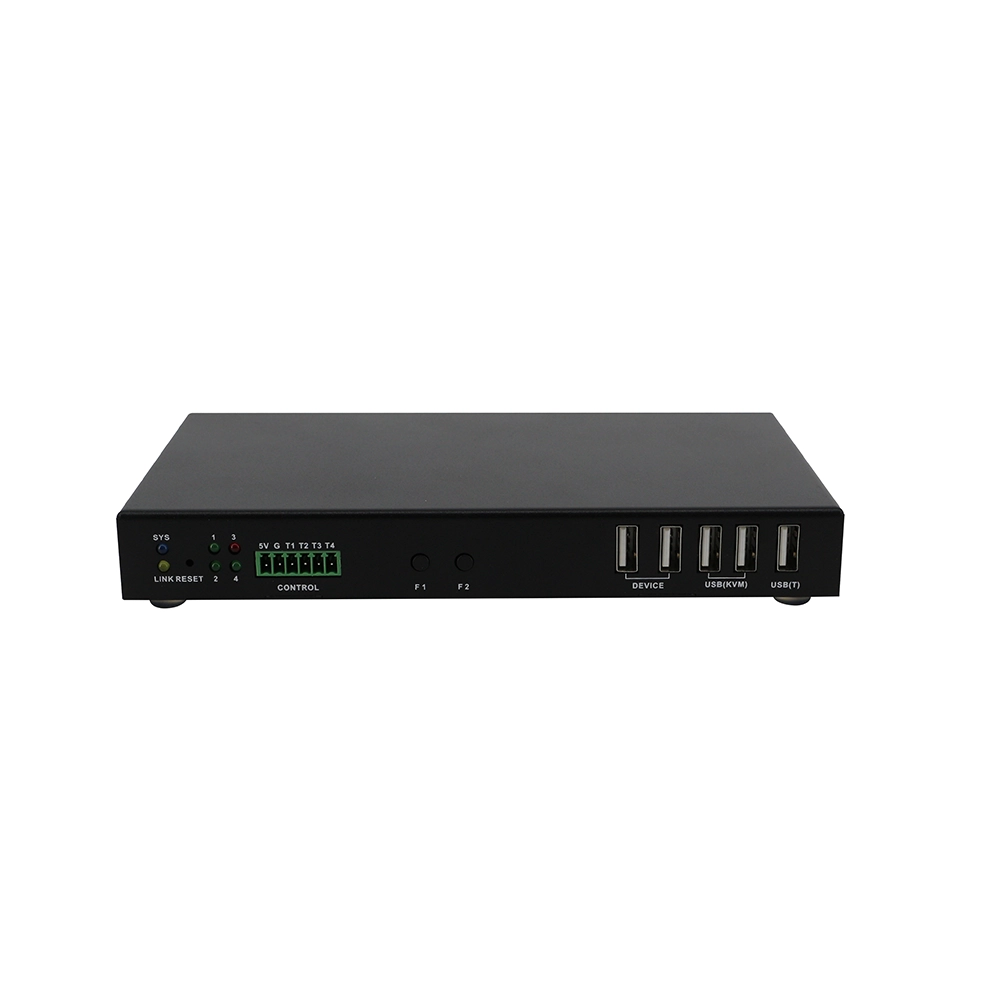

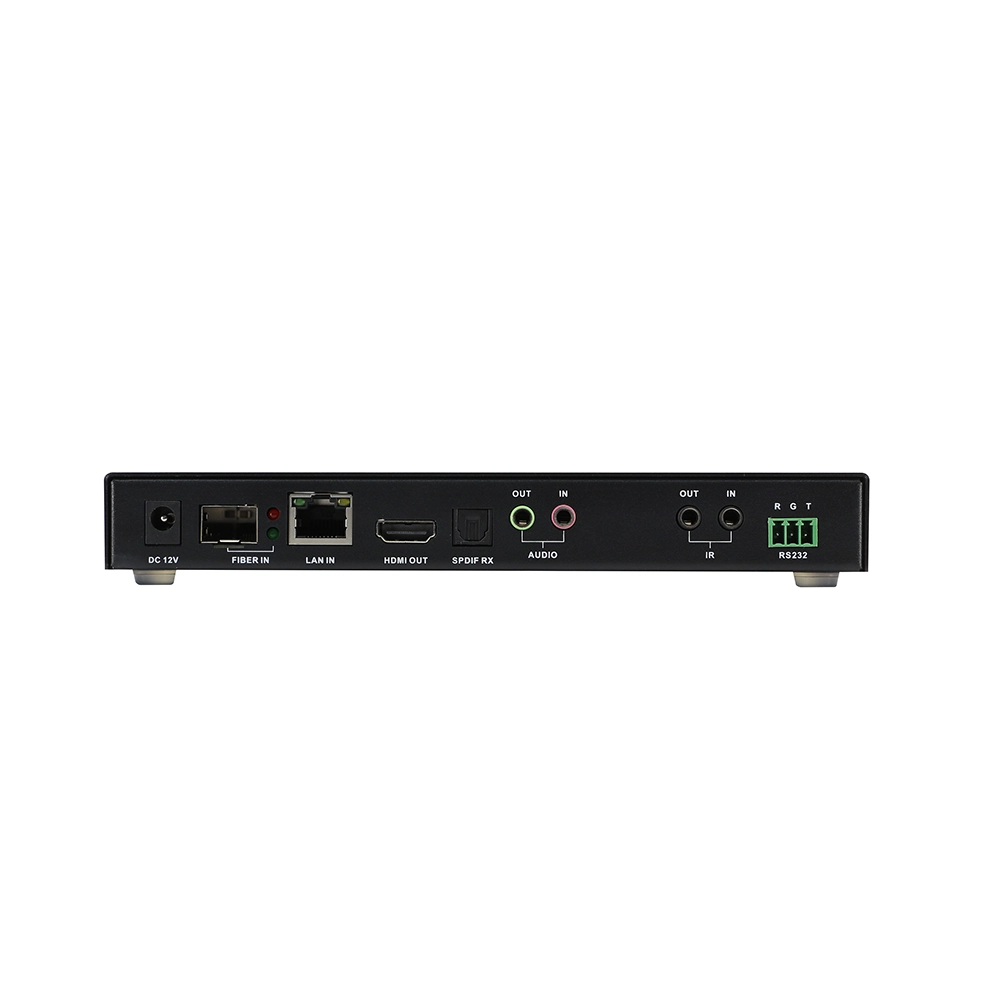

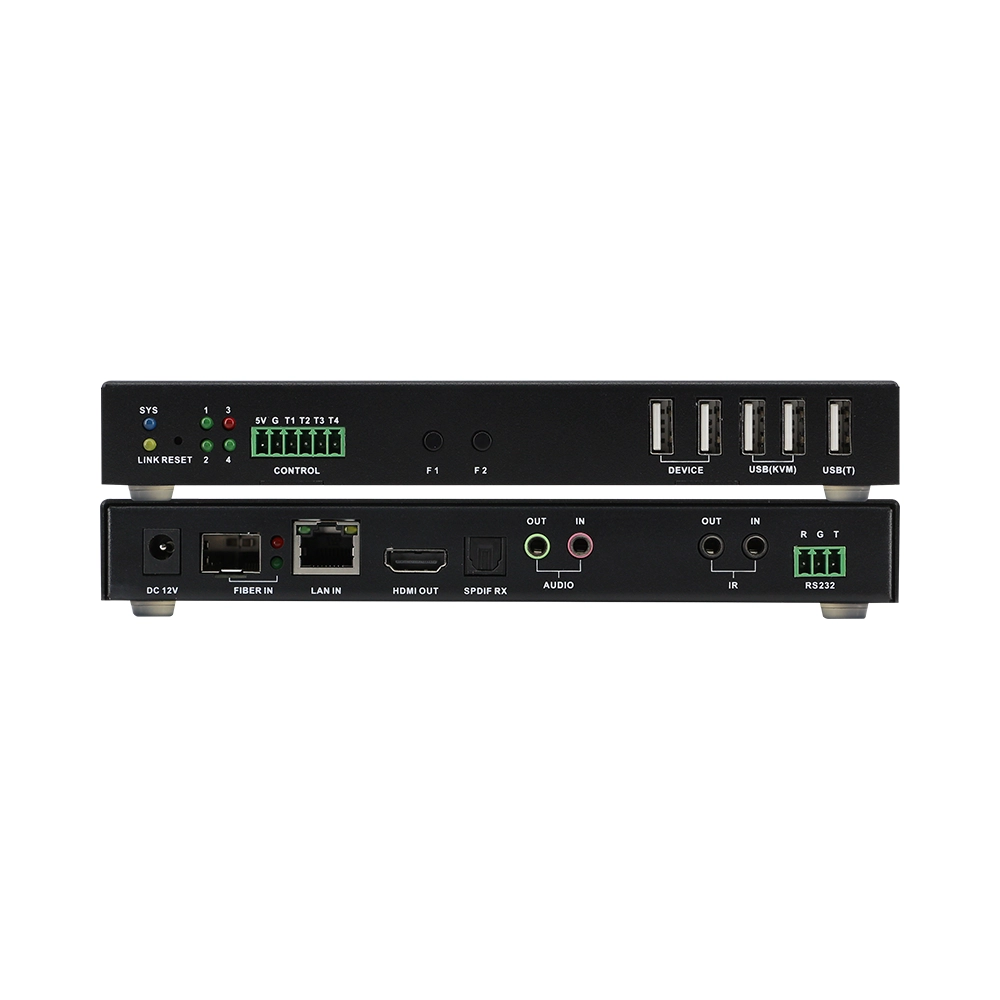

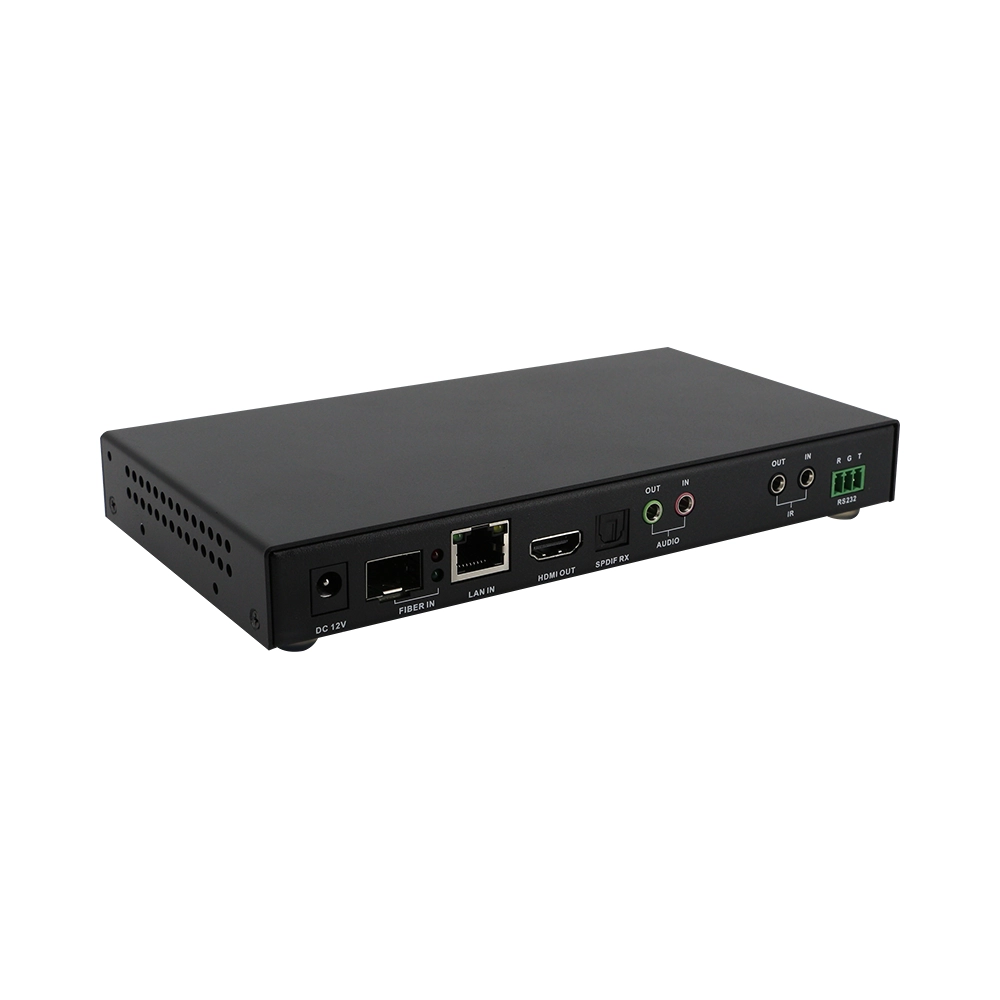

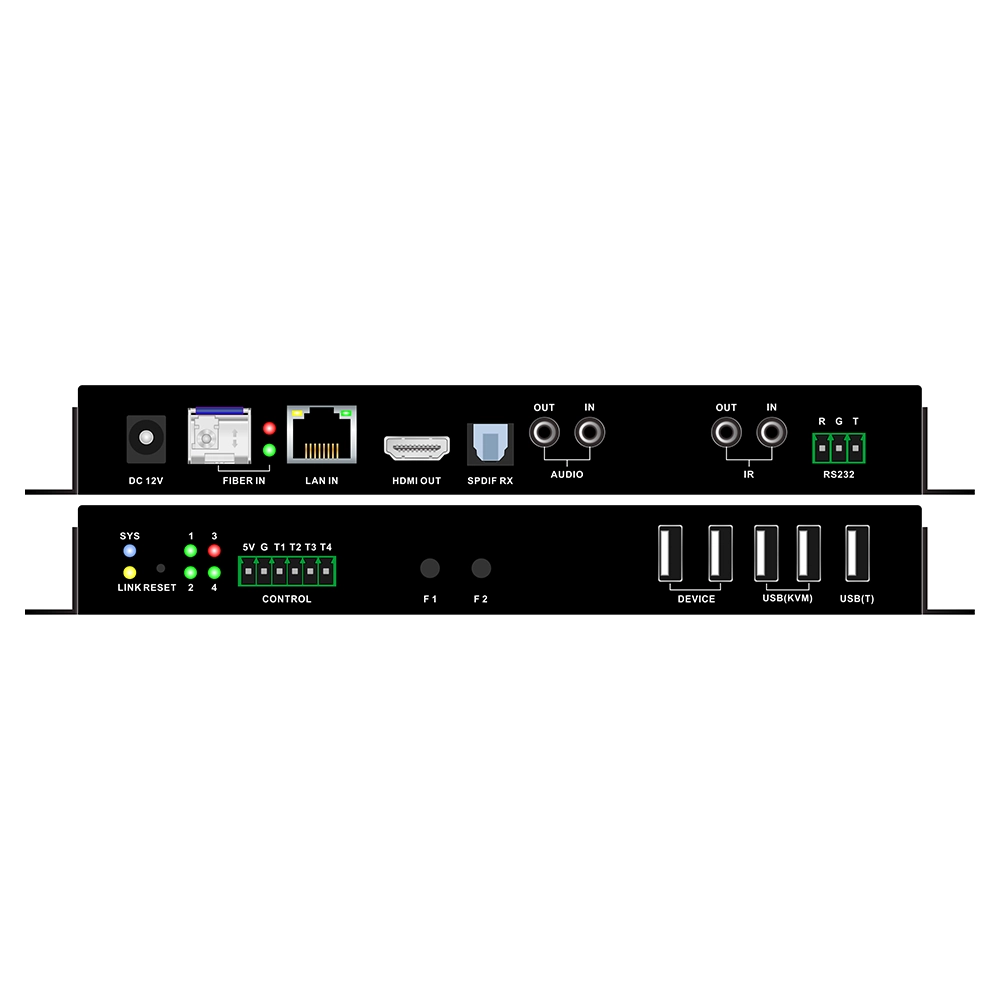

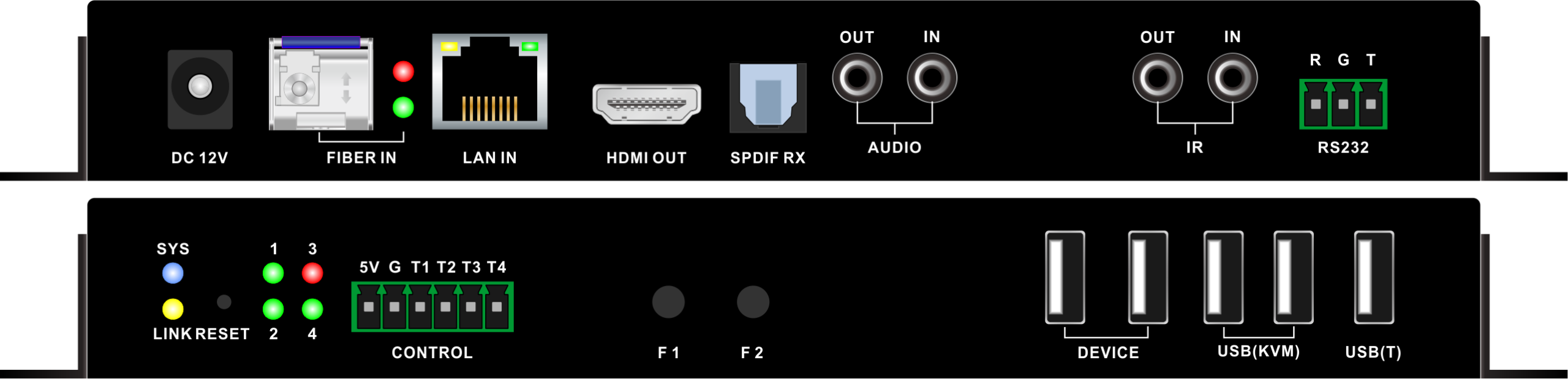

Decoder/Receiver
| Video | |
| Input Port | 1 x female RJ-45, 1 x Optical |
| Input Video Type | IP Stream |
| Input Resolution | 3840 x 2160p@24Hz 4:4:4,
3840 x 2160p@30Hz 4:4:4, 3840 x 2160p@50Hz 4:4:4, 3840 x 2160p@60Hz 4:4:4, 640 x 480p@60Hz, 720 x 480p@60Hz 1280 x 720p@60Hz, 1920 x 1080i@60Hz, 1920 x 1080p@60Hz, 720 x 576p@50Hz 1280 x 720p@50Hz, 1920 x 1080i@50Hz 1920 x 1080p@50Hz, 1920 x 1080p@24Hz 1920 x 1080p@25Hz, 640 x 480@60Hz, 800 x 600@60Hz 1024 x 768@60Hz, 1280 x 720@60Hz 1280 x 768@60Hz, 1280 x 800@60Hz 1280 x 960@60Hz, 1280 x 1024@60Hz 1360 x 768@60Hz, 1366 x 768@60Hz 1400 x 1050@60Hz, 1440 x 900@60Hz 1600 x 900@60Hz, 1600 x 1200@60Hz 1680 x 1050@60Hz, 1920 x 1080@60Hz 1920 x 1200@60Hz |
| Output Video Port | 1 x female HDMI type A (19 pins) |
| Output Video Type | HDMI 2.0, HDCP 2.2/2.3 |
| Average Encoding Data Rate | 3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max) |
| Output Resolution | Up to 3840 x 2160p@60Hz 4:4:4 |
| Video Impendence | 100 Ω |
| Input DDC Signal | 5 V p-p (TTL) |
| End-to-End Time Latency |
|
| End-to-End Time Latency |
|
| Input/Output DDC Signal |
|
| Video Impendence |
|
| Maximum Data Rate |
|
| Maximum Pixel Clock |
|
| Input/Output Video Signal |
|
| Audio | |
| Input Audio Port | 1 x S/PDIF IN; 1 x LAN/Optical |
| Input Audio Format | LAN/Optical: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X;
S/PDIF In: digital audio |
| Output Audio Port | 1 x HDMI; 1 x 3.5 mm stereo jack |
| Output Audio Format | HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X;
Audio Out: Analog |
| General | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing |
| Power Supply | DC 12 V 2 A |
| Power Consumption | 8.5W (Max.) |
| ESD Protection | Human body model:
|
| Surge Protection | Voltage: ±1 kV |
| Product Dimensions
(W x H x D) |
|
| Net Weight | 1.63 lbs (0.74 kg) |

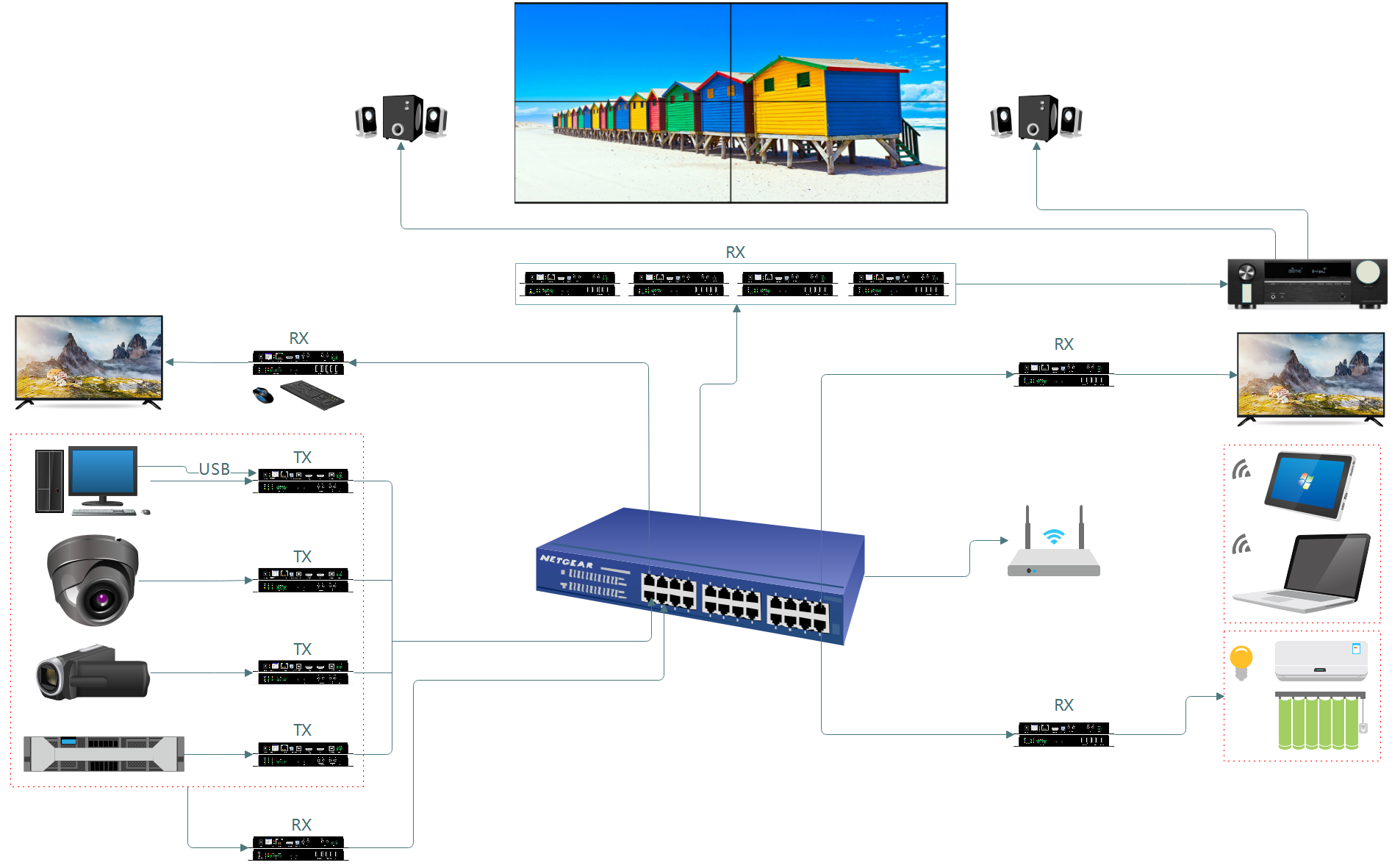

Application
