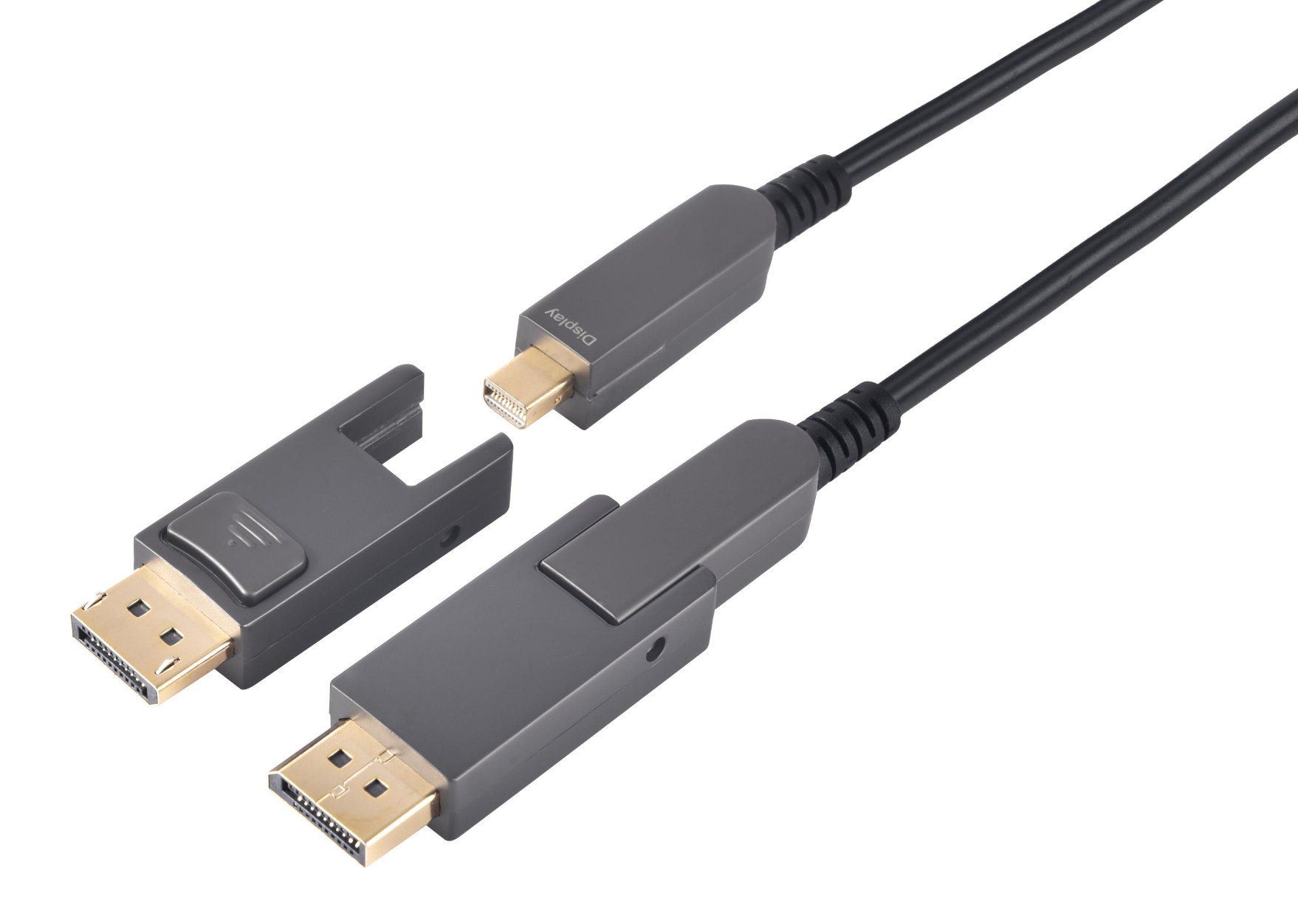

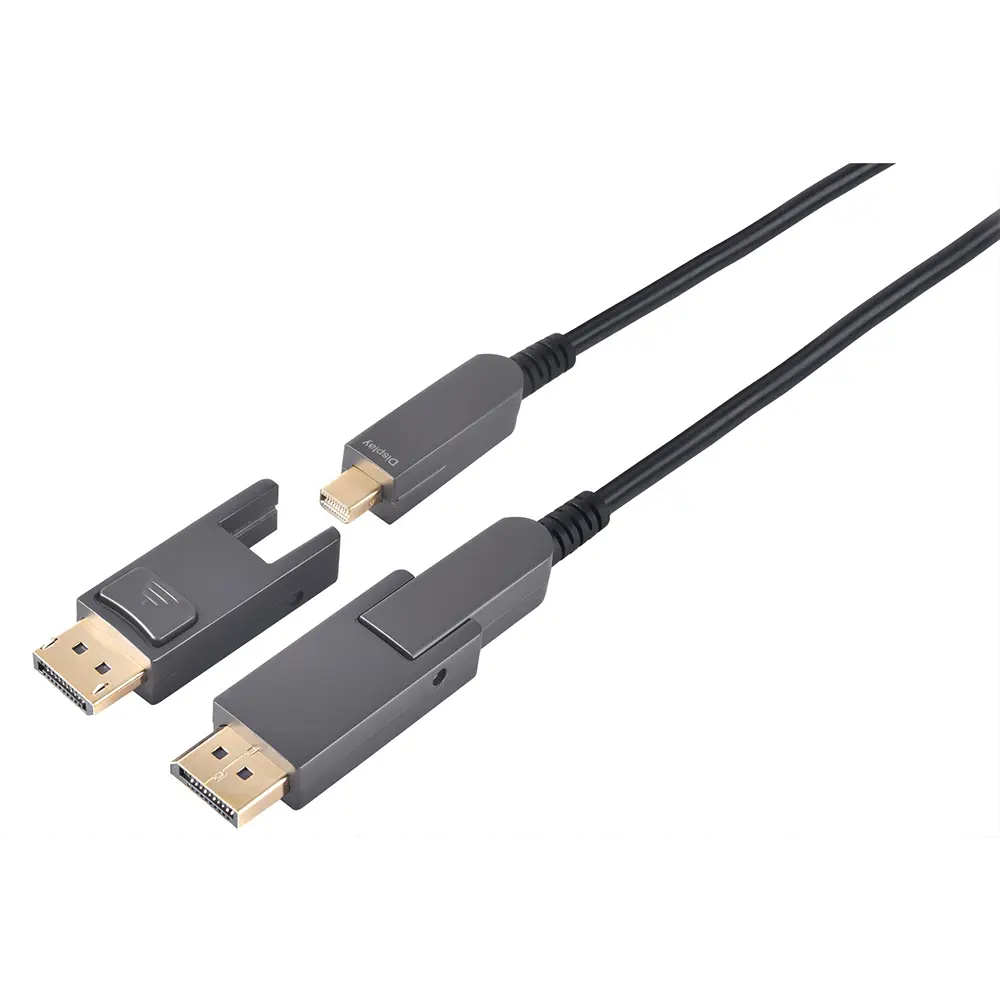

AOC DP cable

Long distance transmission up to 100 meters(330ft)
Support 8K@60Hz, Supports HBR3, HDCP 1.4, HDCP 2.2;
Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
Hybrid fiber and copper with much more slim and light weight
Low RFI / EMI profile for sensitive applications
External power supply is not request

INQUIRY

Introduction

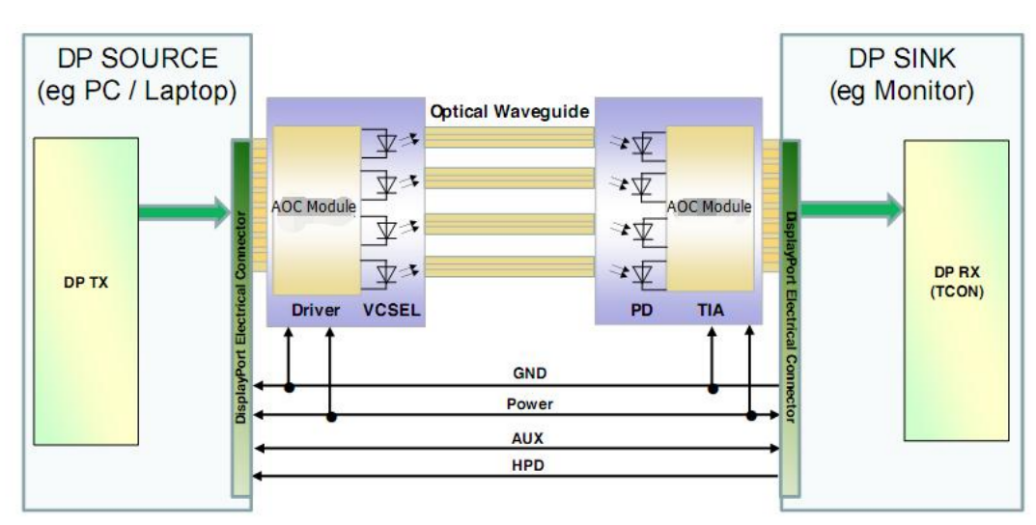

This DP 1.4 AOC is a new generation of advanced Active Optical Cables (AOC) that employ cutting edge technology to deliver unprecedented resolution, performance and value. It can support DisplayPort 1.4 and provide a wide range of features in a compact, lightweight form- factor. They are fully HDCP1.4 or HDCP2.2 compliant and support signals with data rates up to 32.4 Gbps. (HBR3). These features enable this AOC cables to support very high resolution applications at 4K@120Hz (4:4:4) with cable lengths up to 100 meters or 8K@60Hz (4:4:4) up to 100 meters

Features

Long distance transmission up to 100 meters(330ft)
Support 8K@60Hz, Supports HBR3, HDCP 1.4, HDCP 2.2;
Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
Hybrid fiber and copper with much more slim and light weight
Low RFI / EMI profile for sensitive applications
External power supply is not request

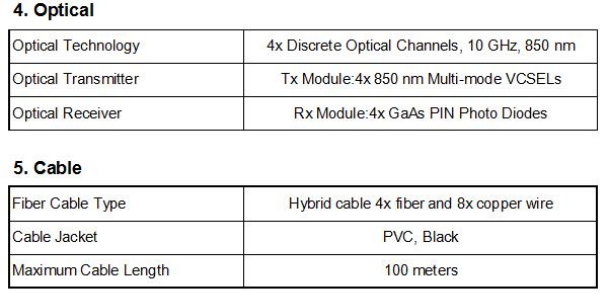

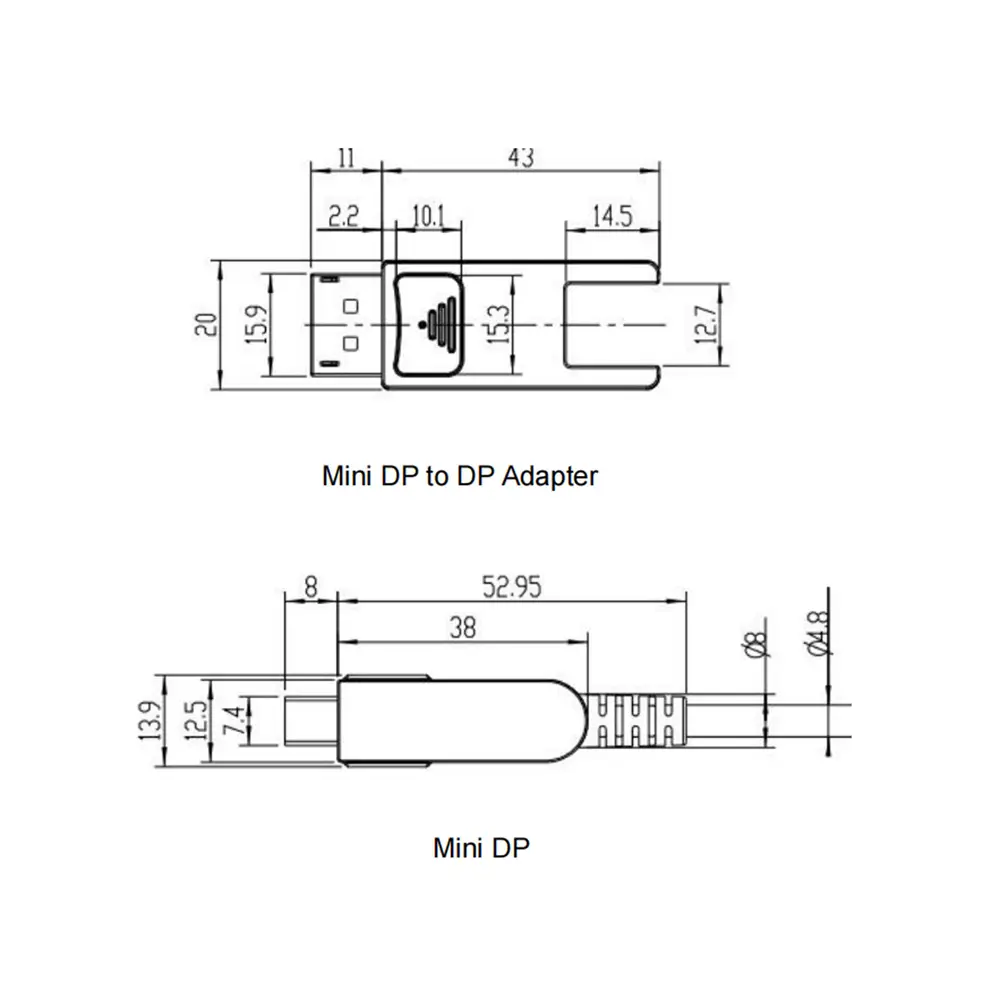

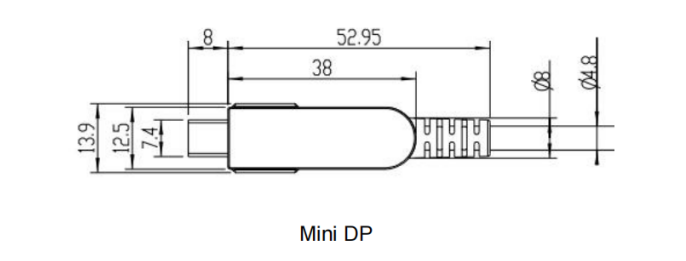

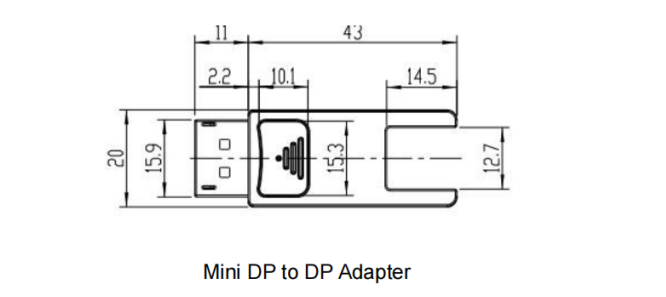

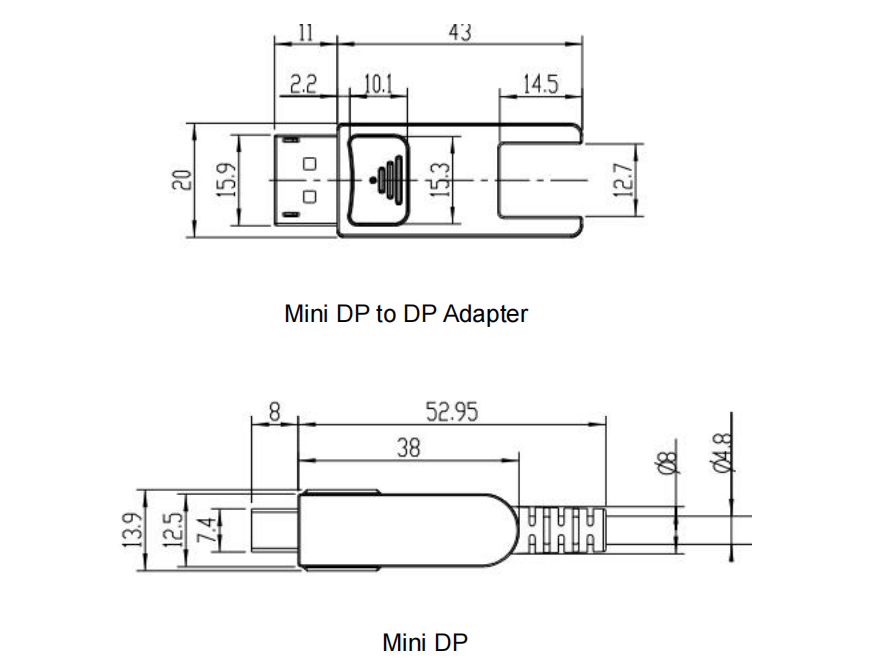

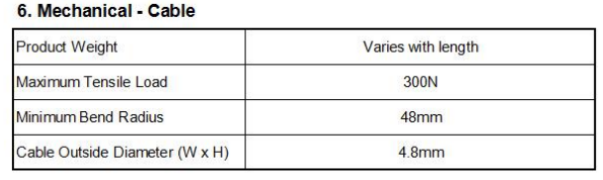

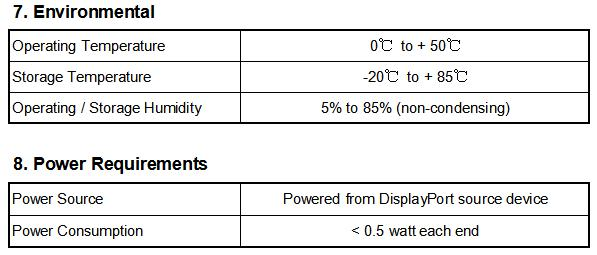

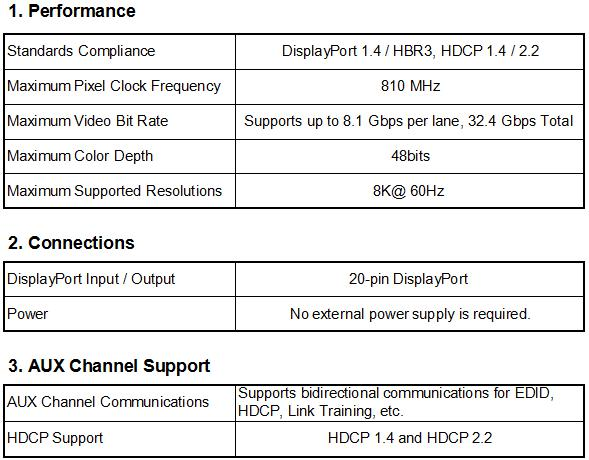

Specification

Application

1. Home Theater
2. High definition Video Meeting System
3. Medical Video System
4. High definition Video Surveillance System
5. Digital Signage and TV Wall
