| FM 1080p Cards | |||||
|---|---|---|---|---|---|

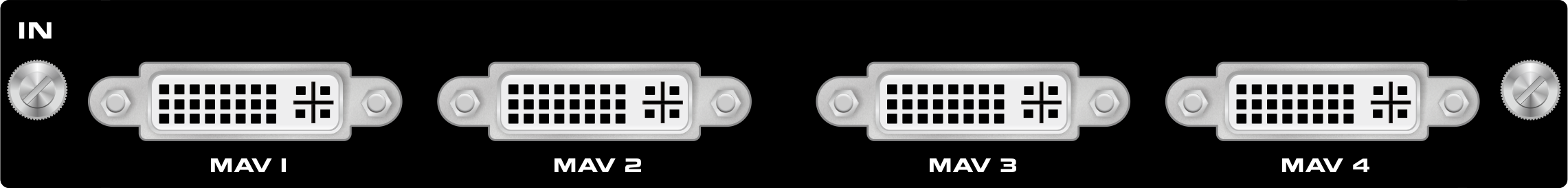

| 4-Port 1080P SVM input cards | FM 4-port 1080P MAV input card | FM-IN-SVM-MAV | CBKFM0009 |  |
4-port MAV inputs, can support CVBS/YPBPR/VGA/HDMI with different adapters HDCP compliant Support up to 1080P60hz and backwards |
| FM 4-port 1080P HDMI input card | FM-IN-SVM-HD | CBKFM0007 |  |
4-port HDMI inputs, HDCP compliant Support up to 1080P60hz and backwards Support 3.5mm audio embedded |
|
| FM 4-port 1080P HDMI input card with audio out | FM-IN-SVM-HD-AO | CBKFM0046 |  |
4-port HDMI inputs, HDCP compliant Support up to 1080P60hz and backwards Support 3.5mm audio out |
|
| FM 4-port 1080P DVI input card | FM-IN-SVM-DVI | CBKFM0070 |  |
Support 4-port DVI Inputs, HDCP1.4 compliant Support 1080P60 resolution and down compatible Support seamless switching |
|

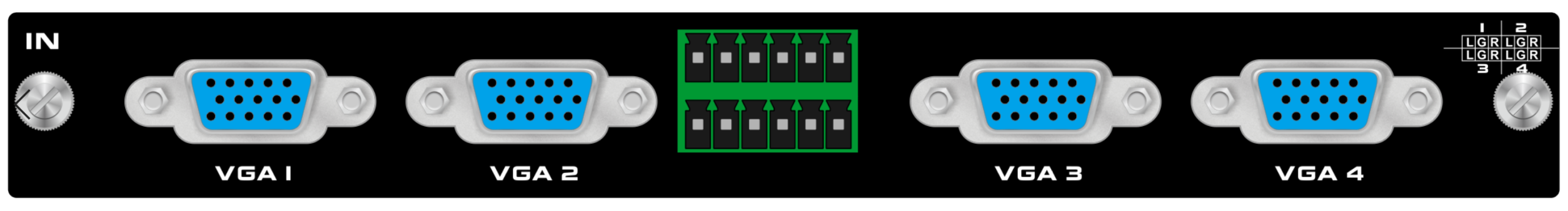

| FM 4-port 1080P VGA input card | FM-IN-SVM-VGA | CBKFM0064 |  |
4-port VGA inputs Support up to 1080P60hz and backwards Support 3-PIN phoenix audio embedded |
|

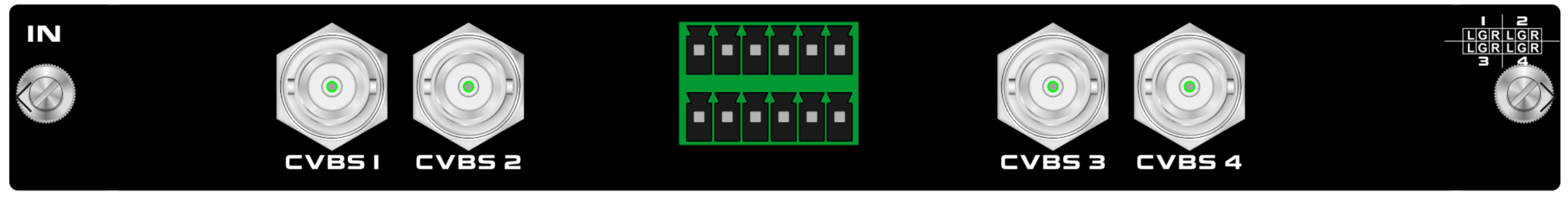

| FM 4-port 1080P CVBS input card | FM-IN-SVM-CVBS | CBKFM0062 |  |
4-port SVBS(BNC) inputs Support up to 1080P60hz and backwards Support 3-PIN phoenix audio embedded |
|

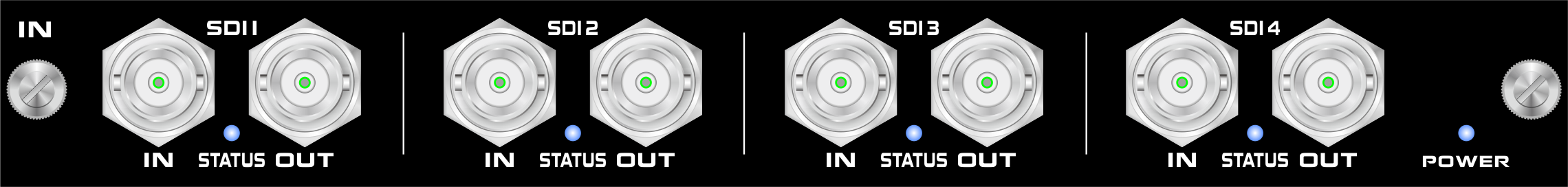

| FM 4-port 1080P 3GSDI input card | FM-IN-SVM-3GSDI-TW | CBKFM0061 |  |
4-port SD/HD/3G-SDI input and 4 loop outs Resolution up to 1080P60, 720/1080P key Seamless switch SDI cable distance can up to 20m/60ft |
|

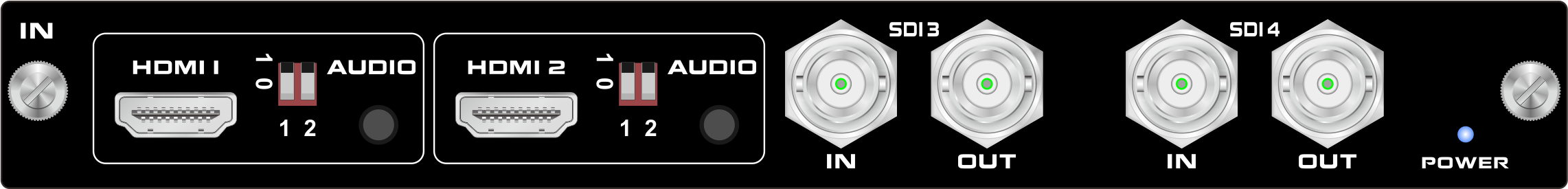

| FM 4-port 1080P 2*3GSDI+2*HDMI input card | FM-IN-SVM-2S2H | CBKFM0071 |  |
2-port SD/HD/3G-SDI inputs with loop outs+2-port HDMI inputs Support up to 1080P60hz and backwards Support 3-PIN phoenix audio embedded |
|

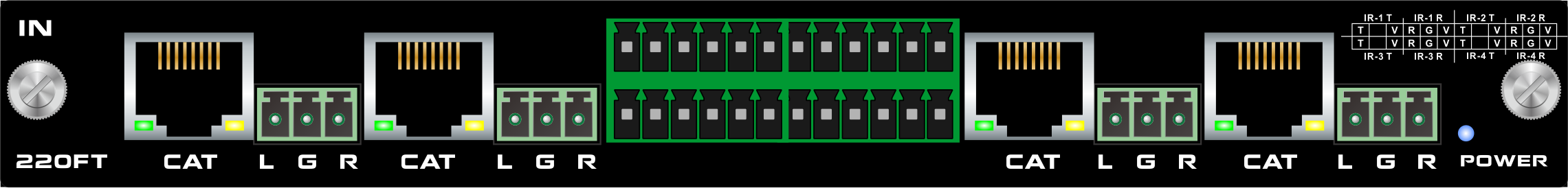

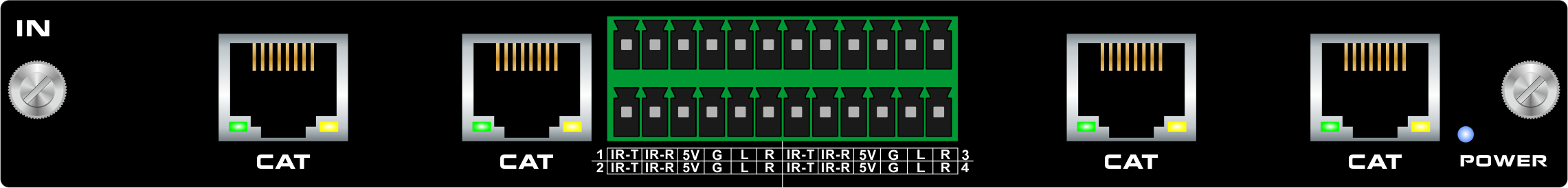

| FM 4-port 1080P 70M HDBaseT input card | FM-IN-SVM-HDBT-70 | CBKFM0072 |  |
4port HDBaseT inputs Support bi-drectional IR, RS232/Audio out Supports POC function Can work with any HDBaseT products Resolution up to 1080P60Hz, distance up to 70m/220ft over single STP CAT6 |
|

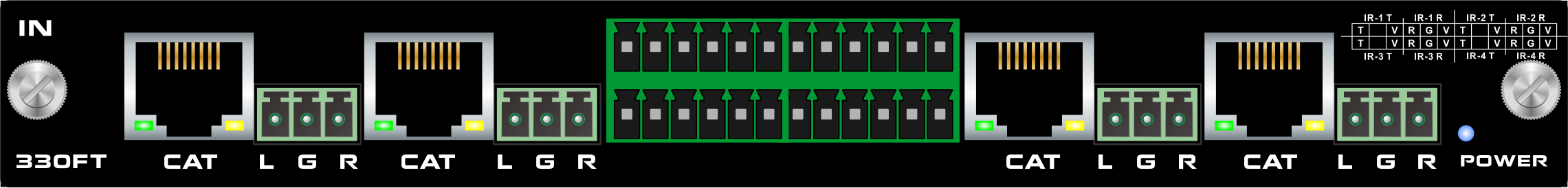

| FM 4-port 1080P 100M HDBaseT input card | FM-IN-SVM-HDBT-100 | CBKFM0001 |  |
4port HDBaseT inputs Support bi-drectional IR, RS232/Audio out Supports POC function Can work with any HDBaseT products Resolution up to 1080P60Hz, distance up to 100m/330ft over single STP CAT6 |
|
| FM 4-port 1080P 150M LHDT input card | FM-IN-SVM-LHDT-150 | CBKFM0041 |  |
Support 4-port LHDT inputs Distance up to 150m over CAT5E/6/7 for 1080P60 Support one-way IR, POC function Needs to work with LHDT extenders |
|
| 4-Port 1080P SVM output cards | FM 4-port 1080P MAV output card | FM-OUT-MVM-HD | CBKFM0047 |  |
4-port HDMI outputs Support up to 1080P60hz and backwards, scaling function by DIP switch Supports seamless switching and Video Wall function Supports 3.5mm audio de-embedded |
| FM 4-port 1080P HDMI input card with audio out | FM-OUT-SVM-HD | CBKFM0028 |  |
Support 4-port HDMI outputs, each port up to 1080P60Hz Support audio de-embedded fucntion Support seamless switching and resolution adjustment Support WEB GUI based PIP, cross-screen function |
|

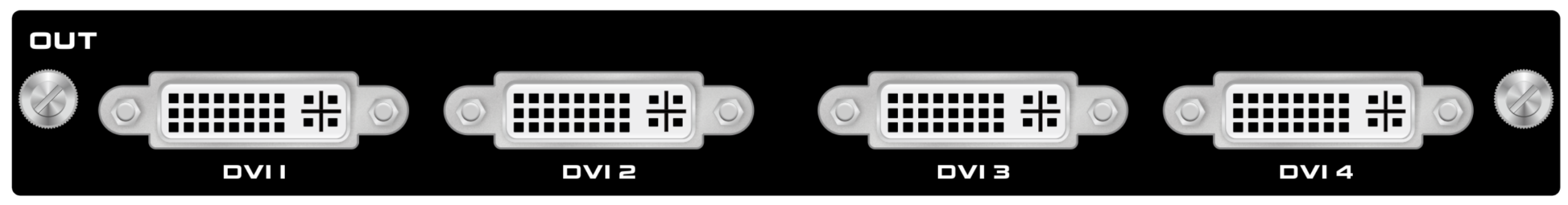

| FM 4-port 1080P DVI output card | FM-OUT-SVM-DVI | CBKFM0044 |  |
4-port DVI outputs Support up to 1080P60hz and backwards Supports seamless switching |
|

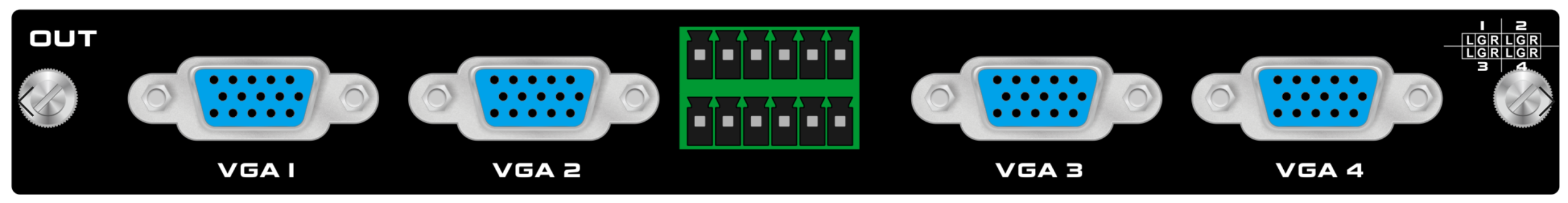

| FM 4-port 1080P VGA output card | FM-OUT-SVM-VGA | CBKFM0065 |  |
4-port VGA outputs Support up to 1080P60hz and backwards, scaling function by DIP switch Supports seamless switching and Video Wall function Supports 3-PIN phoenix audio de-embedded |
|

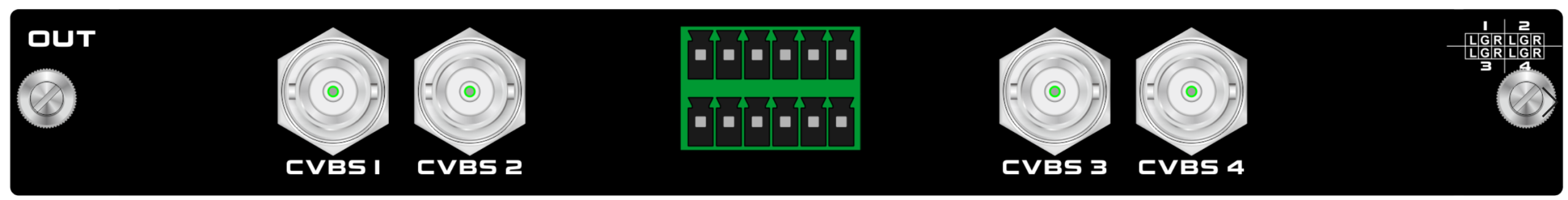

| FM 4-port 1080P CVBS output card | FM-OUT-SVM-CVBS | CBKFM0063 |  |
4-port CVBS outputs Support up to 1080P60hz and backwards, scaling function by DIP switch Supports seamless switching and Video Wall function Supports 3-PIN phoenix audio de-embedded |
|

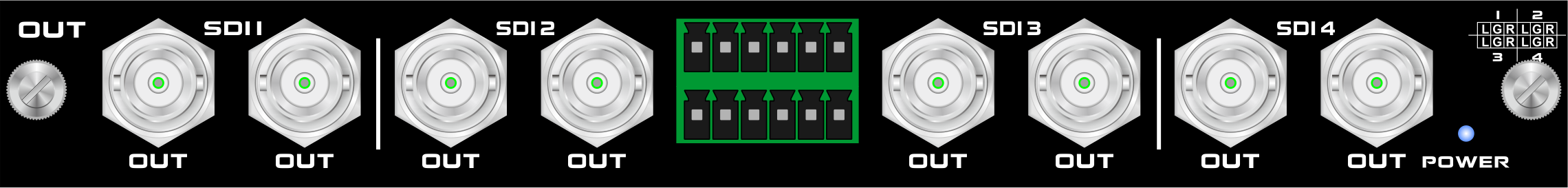

| FM 4-port 1080P 3GSDI output card | FM-OUT-SVM-3GSDI | CBKFM0030 |  |
4-port 3G/HD/SD-SDI outputs with loop outs Support up to 1080P60hz and backwards, scaling function by DIP switch Supports seamless switching and Video Wall function Supports 3-PIN phoenix audio de-embedded |
|

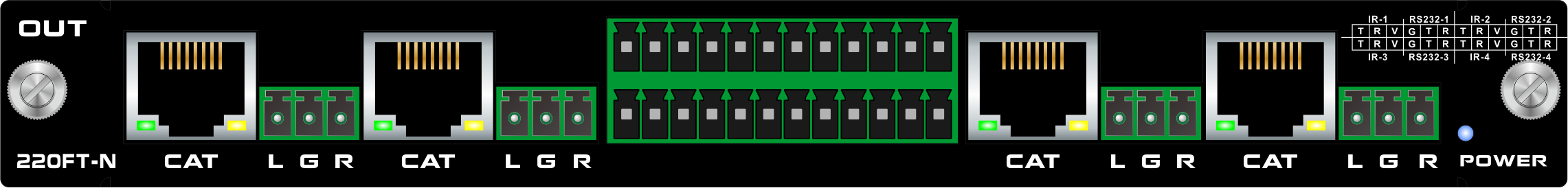

| FM 4-port 1080P 70M HDBaseT output card | FM-OUT-SVM-HDBT-70 | CBKFM0032 |  |
4port HDBaseT Outputs Support bi-drectional IR, RS232/Audio out Supports POC function Can work with any HDBaseT products Resolution up to 1080P60Hz, distance up to 70m/220ft over single STP CAT6 |
|

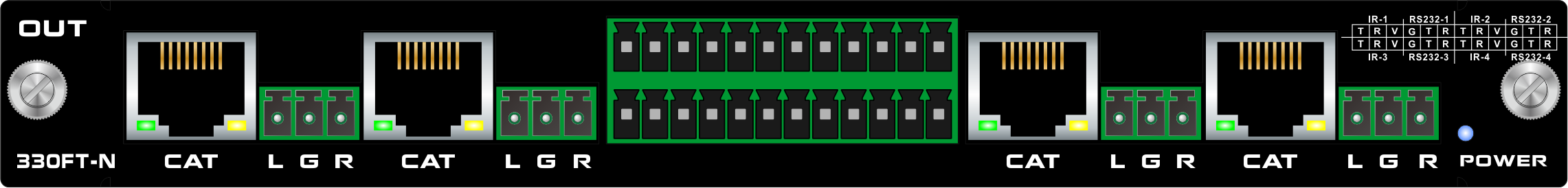

| FM 4-port 1080P 100M HDBaseT output card | FM-OUT-SVM-HDBT-100 | CBKFM0033 |  |
4port HDBaseT outputs Support bi-drectional IR, RS232/Audio out Supports POC function Can work with any HDBaseT products Resolution up to 1080P60Hz, distance up to 100m/330ft over single STP CAT6 |
|
| FM 4-port 1080P 150M LHDT output card | FM-OUT-SVM-LHDT-150 | CBKFM0042 |  |
1-card 4-port LHHDT output card with 4 HDMI loop out Support seamless switching, video wall and scaling functions Distance up to 150m/450ft for 1080P over LAN with POC Only works with the LHDT Extender Receiver |
|
| FM 4K60 Cards | |||||

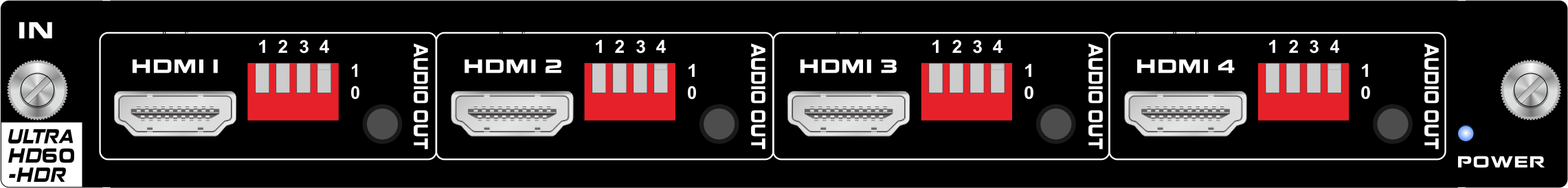

| 4-Port 4K60 HDR input Cards | FM 4-port 4K60 HDMI input with audio in | FM-IN-HD-4K60-AI | CBKFM0006 |  |
4-port HDMI 4K60 inputs HDCP2.2 compliant Support up to 4K60hz and backwards, Support 3.5mm audio embedded Support DIP switch for EDID management |

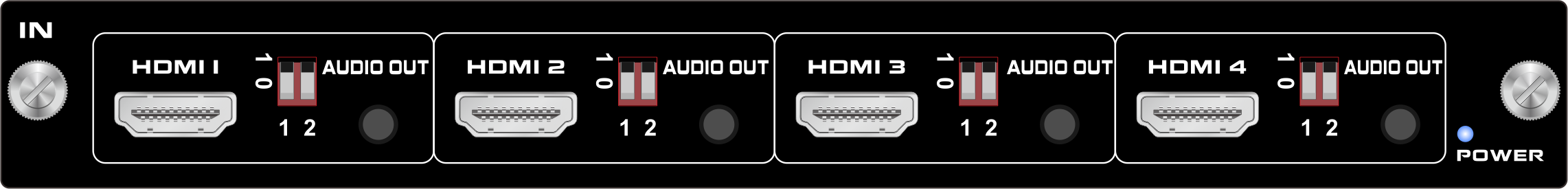

| FM 4-port 4K60 HDMI input with audio out | FM-IN-HD-4K60-AO | CBKFM0029 |  |
4-port HDMI 4K60 inputs HDCP2.2 compliant Support up to 4K60hz and backwards, Support 3.5mm audio De-embedded Support DIP switch for EDID management |
|
| FM 4-port 4K60 12G-SDI input card | FM-IN-12GSDI-4K60 | CBKFM0055 |  |
4-port 12GSDI inputs with 4* 12G SDI loopout Support 12GSDI and down compatible with 3GSDI Support 3.5mm audio embedded |
|
| FM 4-port 4K60 40M HDBaseT input card | FM-IN-HDBT-4K60-40 | CBKFM0026 |  |
4-port HDBaseT input pass-through card Resolution up to 4K60(4:2:0), distance up to 35m/110ft Support bi-directional IR, RS232 and Audio out Support POC, no video wall, no seamless switch Can work with any of our HDBaseT Transmitters |
|
| FM 4-port 4K60 70M HDBaseT input card | FM-IN-HDBT-4K60-70 | CBKFM0027 |  |
4-port HDBaseT input pass-through card Resolution up to 4K60(4:2:0), distance up to 70m/220ft Support bi-directional IR, RS232 and Audio out Support POC, no video wall, no seamless switch Can work with any of our HDBaseT Transmitters |
|

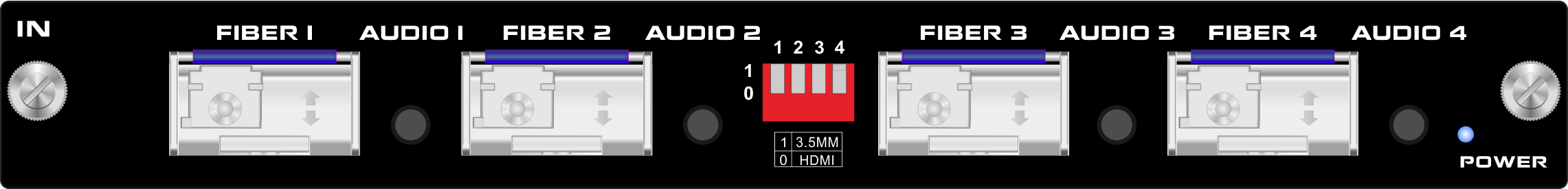

| FM 4-port 4K60 2KM Fiber LC input card with audio in | FM-IN-FIBER-4K60-AI | CBKFM0078 |  |
4-port Fiber input card Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable Support 3.5mm audio in Can work with the AEL Fiber Transmitter |
|
| FM 4-port 4K60 2KM Fiber LC input card with audio out | FM-IN-FIBER-4K60-AO | CBKFM0017 |  |
4-port Fiber inputs, LC connector Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable Support 3.5mm audio out Can work with the AEL Fiber Transmitter |
|
| FM 4-port 4K60 SVM input card | FM 4-port 4K60 SVM HDMI input card | FM-IN-SVM-HD-4K60 | CBKFM0015 |  |
4-port HDMI 4K60 inputs HDCP2.2 compliant Support up to 4K60hz and backwards, Support 3.5mm audio embedded Support seamless switching and scaling by DIP switch |

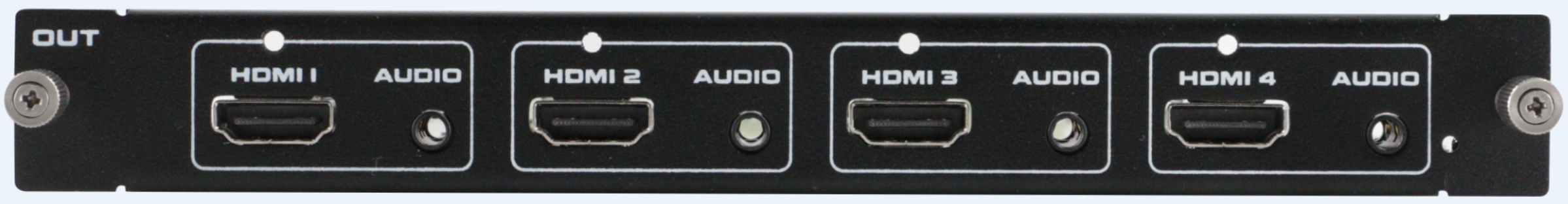

| FM 4-port 4K60 HDR output cards | FM 4-port 4K60 HDMI HDR output card 3.5mm audio out | FM-OUT-HD-4K60 | CBKFM0008 |  |
4-port HDMI 4K60 outputs HDCP2.2 compliant Support up to 4K60hz and backwards, Support 3.5mm audio embedded |

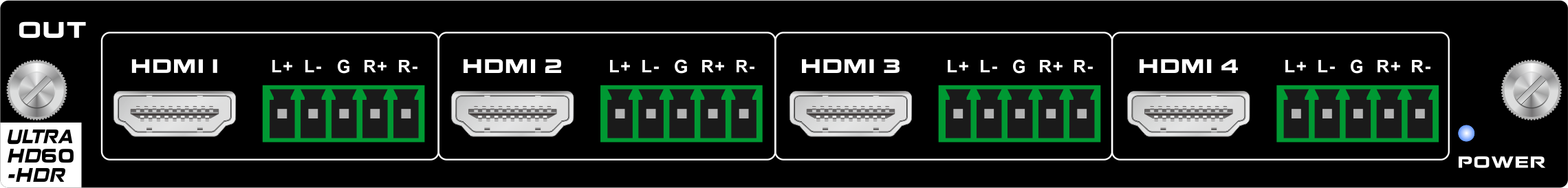

| FM 4-port 4K60 HDMI HDR output card(balance audio out) | FM-OUT-HD-4K60-BAL | CBKFM0075 |  |
4-port HDMI 4K60 outputs HDCP2.2 compliant Support up to 4K60hz and backwards, Support balanced audio out |
|
| FM 4-port 4K60 40M HDBaseT output card | FM-OUT-HDBT-4K60-40 | CBKFM0043 |  |
4-port HDBaseT output pass-through output card Resolution up to 4K60(4:2:0), distance up to 35m/110ft Support bi-directional IR, RS232 Support POC, no video wall, no seamless switch Can work with any of our HDBaseT receivers |
|
| FM 4-port 4K60 70M HDBaseT output card | FM-OUT-HDBT-4K60-70 | CBKFM0039 |  |
4-port HDBaseT output pass-through output card Resolution up to 4K60(4:2:0), distance up to 70m/220ft Support bi-directional IR, RS232 Support POC, no video wall, no seamless switch Can work with any of our HDBaseT receivers |
|

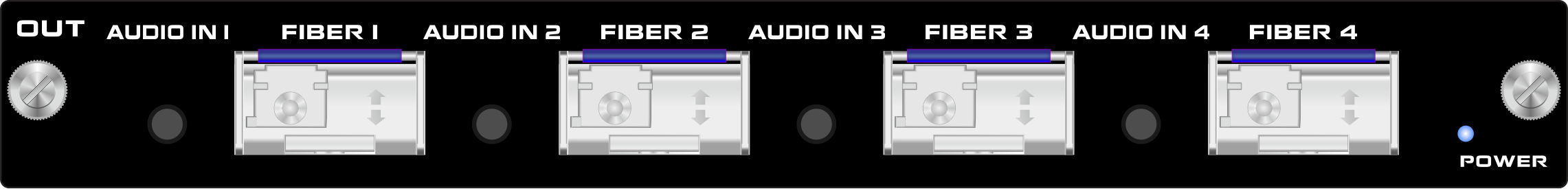

| FM 4-port 4K60 2KM fiber optic output card with audio in | FM-OUT-FIBER-4K60-AI | CBKFM0018 |  |
4-port Fiber output card Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable Support 3.5mm audio in Can work with the AEL Fiber Receiver |
|
| FM 4-port 4K60 2KM fiber optic output card with audio out | FM-OUT-FIBER-4K60-AO | CBKFM0040 |  |
4-port Fiber outputs, LC connector Resolution up to 4K60, disance up to 2km over 1-core LC fiber cable Support 3.5mm audio out Can work with the AEL Fiber Receiver |
|

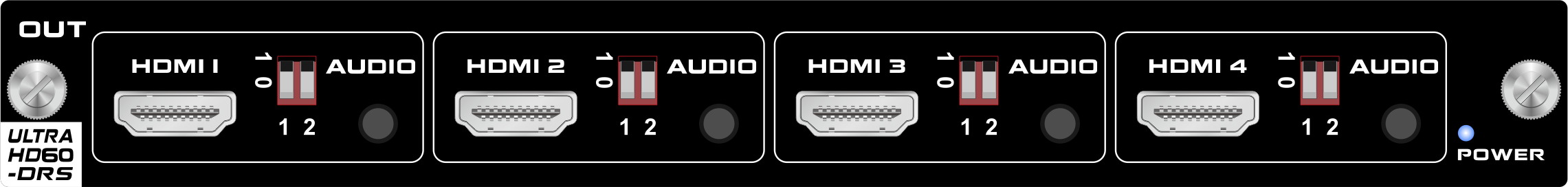

| FM 4-port 4K60 DRS SVM output cards | FM 4-port 4K60 HDMI DRS output card with audio out | FM-OUT-DRS-HD-4K60 | CBKFM0076 |  |
4-port HDMI 4K60 outputs HDCP2.2 compliant Support up to 4K60hz and backwards Support 3.5mm audio de-embedded Support seamless switching, scaling, video wall and image rotation by commands |

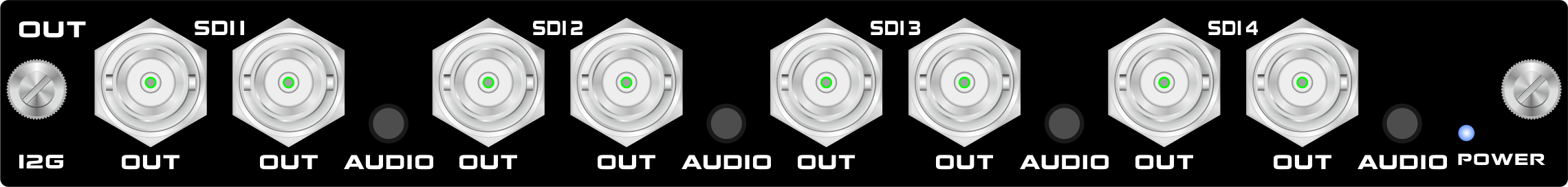

| FM 4-port 4K60 12GSDI DRS output card with audio out | FM-OUT-DRS-12GSDI-4K60 | CBKFM0054 |  |
Support 4-port 12GSDI output with 4* 12G SDI loop out Support 12GSDI and down compatible with 3GSDI Support video wall and audio de-embedded functions |
|
| FM 4-port 4K60 40M DRS HDBaseT output card | FM-OUT-DRS-HDBT-4K60-40 | CBKFM0035 |  |
4-port HDBaseT outputs Displace up to 40m over STP CAT5E/6/7 Resolution to 4K60 and down compatible Support IR, RS232/audio out Support POC function, video wall, and seamless switching and scaling function |
|
| FM 4-port 4K60 70M DRS HDBaseT output card | FM-OUT-DRS-HDBT-4K60-70 | CBKFM0034 |  |
4-port HDBaseT outputs Displace up to 70m over STP CAT5E/6/7 Resolution to 4K60 and down compatible Support IR, RS232/audio out Support POC function, video wall, and seamless switching and scaling function |
|
| FM 4-port 4K60 2KM DRS fiber optic output card with audio out | FM-OUT-DRS-FIBER-4K60 | CBKFM0038 |  |
4-port Fiber Optic Outputs Resolution up to 4K60 and distance to 2km over SM fiber LC cable Supports seamless switching, video wall and scaling Works with the AEL Fiber receivers |
|
| Function cards | |||||

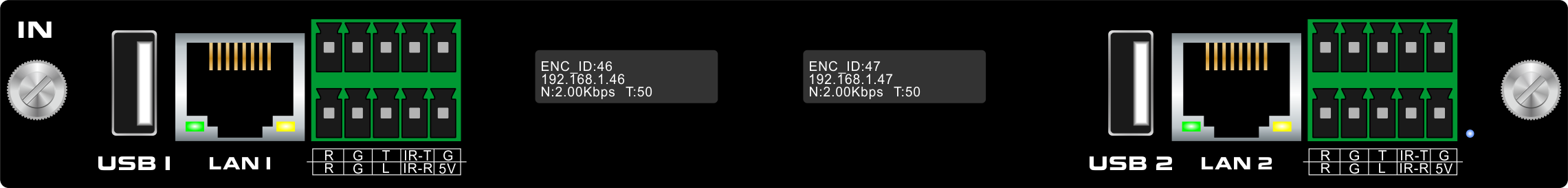

| Function cards | FM 2-port H.264/265 IP encoding card | FM-IN-IPX-925 | CBKFM0053 |  |
Working with AV over IP system Support USB keyboard/mouse Support IR/RS232/AUDIO |

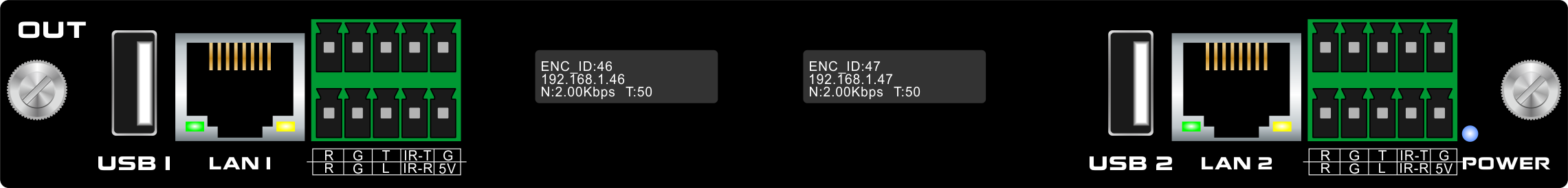

| FM 2-port H.264/265 IP decoding card | FM-OUT-IPX-925 | CBKFM0052 |  |
Working with AV over IP system Support USB keyboard/mouse Support IR/RS232/AUDIO |
|

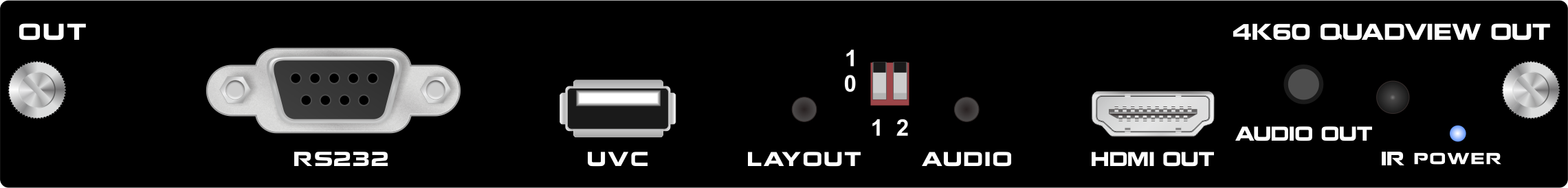

| FM FM 4K60 quad-view output card with RS232 and USB2.0 capture | FM-OUT-QUVC-4K60 | CBKFM0066 |  |
1-port 4K60 HDMI2.0 quad-view output Supports 8 working modes Supports RS232, Layout key, IR remote control layouts, resolution Support 1-port USB3.0 capture by OBS |
|

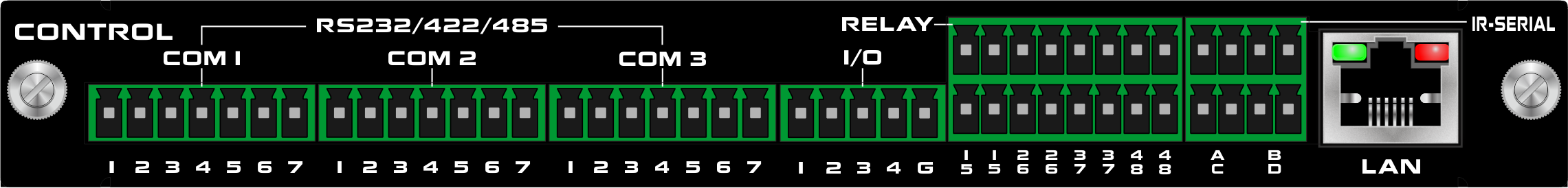

| FM Central control card(M3) | FM-CONTROL | CBKFM0067 |  |
Built-in the matrix chassis 3*RS232/RS422/RS485, 4*IO, 8*RELAY, 4*IR Supports WEB GUI dragdrop programming Supports IP expansion Supports control UI/APP customizing |
|
| FM Central control card(M5) | FM-CONTROL-M5000 | CBKFM0080 |  |
Built-in the matrix chassis 3*RS232/RS422/RS485, 4*IO, 8*RELAY, 4*IR Supports WEB GUI dragdrop programming Supports IP expansion Supports control UI/APP customizing |
