Introduction

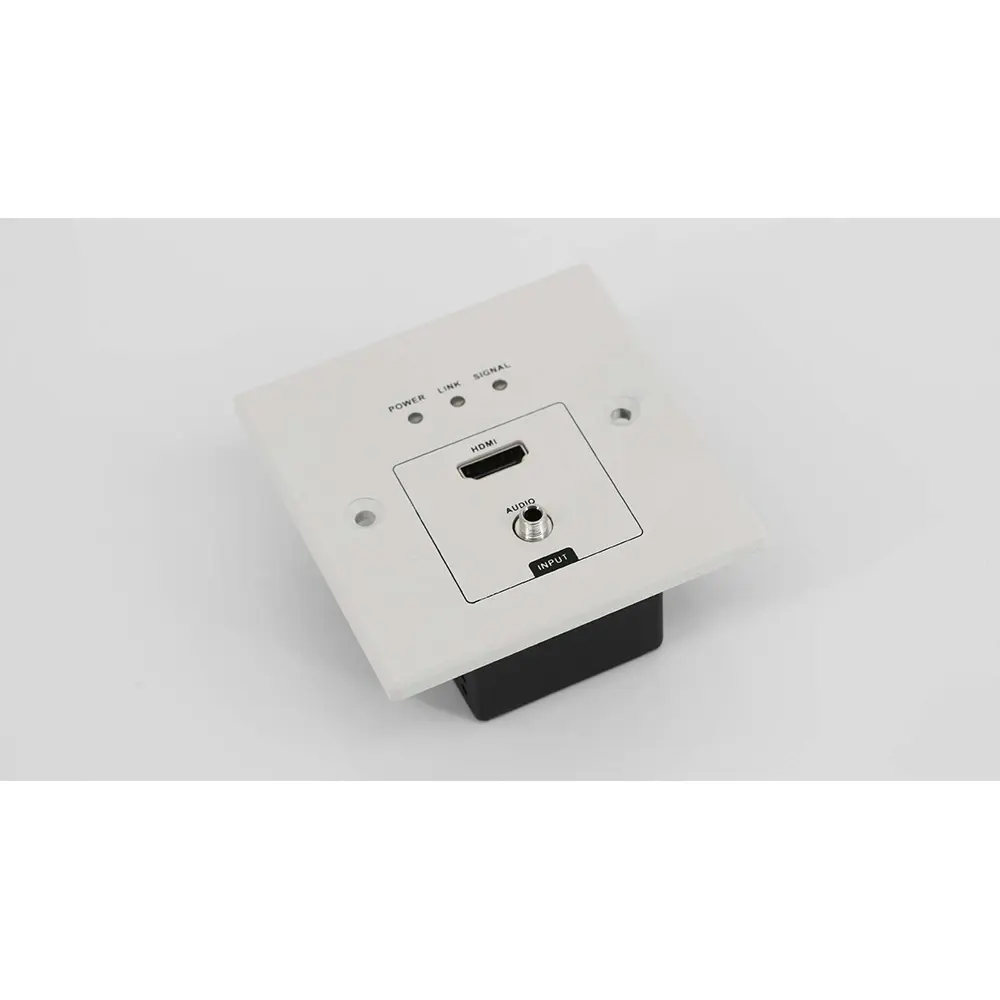

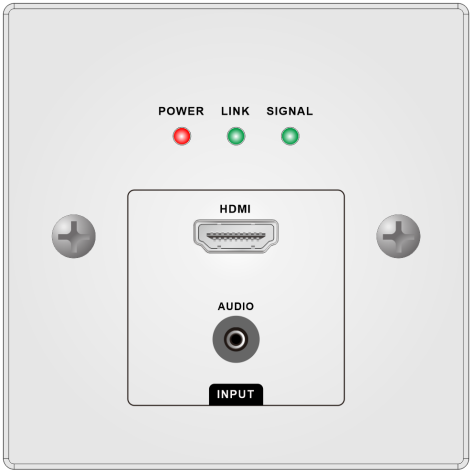

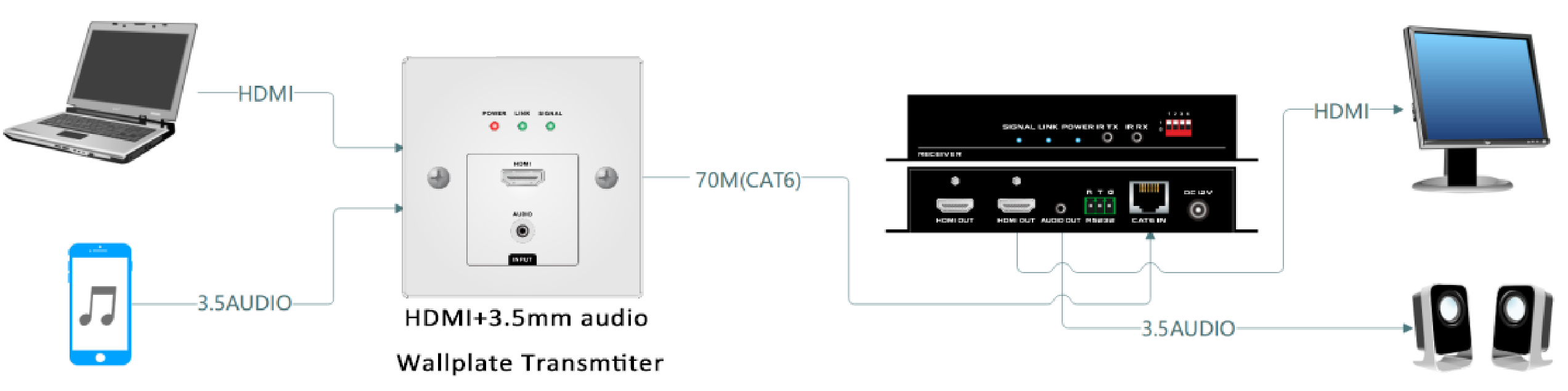

It’s an HDBaseT Wallplate transmitter which supports 1*HDMI and 3.5mm audio inputs, and one switch button. It also supports the EDID management by 4-PIN DIP switch, the HDMI input and the output resolution can up to 4k@60hz(4:4:4), with the POC(power over cable) function, users can only power on the HDBaseT receiver, for the transmission distance it can up to 70m at 1080P60, and for 4K60Hz it can up to 35m over single Cat5e/6/7 cable. It’s popularly used in the small meeting room, classroom or other long distance transmission applications.
Features
- Supports HDMI and 3.5mm audio input
- Supports HDCP2.3, HDMI2.0
- Transmission distance: 220ft/70m at 1080P60, 110ft/35m at 4K60 via Cat5e/Cat6
- Supports EDID management
- Supports POC(power over Cable)
- Supports multiple panel size(Decora/ US 1-gang, UK 1-gang)
- LED working indicator
Specification
| Product name | HDMI+3.5mm audio inputs HDBaseT Wallplate Transmitter |
| Input | 1*HDMI, 1*3.5mm audio |
| Output | 1*HDBaseT(RJ45) |
| Control | Auto sources detection |
| Transmission distance | 220ft/70m at 1080P60, 110ft/35m at 4K60 via Cat5e/Cat6 |
| Bandwidth | 10.2Gbps |
| Power Supply | DC 12V 1.5A |
| Dimension (WxHxD) | 88x88x38mm |
| Product weight | 200g/0.45lb |
| Operating Temperature | -10℃ to 40℃ |
| Storage Temperature | -25℃ to 55℃ |

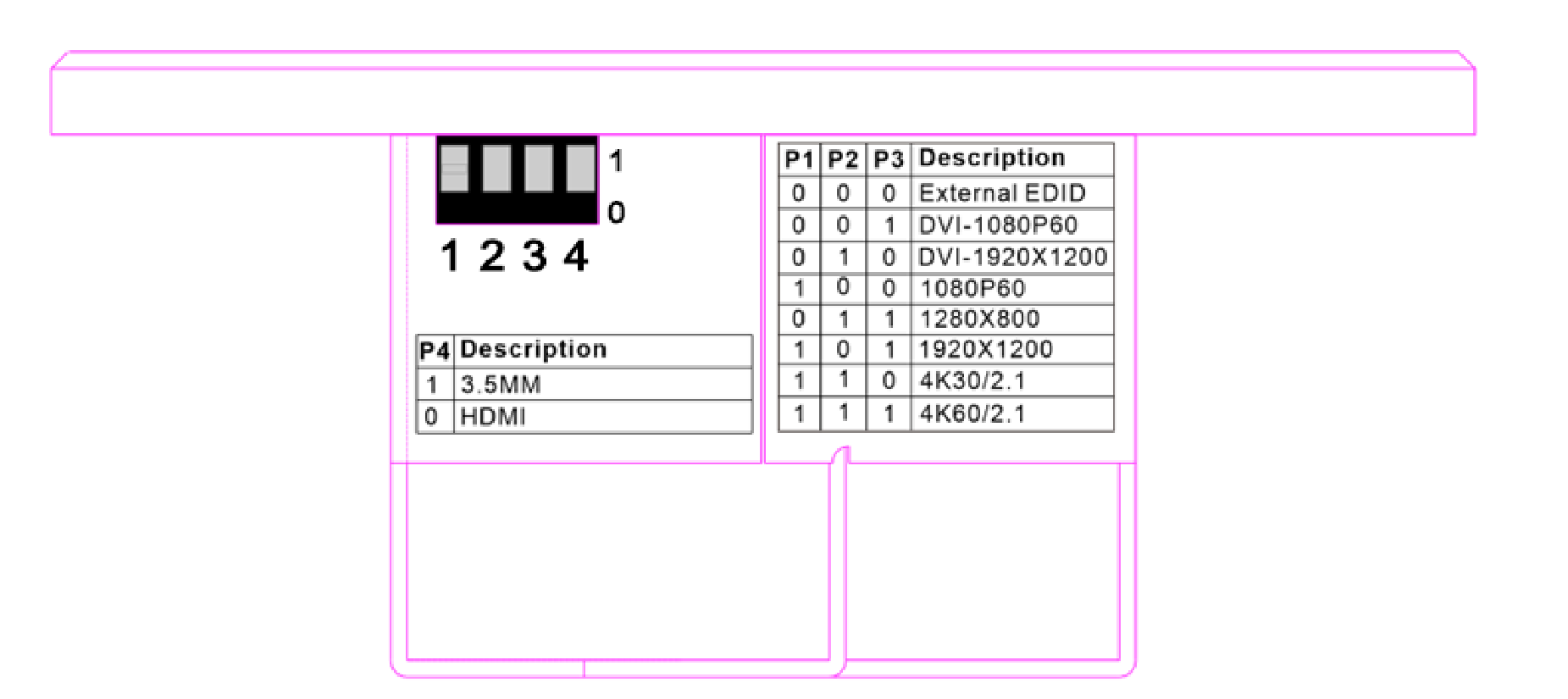

EDID Management DIP switch
| DIP1 | DIP2 | DIP3 | Description | DIP4 | |
| 0 | 0 | 0 | External EDID | 1 | 3.5MM |
| 0 | 0 | 1 | DVI-1080P60 | 0 | HDMI |
| 0 | 1 | 0 | DVI-1920*1200P60 |  |
|
| 1 | 0 | 0 | 1080P60 | ||
| 0 | 1 | 1 | 1280*800 | ||
| 1 | 0 | 1 | 1920*1200 | ||
| 1 | 1 | 0 | 4K30/2.1 | ||
| 1 | 1 | 1 | 4K60/2.1 | ||
