Introduction
It’s an HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio inputs, and one switch button. It also supports the input sources auto detection and switch. The HDMI input and the output resolution can up to 4k@30hz, with the POC(power over cable) and POE function, users can only power on the HDBaseT receiver, for the transmission distance it can up to 70m at 1080P60, and for 4K60Hz it can up to 35m over single Cat5e/6/7 cable. It’s popularly used in the small meeting room, classroom or other long distance transmission applications.
Features
- Supports HDMI and VGA input
- Supports HDCP1.4
- Distance: 220ft/70m at 1080P60, 110ft/35m at 4k@30hz via Cat5e/Cat6
- Supports inputs sources auto detection and switching
- Supports the Switch button to switch
- Supports POC(power over Cable), POE function
- Supports multiple panel size(Decora/ US 1-gang, UK 1-gang)
- LED working indicator
Specification
| Product name | HDMI+VGA HDBaseT Wallplate Transmitter |
| Input | 1*HDMI, 1*VGA+3.5mm audio, 1*Switch button |
| Output | 1*HDBaseT(RJ45) |
| Control | Switch Button or auto sources detection/switch |
| Transmission distance | 220ft/70m at 1080P60, 110ft/35m at 4k@30hz via Cat5e/Cat6 |
| Bandwidth | 10.2Gbps |
| Power Supply | DC 12V 1.5A |
| Dimension (WxHxD) | Product back size: 74x45x32mm/ 2.83×1.77×1.26inch |
| Decora front panel size: 103x46mm/ 4.06×1.81inch | |
| Product weight | 200g/0.45lb |
| Operating Temperature | -10℃ to 40℃ |
| Storage Temperature | -25℃ to 55℃ |

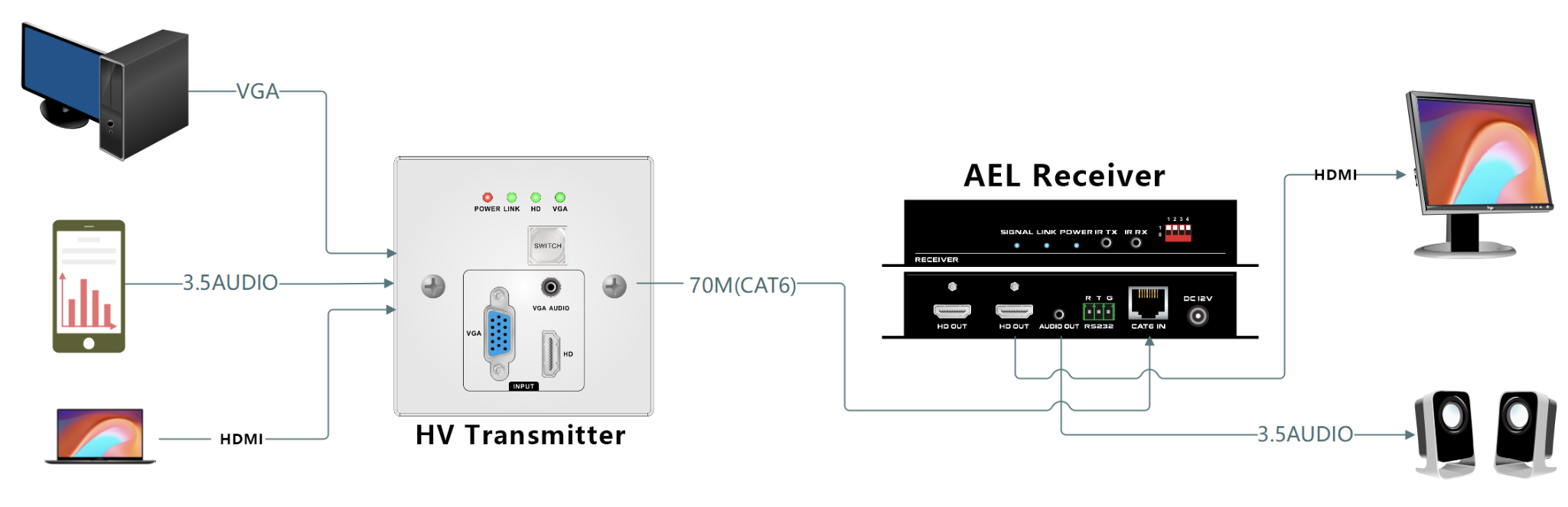

Option 1: works with the HDBaseT receiver to regular TV

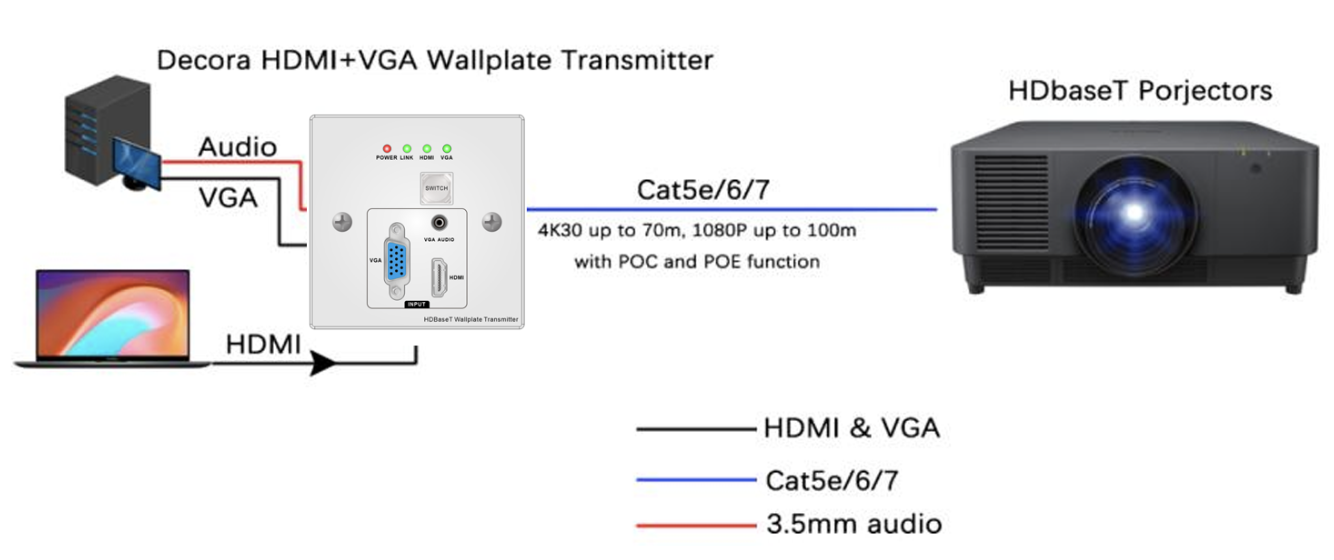

Option 2: works with the HDBaseT Projector(need to have POC off)

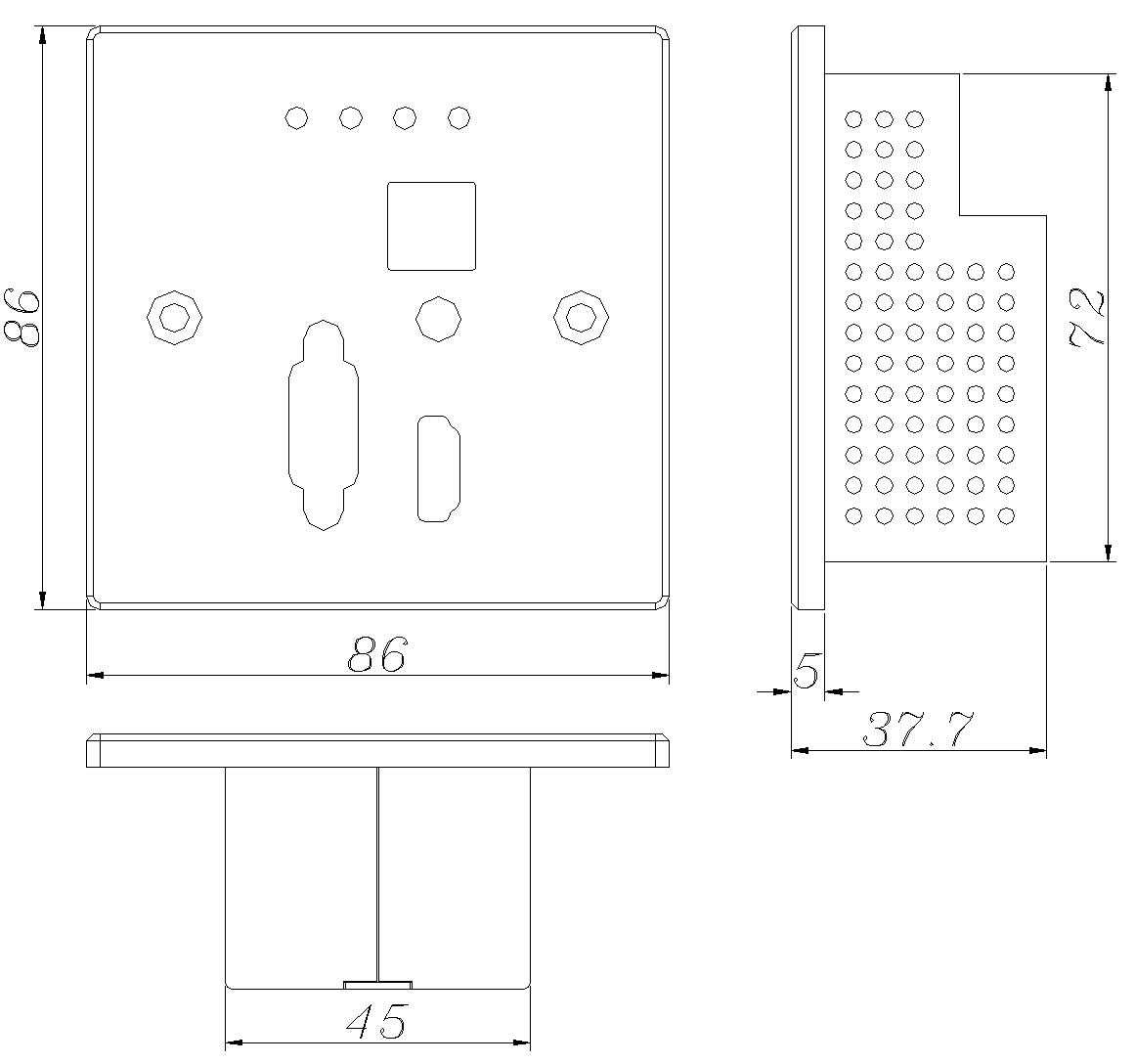

Production size(86x86x38mm)
