Introduction
This is the IP manage controller box to work with the 4K60 444 AV over IP system to support WEB GUI and APP controls. It’s with 3*COM ports, 1*LAN port with POE.
The 4K@604:4:4 AV over IP WEB GUI Controller box (Model IPM-MG) supports WEB GUI and APP control, POE power, and COM ports for device management. Get a custom quote today!
The 4K@604:4:4 AV over IP WEB GUI Controller box (Model IPM-MG) is a dedicated management solution that supports WEB GUI configuration and APP control
This 4K@604:4:4 AV over IP WEB GUI Controller box features an LCD screen for IP address checking and POE power support.
Features
- Support WEB GUI for the system configuration and management
- Support APP control
- Support POE
- Support the COM ports to control other devices
- Support LCD screen to check the IP address
Specification

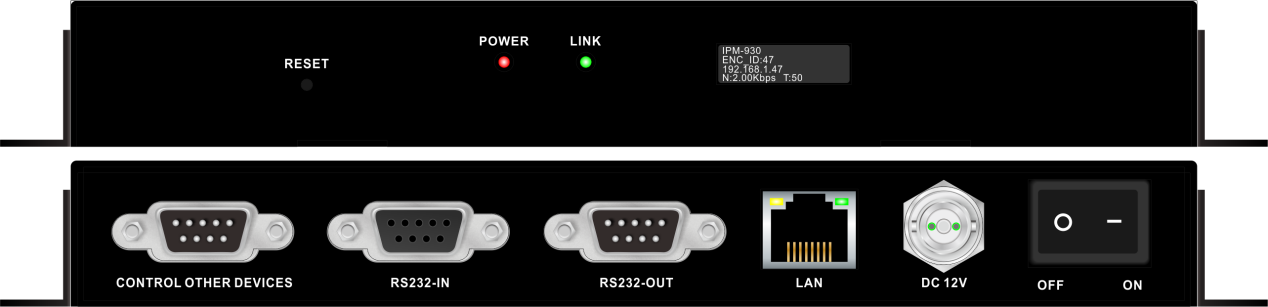

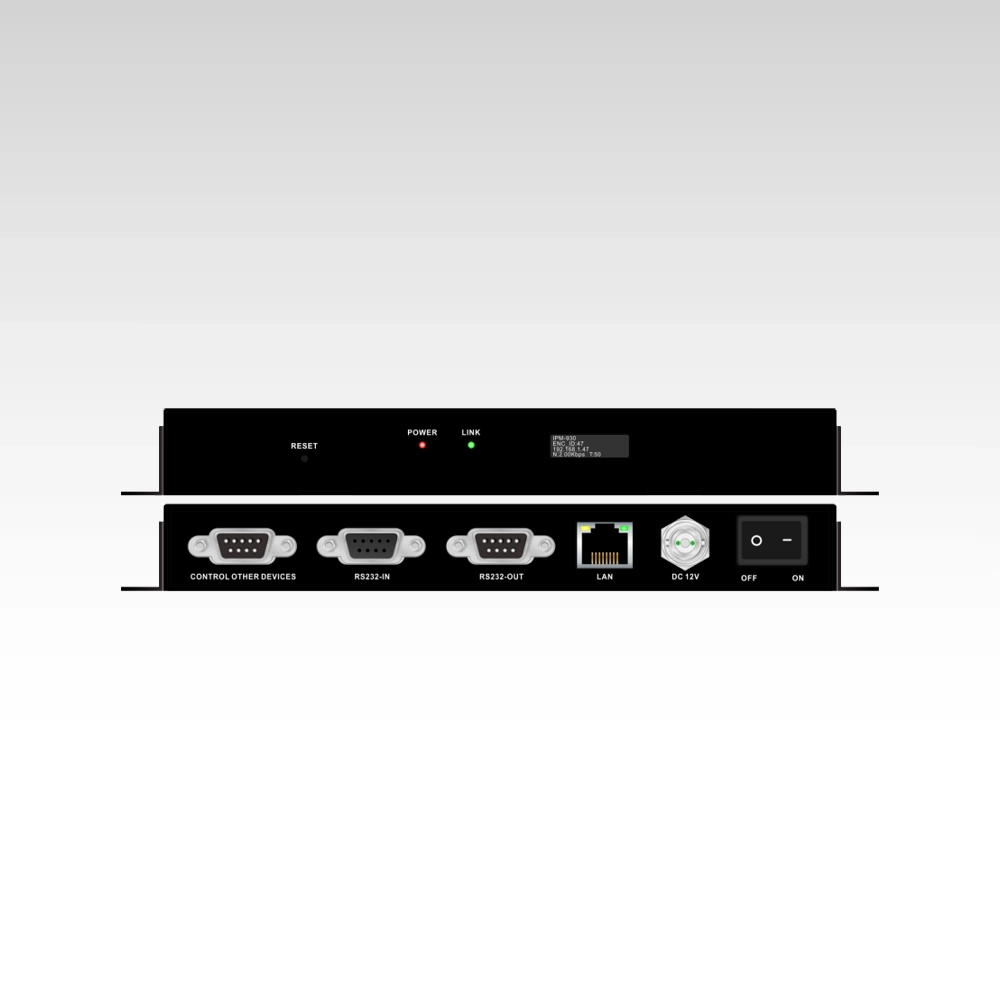

| Interfaces | |
| DB9 COM(Control Other devices) | Reserved For control the other devices by RS232 |
| RS232-IN | Reserved For the RS232 to control this box |
| RS232-OUT | Reserved For the RS232 control loop out to control other devices |
| LAN | For the WEB GUI/APP control(Default IP 169.254.0.80) |
| DC12V | 12V1.5A DC power supply |
| OFF/ON | Power switch |
| RESET | To reset this IP controller box |
| POWER | Power indicator |
| LINK | For the LAN cable connections status |
| General | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing |
| Power Supply | DC 12 V 1.5A |
| Power Consumption | 8.5W (Max.) |
| ESD Protection | Human body model:
|
| Surge Protection | Voltage: ±1 kV |
| Product Dimensions
(W x H x D) |
|
| Net Weight | 1.63 lbs (0.74 kg) |
