VPX-5100

CONSULTA

Introducción

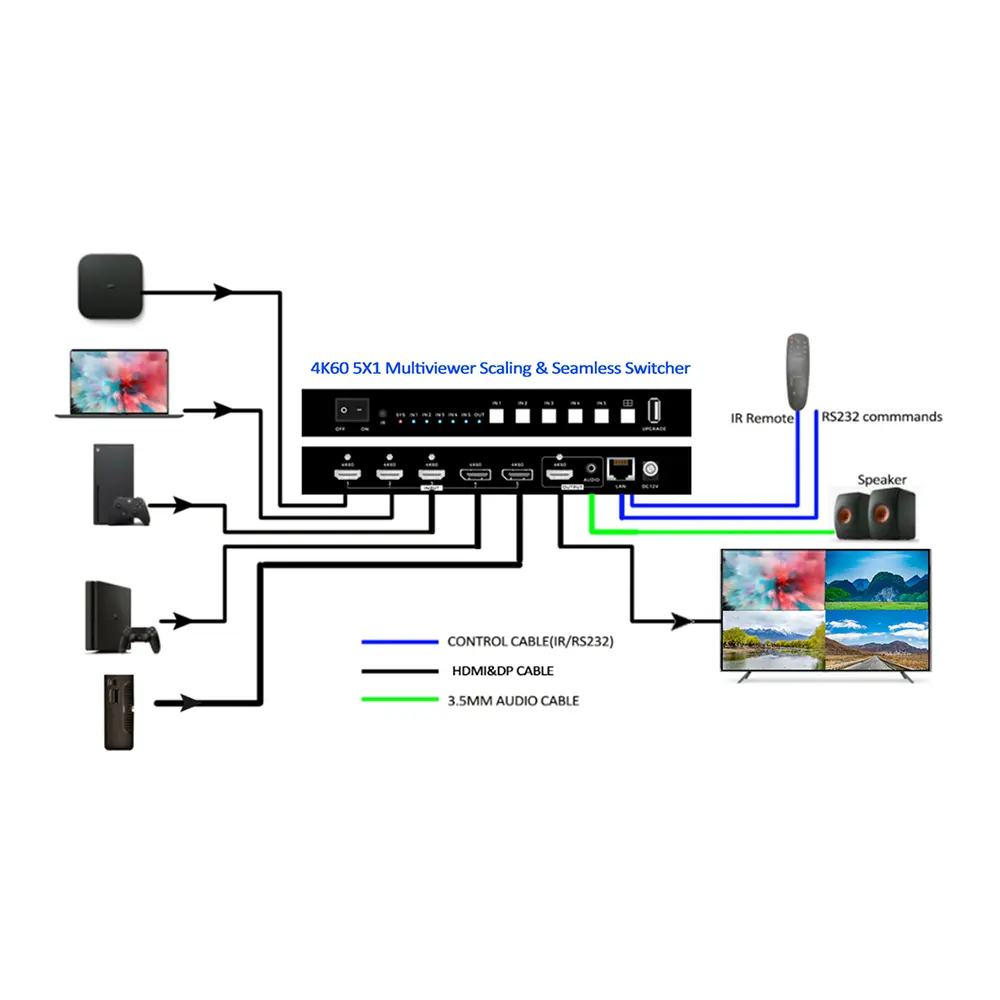

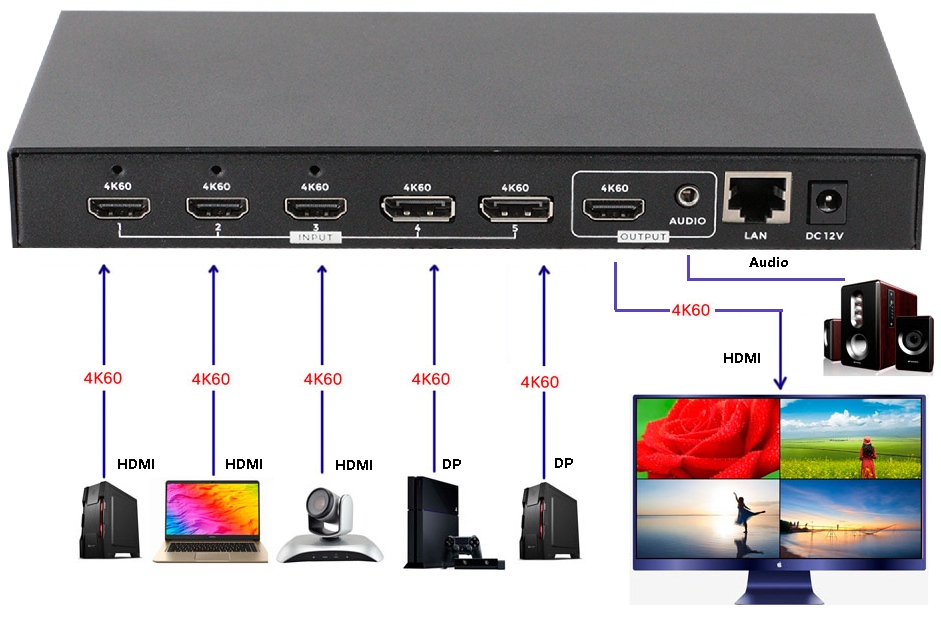

This product is a real 4K60 multiviewer switcher with seamless switching(*when single-window mode) and and scaling function, it supports 3 HDMI2.0 inputs, 2 DisplayPort inputs and 1 HDMI2.0 output with 3.5mm audio out. The resolution of both inputs and output can up to 4K@60hz 4:4:4, the bandwidth can up to 18Gbps. Users can use the front panel push buttons, IR remote control, and RS232 codes to control the unit.

Características

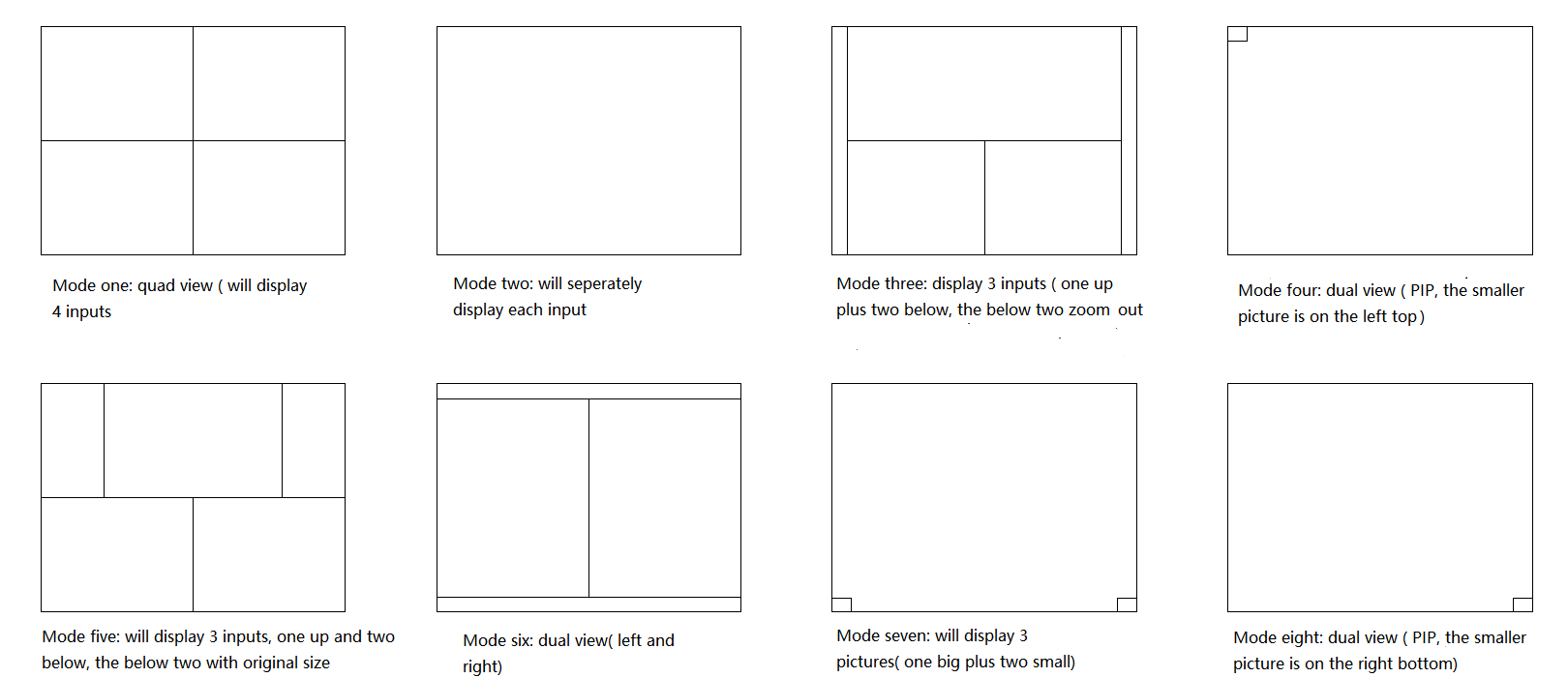

Support 8 working modes/layouts
Support HDMI2.0, and the resolution up to 3840*2160@60Hz
Support 4K60 inputs(3*HDMI, 1*DP) and 4K60 output
Support seamless switching even when different resolutions inputs

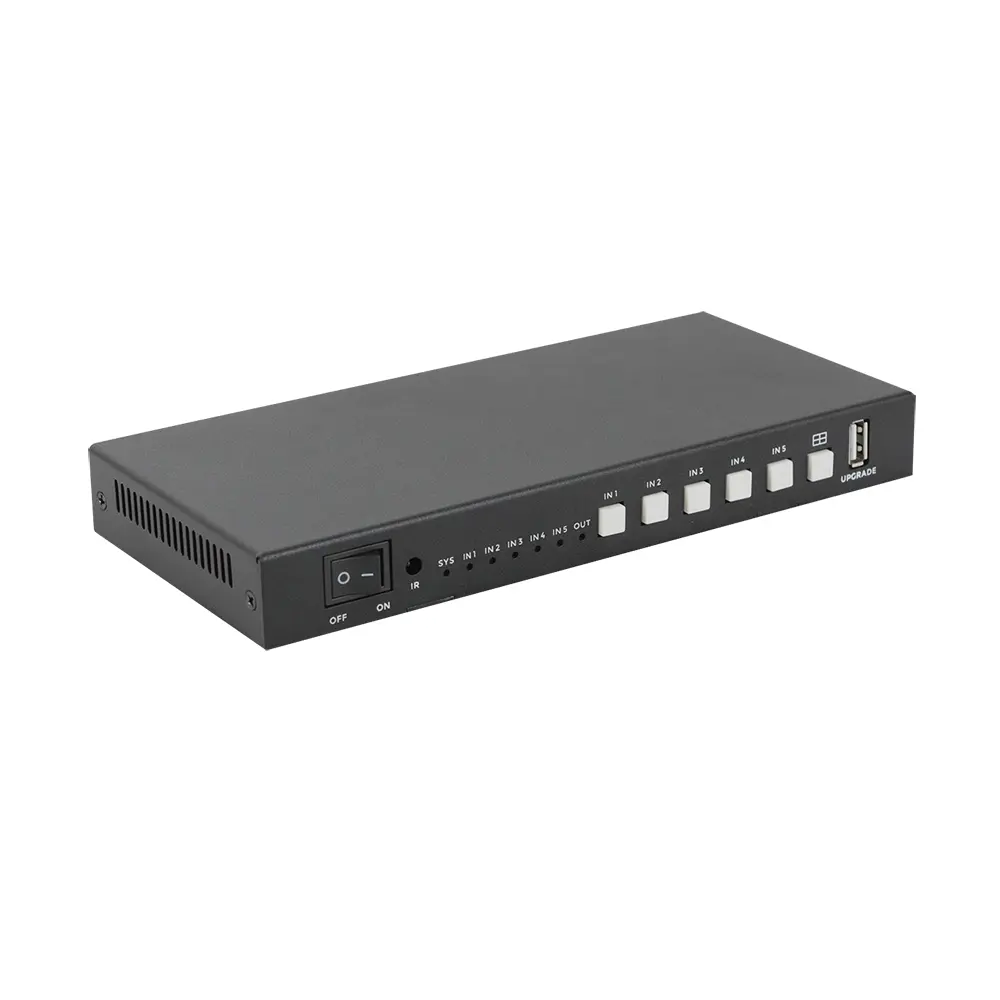

Support the front panel push-button, IR remote and the RS232 control
Support USB-A upgrading

Especificación

Vídeo

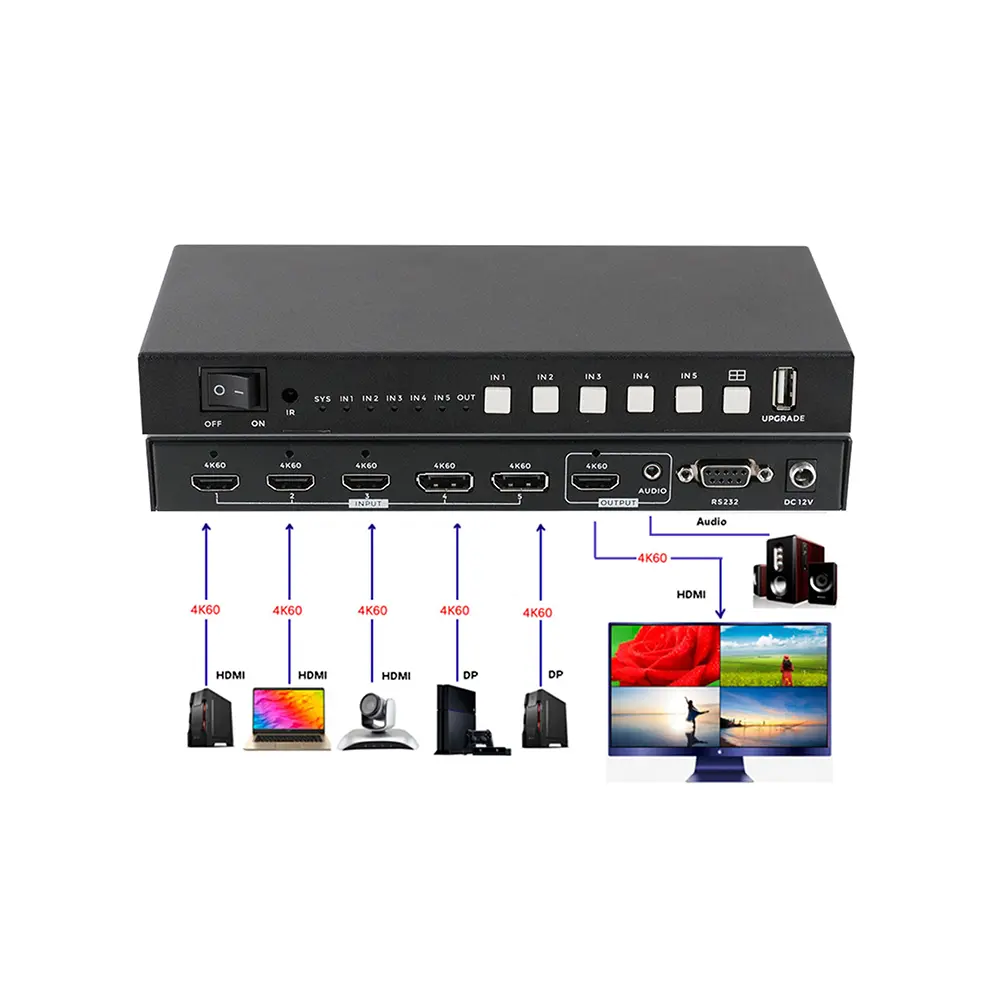

Input port	3* HDMI2.0, 2* DP1.2
Input resolution	HDMI2.0: 640×480⁸, 800×600⁸, 1024×768⁸, 1280×768⁸, 1280×800⁸, 1280×1024⁸, 1360×768⁸, 1366×768⁸, 1440×900⁸, 1400×1050⁸, 1600×1200⁸, 1680×1050⁸, 1920×1200⁸, 720×480⁸ (480p), 720×576⁶ (576p), 1280×720⁵ (720p30), 1280×720⁶ (720p50), 1280×720⁸ (720p60), 1920×1080² (1080p24), 1920×1080³ (1080p25), 1920×1080⁵ (1080p30), 1920×1080⁶ (1080p50), 1920×1080⁸ (1080p60), 3840×2160⁵(2160p30),3840×2160⁶ (2160p50), 3840×2160⁸ (2160p60) DP1.2: 640×480⁸, 800×600⁸, 1024×768⁸, 1280×768⁸, 1280×800⁸, 1280×1024⁸, 1360×768⁸, 1366×768⁸, 1440×900⁸, 1400×1050⁸, 1600×1200⁸, 1680×1050⁸, 1920×1200⁸, 720×480⁸ (480p), 720×576⁶ (576p), 1280×720⁵ (720p30), 1280×720⁶ (720p50), 1280×720⁸ (720p60), 1920×1080² (1080p24), 1920×1080³ (1080p25), 1920×1080⁵ (1080p30), 1920×1080⁶ (1080p50), 1920×1080⁸ (1080p60), 3840×2160⁵(2160p30),3840×2160⁶ (2160p50), 3840×2160⁸ (2160p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Output port	1* HDMI2.0
Resolución de salida	HDMI2.0: 1920×1080⁶ (1080p50), 1920×1080⁸ (1080p60), 3840×2160⁵ (2160p30) , 3840×2160⁶ (2160p50) , 3840×2160⁸ (2160p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Audio
Input port	3x HDMI, 2*DP
Input audio signal	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output port	1* HDMI2.0, 1* Analog Audio(3.5mm audio)
Output audio signal	RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Controlar

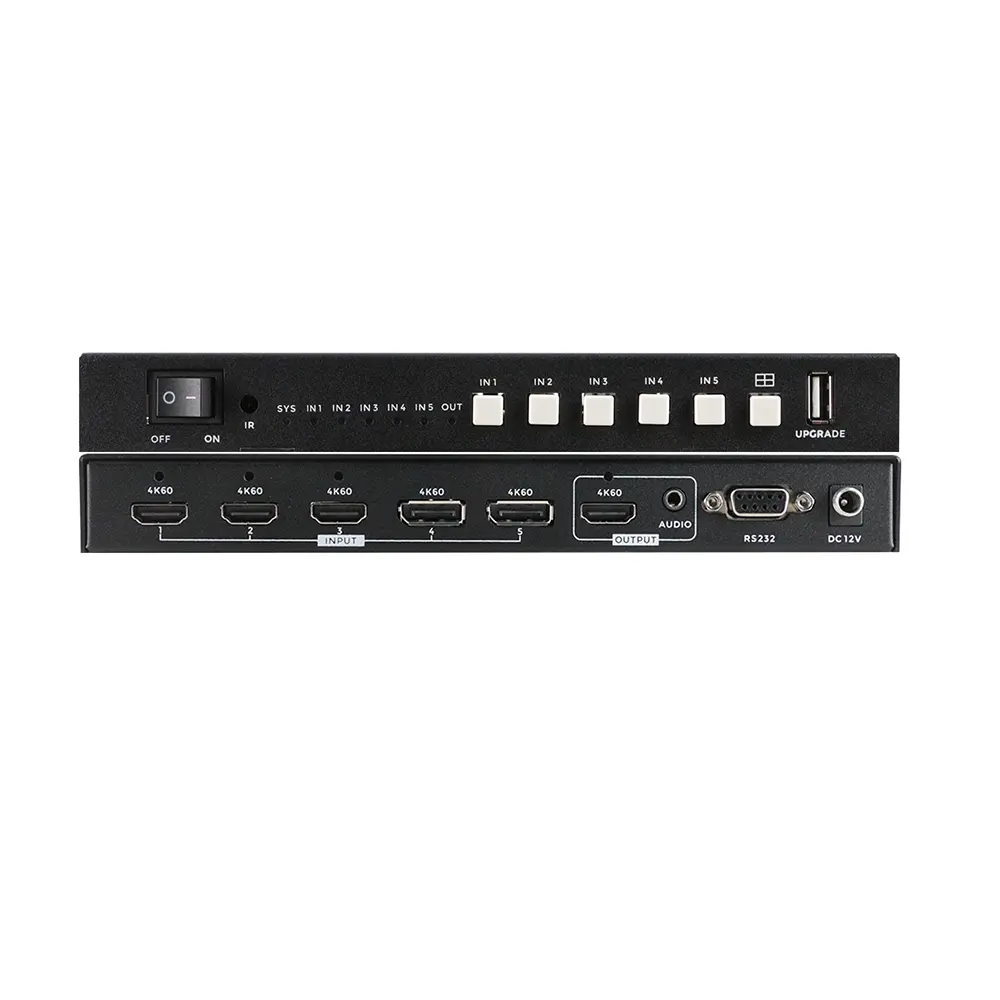

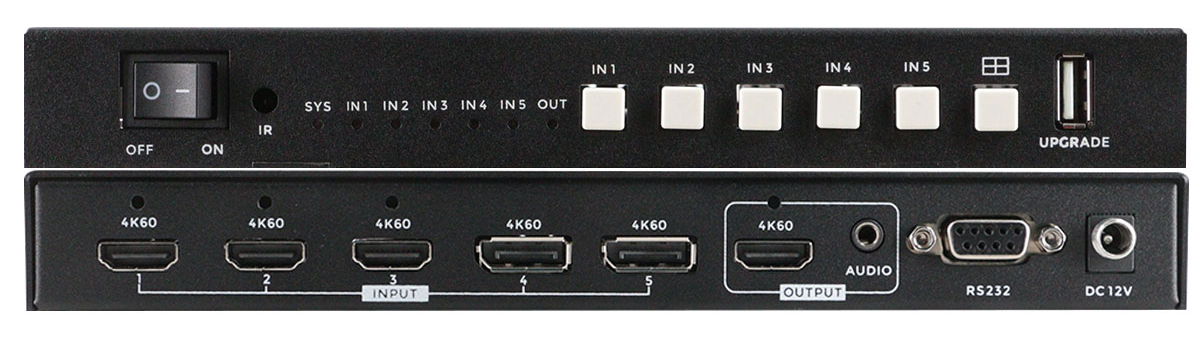

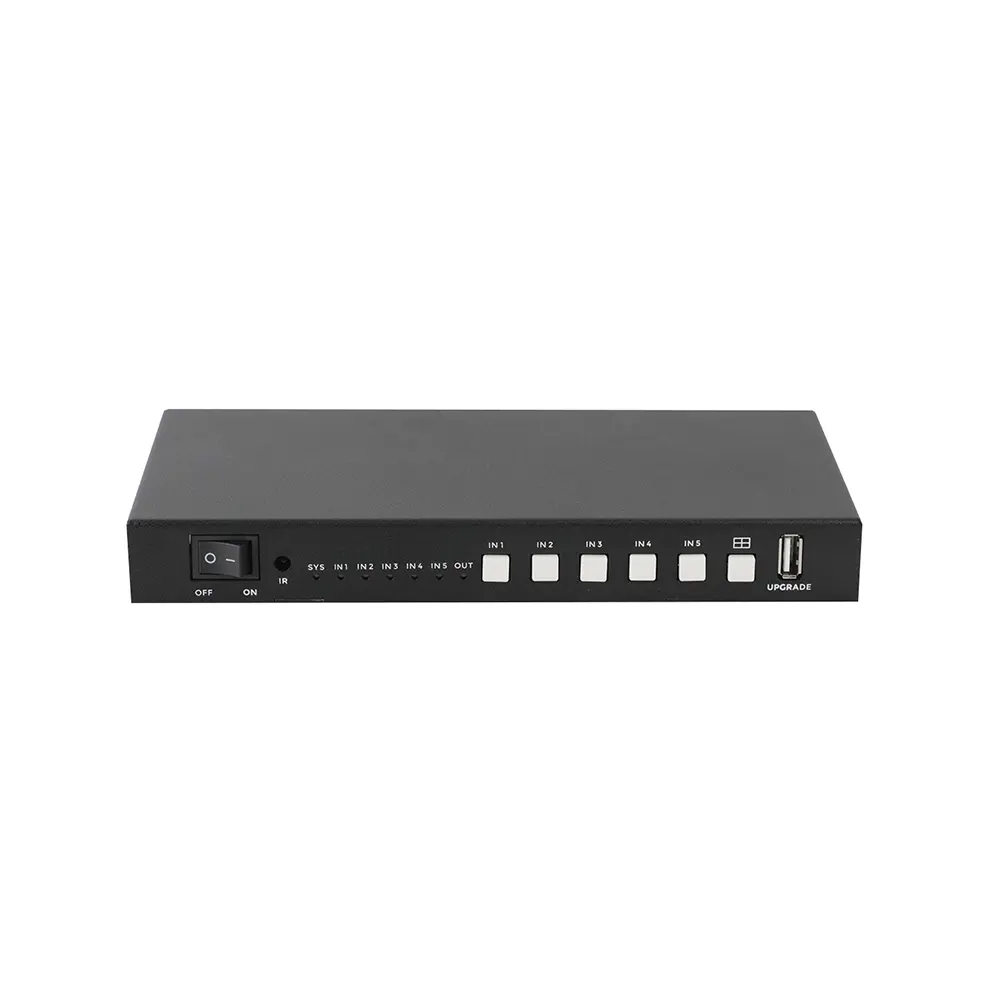

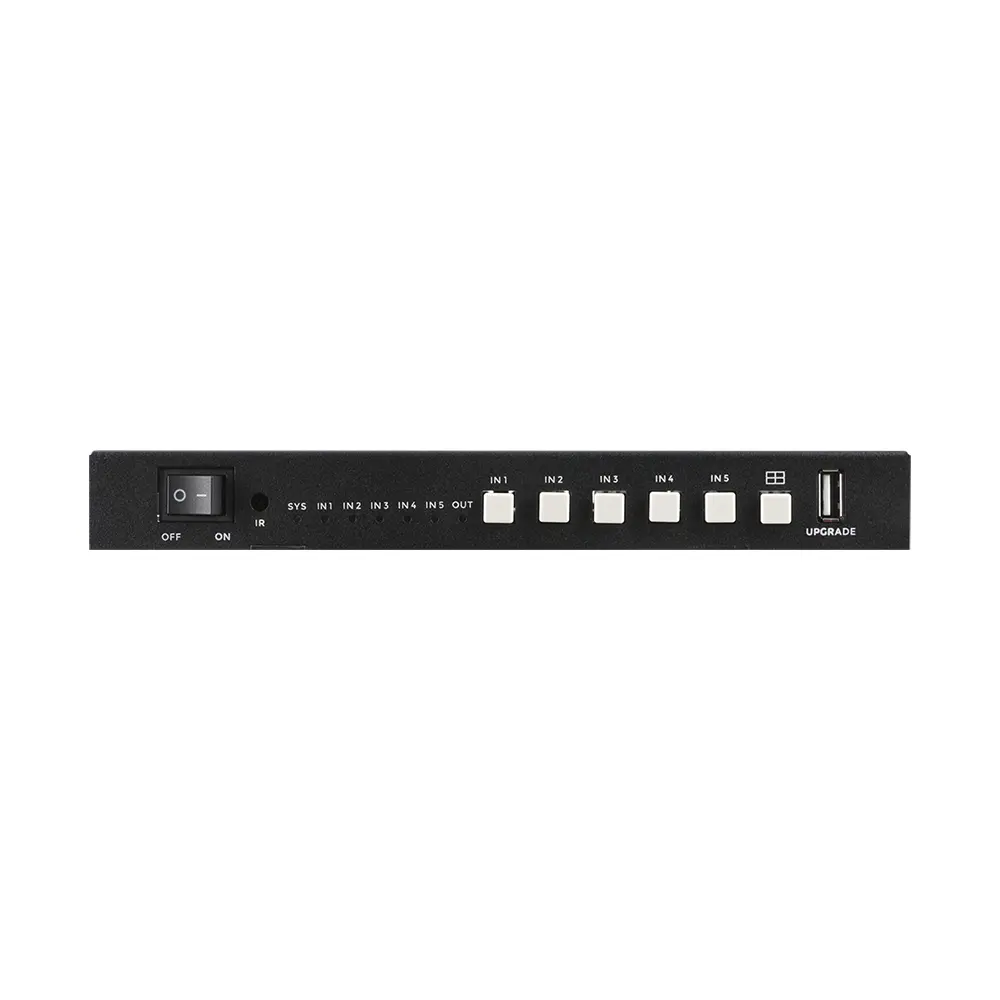

Front control	IN1: Input 1 IN2: Input 2 IN3: Input 3 IN4: Input 4 IN5: Input 5	Single-view mode
Front control	田: Default input 1 to input 4	Quad-view mode

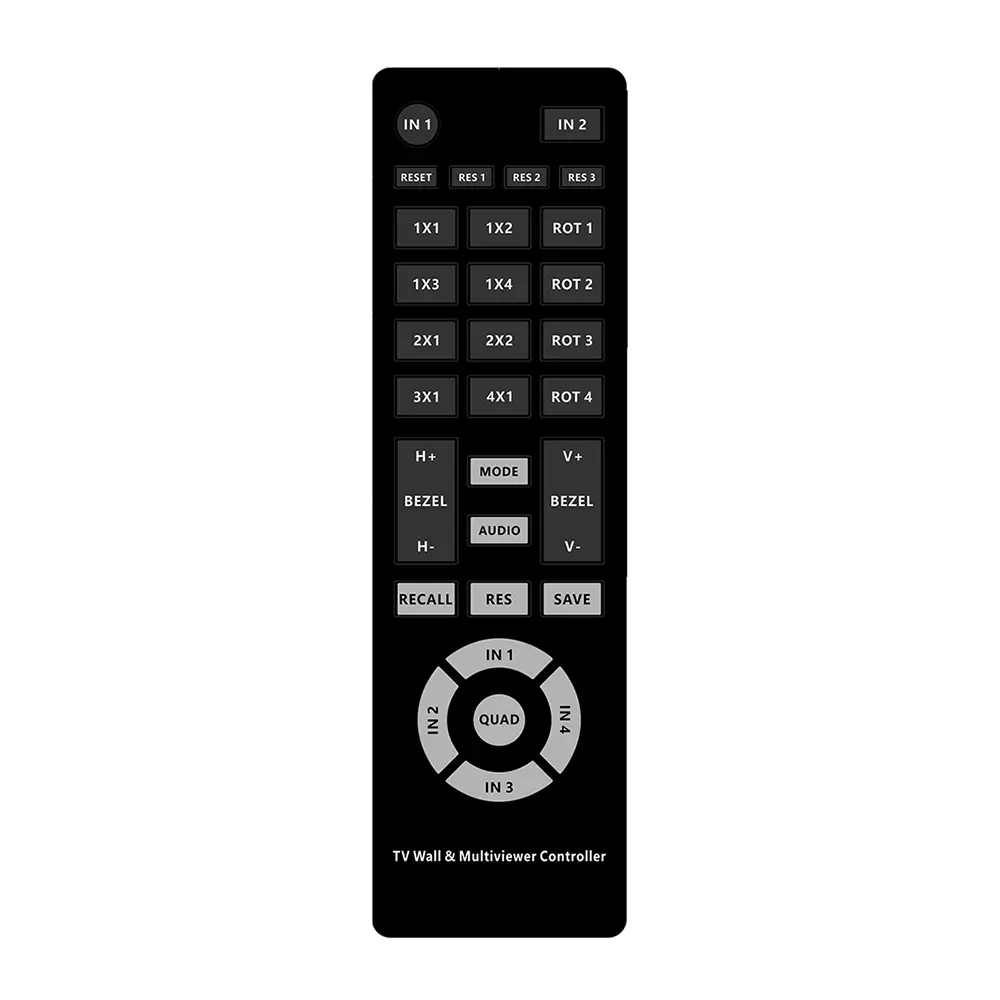

IR	All the functions of the button can be realized through the remote control, and it also supports fast switching.
RJ45	DB9, serial port control
Others
Temperatura de funcionamiento	0 to +45 C (32 to + 113 F)
Temperatura de almacenamiento	-20 to +70 C (-4 to + 158 F)
Humedad	10% to 90%
Static Protection	Human body discharge mode: ±8kV (air gap discharge)/ ±4kV (contact discharge)
Power adapter	DC 12 V 1.5 A
Power consumption	10W(Max)
Product size	Without the ears
Net	2kg
