Introduction

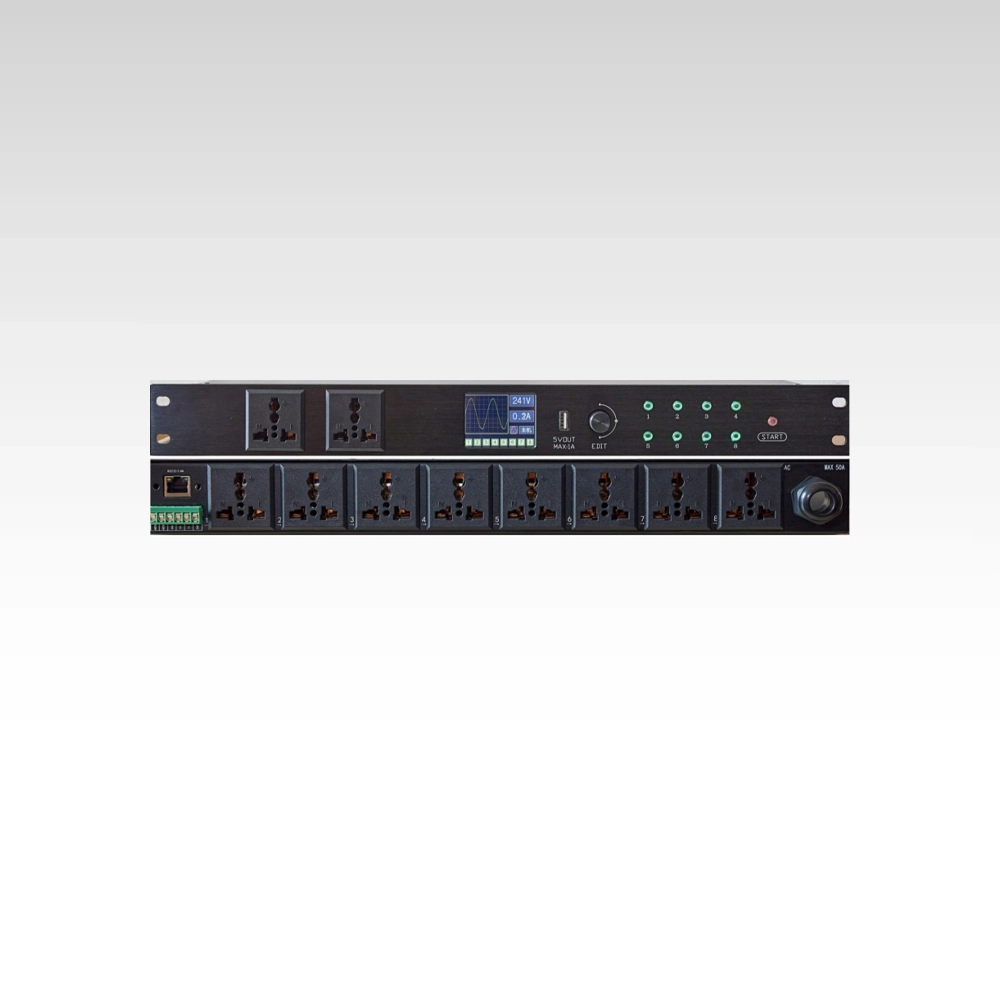

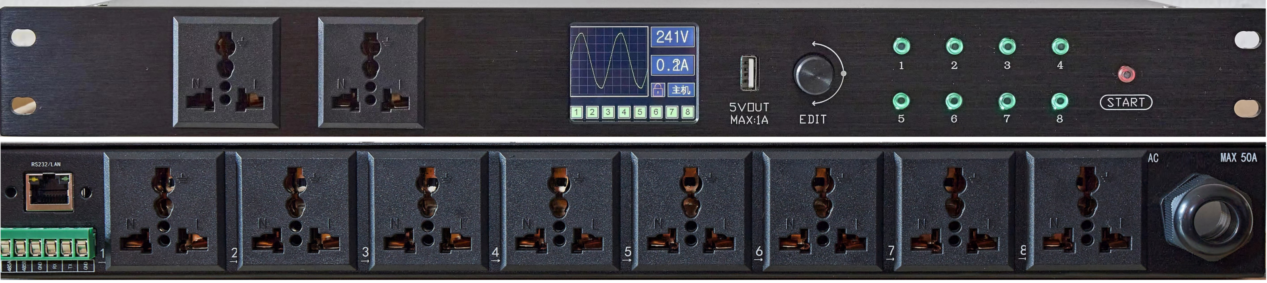

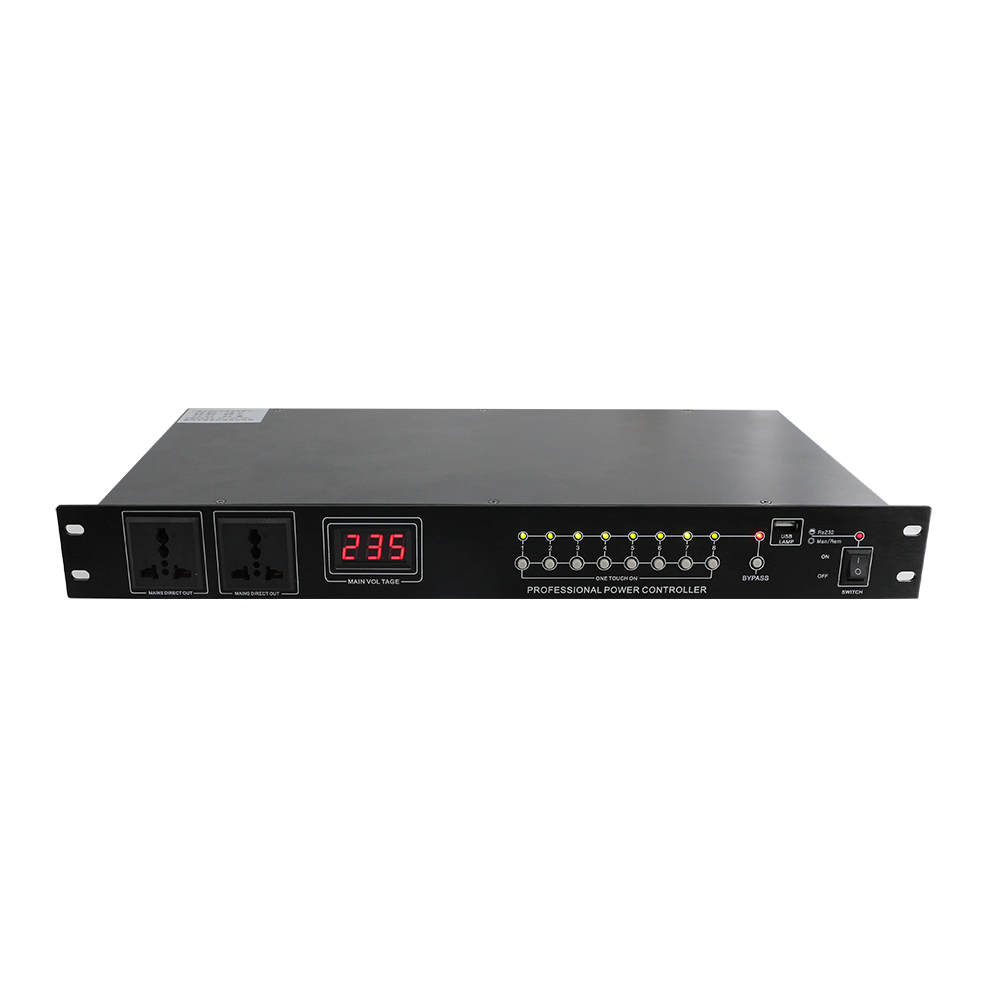

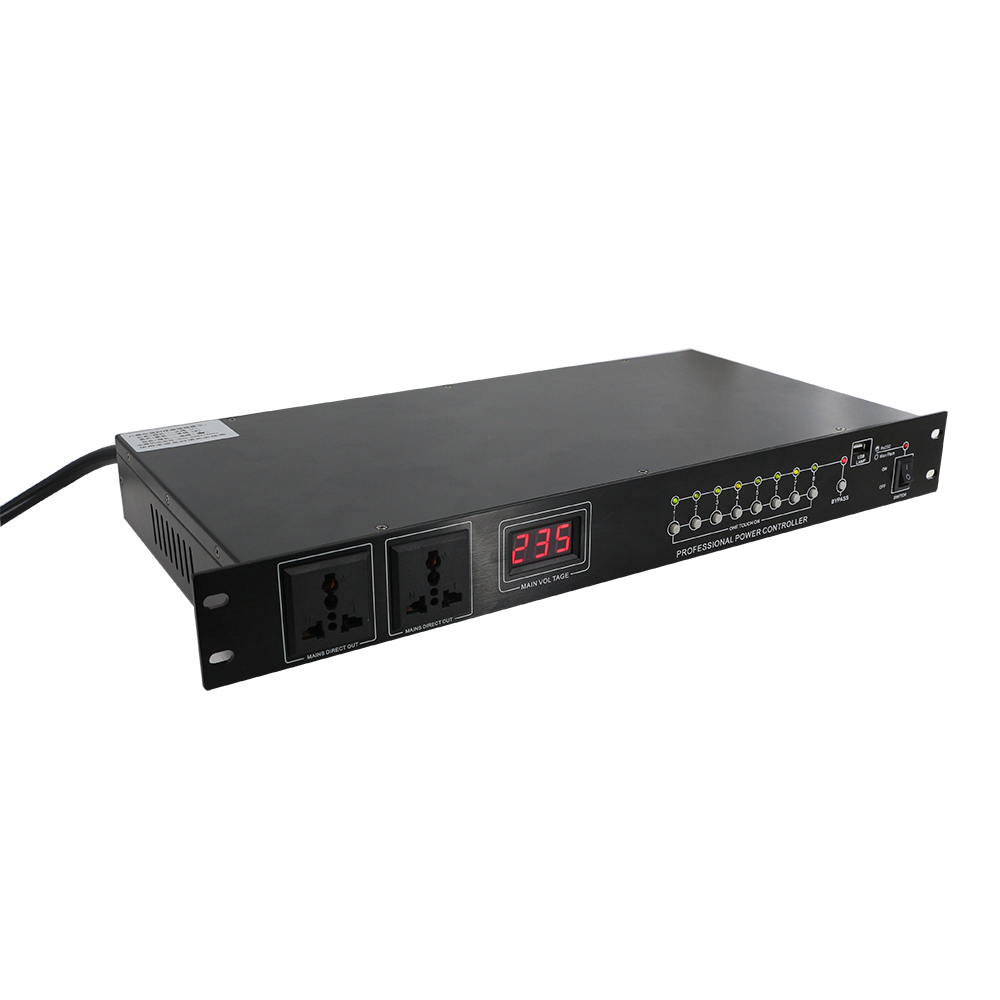

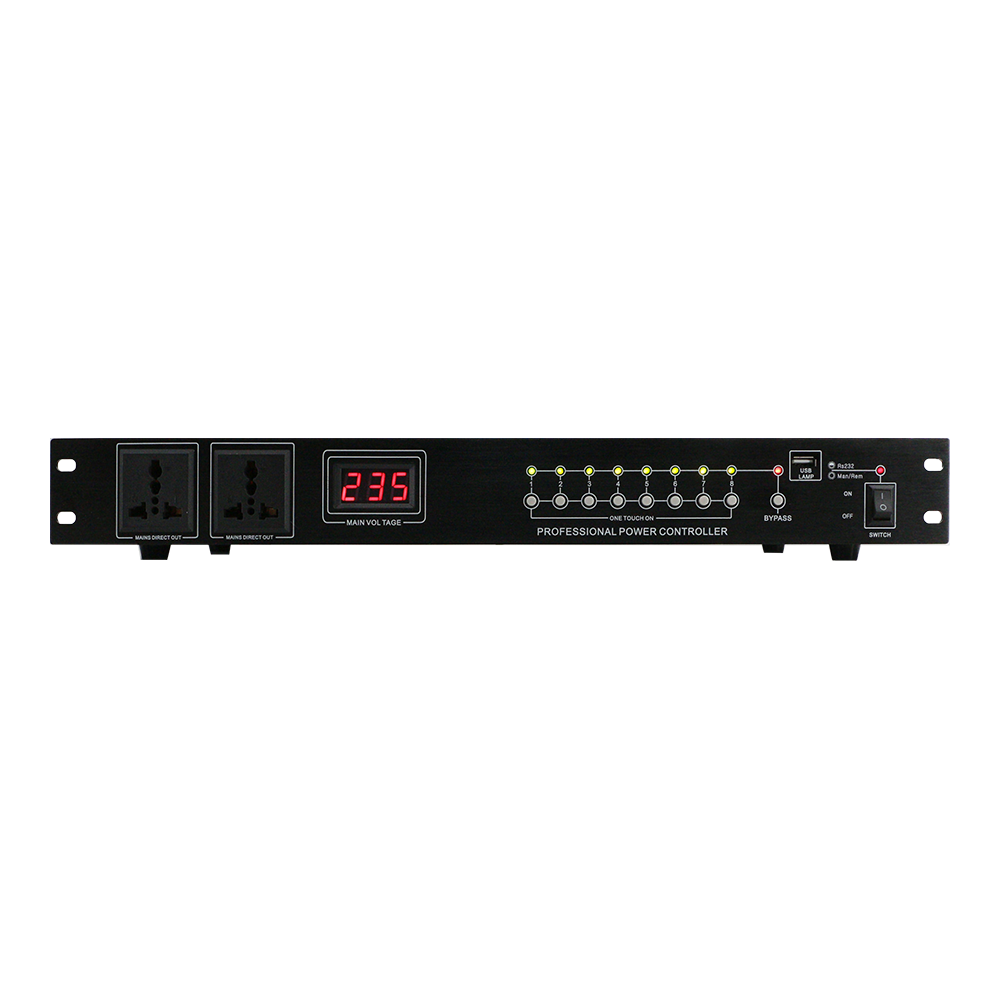

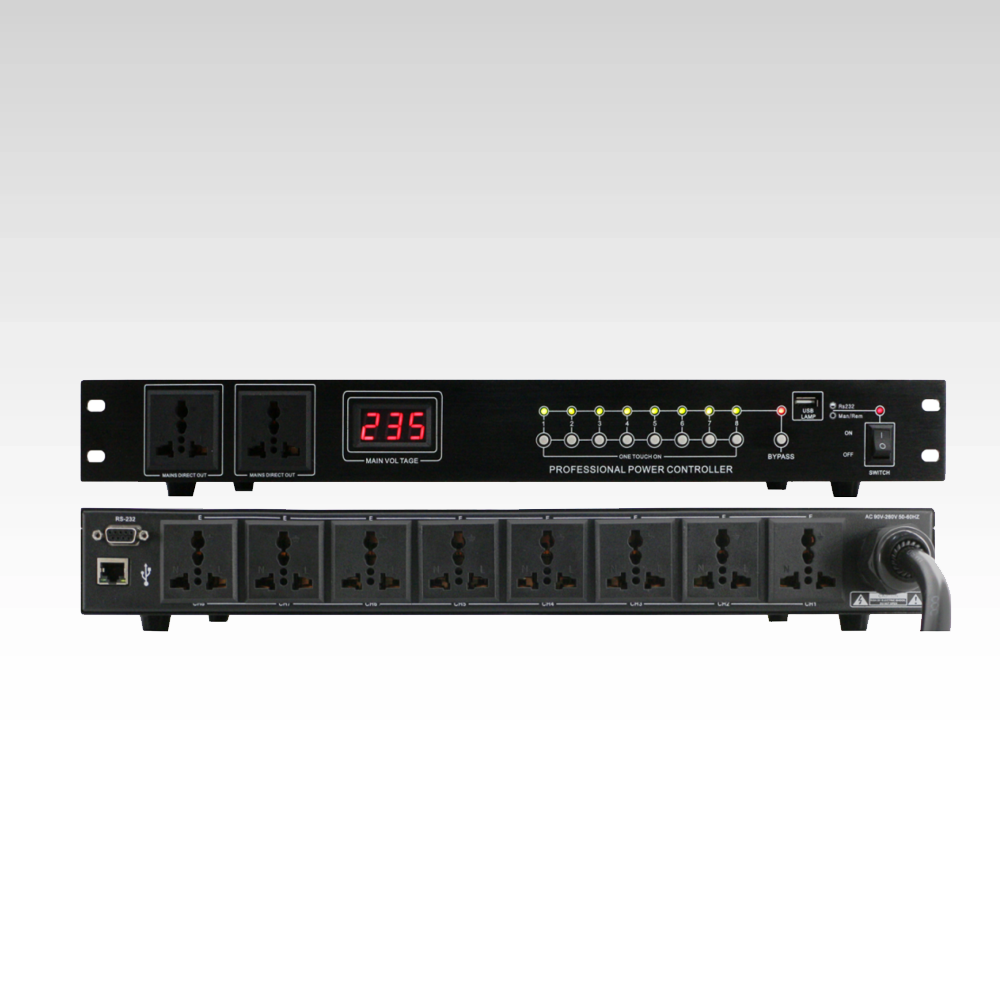

This machine is a compact and powerful intelligent timepiece with DSP as the processor
Sequencer, it integrates the functions of a variety of conventional products in a box with a height of only 1U rack, can support the RS232, UDP and push buttons control.
Features
- 8 controllable power outputs + 2 constant power outputs
- 1 USB 5V power output
- Three control modes: RS232 / UDP / front-panel buttons
- Customizable delay for each channel (up to 999 seconds)
- PC software control support
Specification
| Technical |
| Rated output voltage |
110~260V, 50Hz |
| Controlled ports |

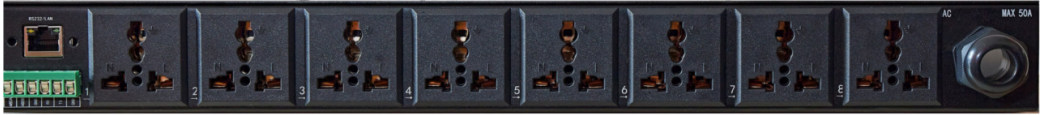

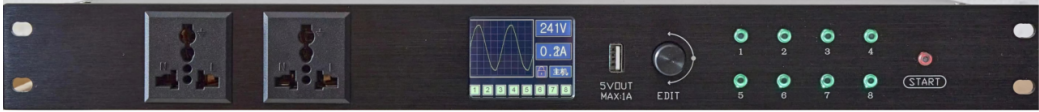

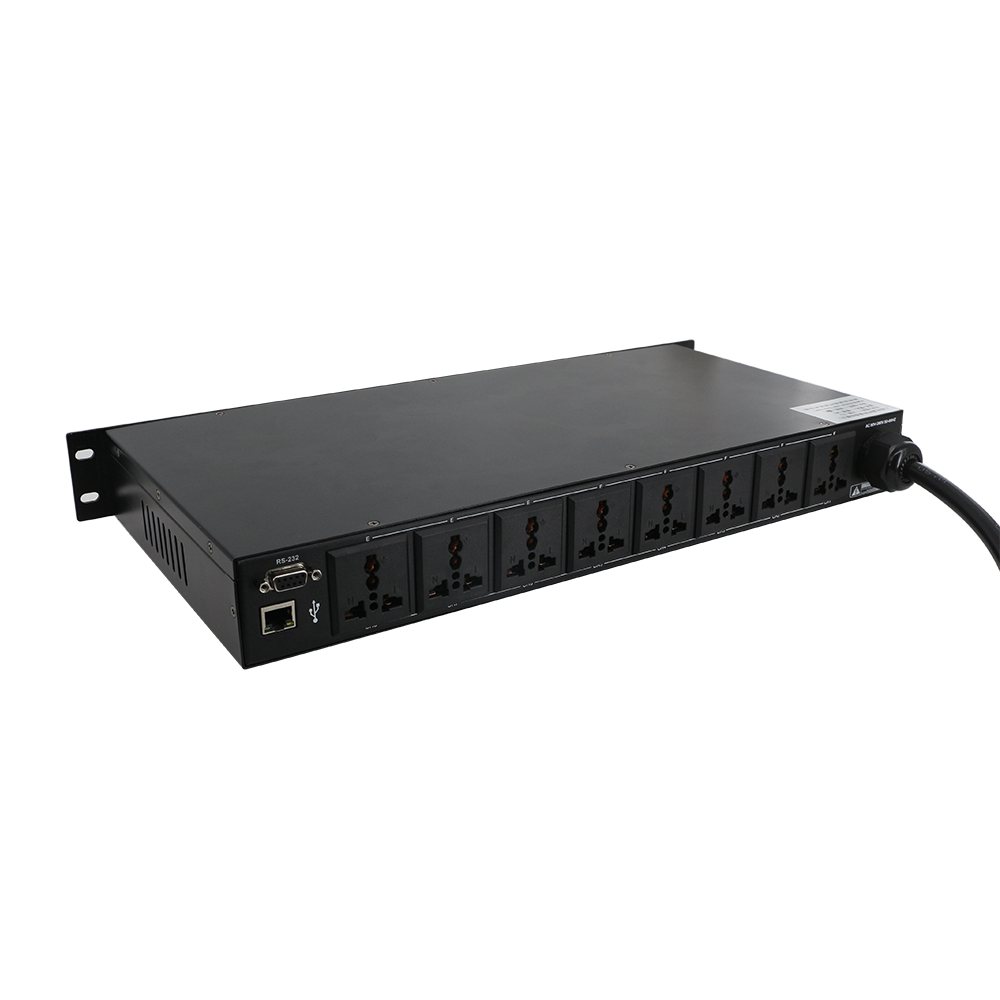

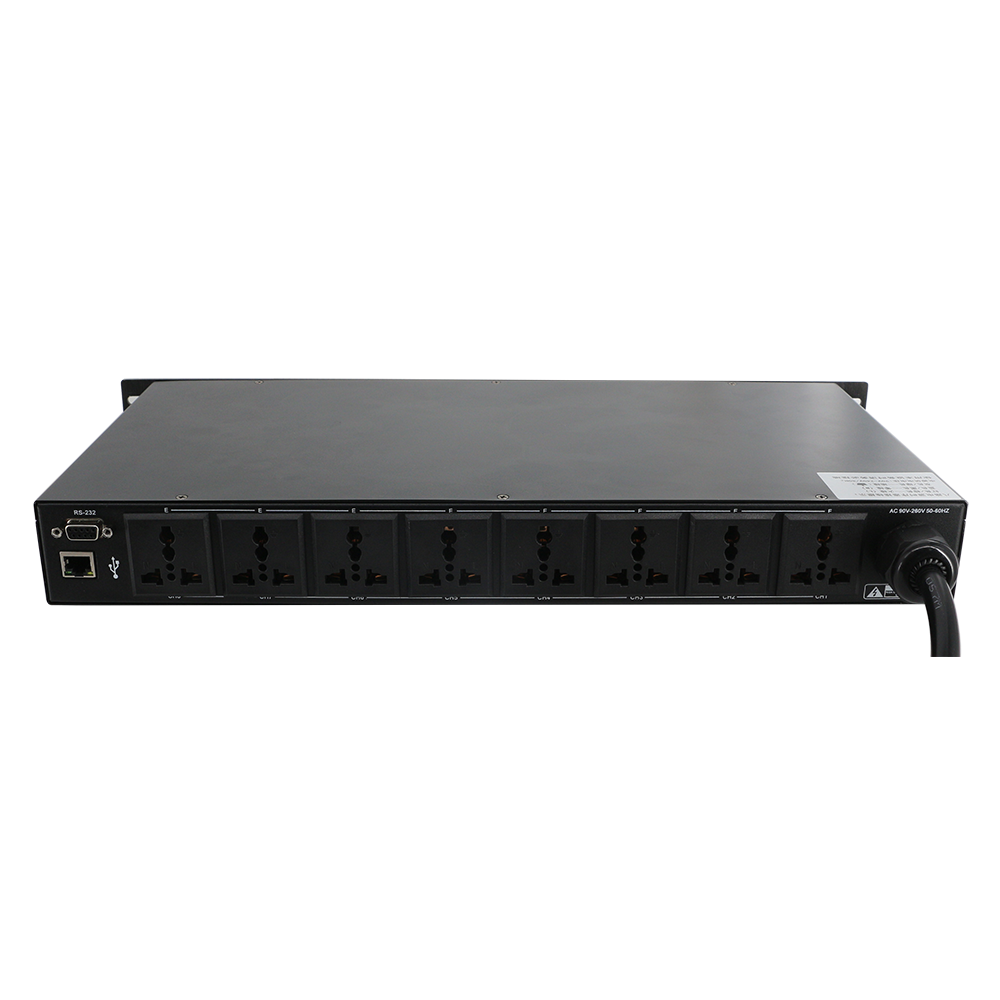

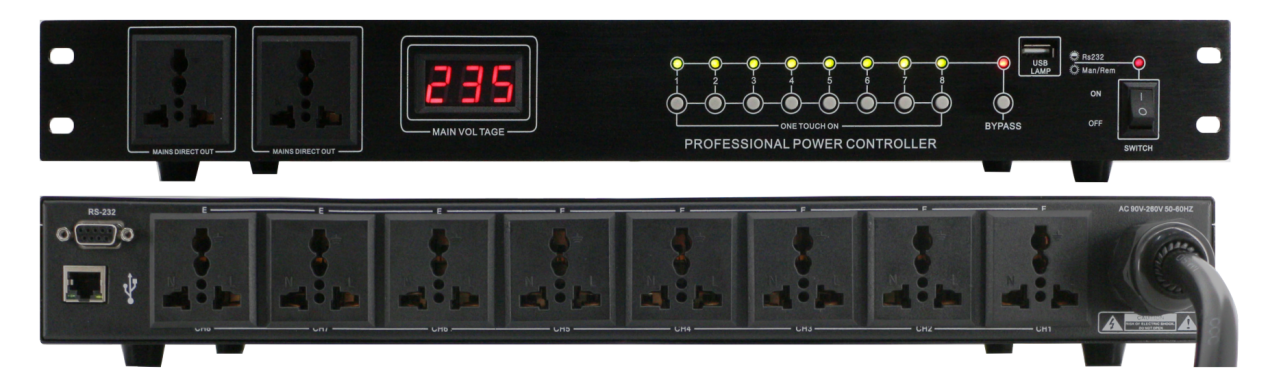

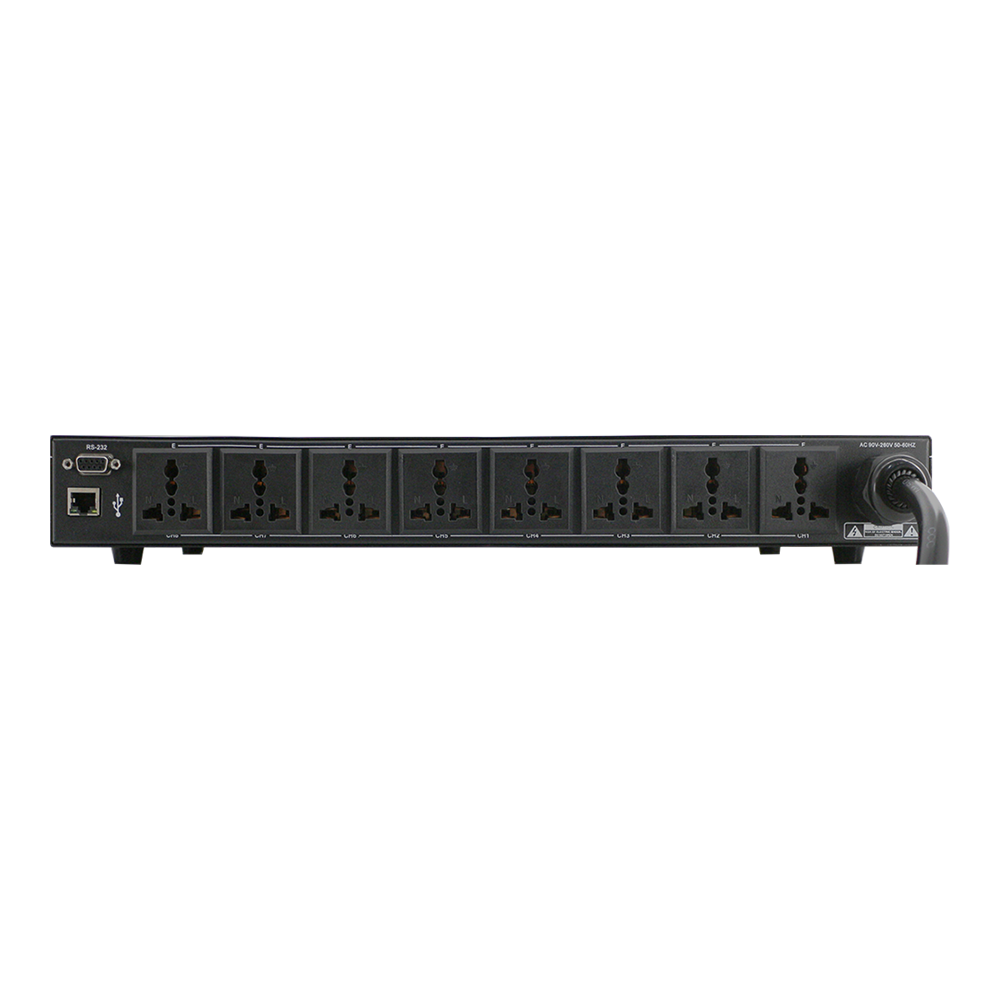

8*channels on the back, 2 pass-through on the front |
| Power supply |
110~260V 50/60Hz, 30A |
| Per channel output current |
13A |
| Rated output current |
30A |
| Weight |
4kg |
| Dimension(mm) |
Product: 482*240*55 |
| Packing: 536*410*80 |
Control Protocols
Network Control
- Default IP: 192.168.0.180
- UDP Port: 20108 (default)
RS232 Communication Protocol
- Connection: straight cable or USB-to-RS232 adapter
- Parameters: baud rate 9600, data bits 8, stop bits 1, parity none
Control Commands
| Command Code |
Description |
| 55 01 00 0D F0 AA |
Address 1: Sequential ON |
| 55 01 00 0D F1 AA |
Address 1: Sequential OFF |
| 55 01 00 01 F0 AA |
Address 1: CH1 ON |
| 55 01 00 01 F1 AA |
Address 1: CH1 OFF |
| 55 01 00 02 F0 AA |
Address 1: CH2 ON |
| 55 01 00 02 F1 AA |
Address 1: CH2 OFF |
| 55 01 00 03 F0 AA |
Address 1: CH3 ON |
| 55 01 00 03 F1 AA |
Address 1: CH3 OFF |
| 55 01 00 04 F0 AA |
Address 1: CH4 ON |
| 55 01 00 04 F1 AA |
Address 1: CH4 OFF |
| 55 01 00 05 F0 AA |
Address 1: CH5 ON |
| 55 01 00 05 F1 AA |
Address 1: CH5 OFF |
| 55 01 00 06 F0 AA |
Address 1: CH6 ON |
| 55 01 00 06 F1 AA |
Address 1: CH6 OFF |
| 55 01 00 07 F0 AA |
Address 1: CH7 ON |
| 55 01 00 07 F1 AA |
Address 1: CH7 OFF |
| 55 01 00 08 F0 AA |
Address 1: CH8 ON |
| 55 01 00 08 F1 AA |
Address 1: CH8 OFF |
| 55 02 00 08 F2 AA |
Set device address to 2 |
| 55 03 00 08 F2 AA |
Set device address to 3 |
| All 8 Channels ON/OFF delay 1s command:
5A A5 35 4F 01 2B 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 AA |
Command head: 5A A5 35 4F 01 2B
8 channels ON with 1s delay commands: 30 30 32 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31
8 channels OFF with 1s delay commands:30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31
Command ending: AA |
| Channel 2 ON delay 5s command:
5A A5 35 4F 01 2B 30 30 31 30 30 35 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 AA |
Channel 2 power ON with delay 5s, and the rest channels ON/OFF remain 1s delay. |
| Channel 2 ON delay 120s command:
5A A5 35 4F 01 2B 30 30 31 31 32 30 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 AA |
Channel 2 power ON with delay 120s, and the rest channels ON/OFF remain 1s delay. |
| Channel 5 OFF delay 5s command:
5A A5 35 4F 01 2B 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 35 30 30 31 30 30 31 30 30 31 AA |
Channel 5 power OFF with delay 5s, and the rest channels ON/OFF remain 1s delay. |
| Channel 5 OFF delay 90s command:
5A A5 35 4F 01 2B 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 30 31 30 39 30 30 30 31 30 30 31 30 30 31 AA |
Channel 5 power OFF with delay 90s, and the rest channels ON/OFF remain 1s delay. |
Notes
For third-party control, the front-panel BYPASS indicator must be OFF.

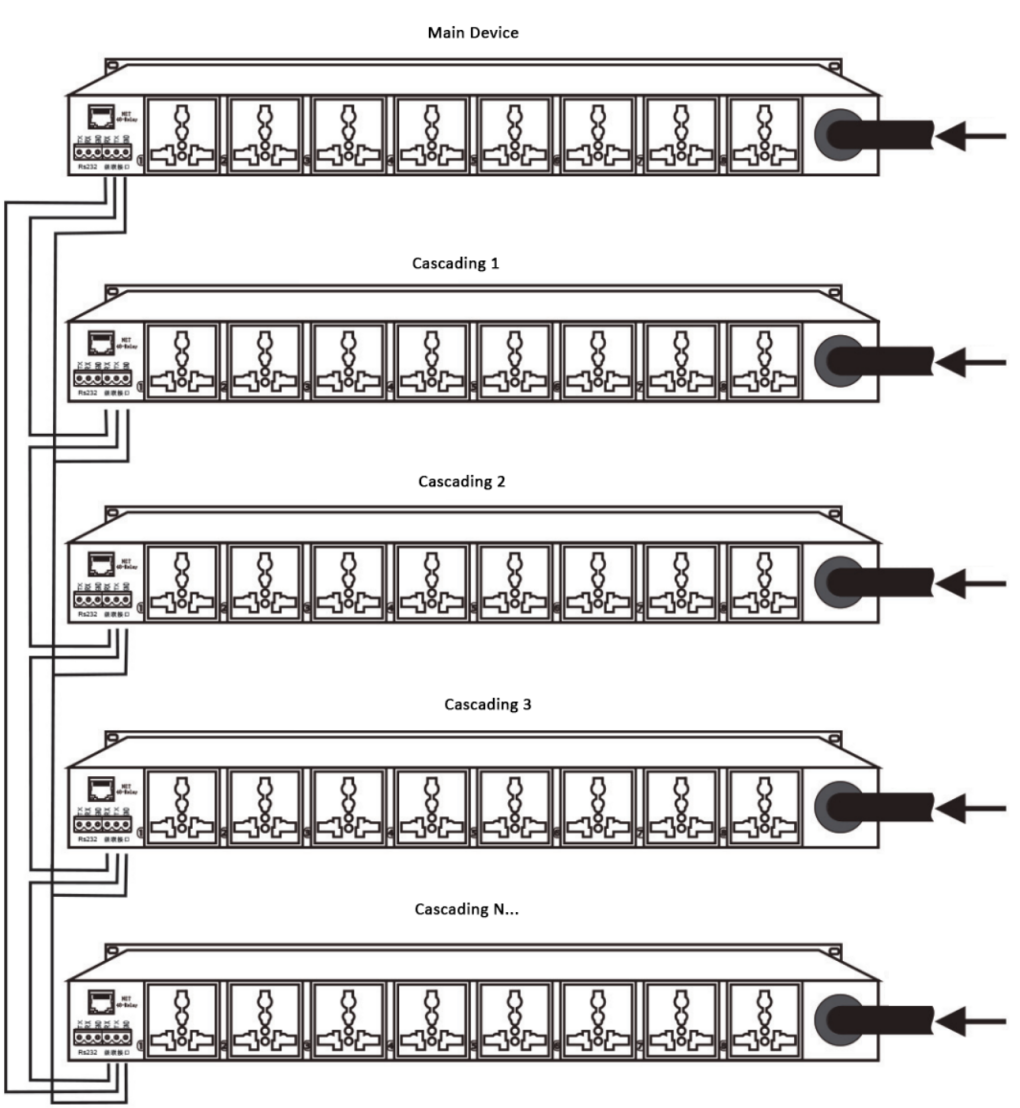

When modifying the device address, connect only one device to avoid changing addresses of multiple units.
