Introduction

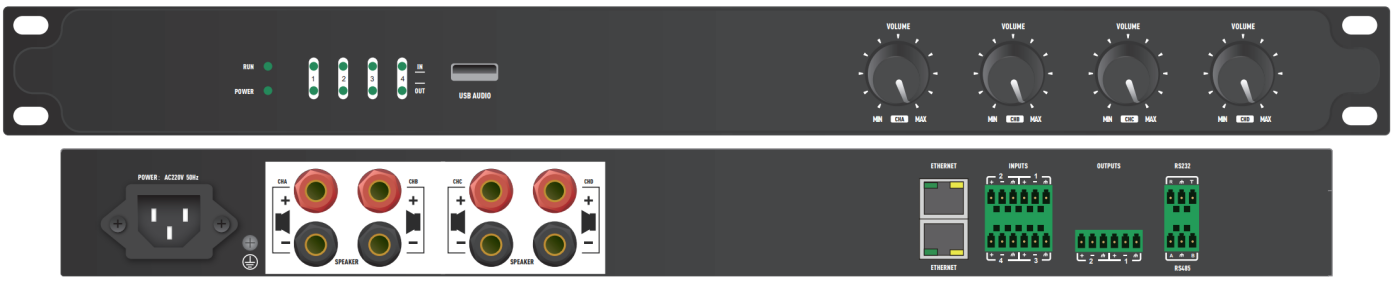

It is an all-in-one audio-video processor with a built-in USB sound card supporting playback, recording, and conferencing (e.g., ZOOM, Tencent, DingTalk). It features 8-band parametric EQ with 5 filter options, a customizable user interface for managing up to 30 devices, and centralized control via RS232, RS485, and UDP for seamless system integration.
Features
- Processor: ADI SHARC 21489
- Sampling rate/quantization bits: 48K/24bit
- 40bit DSP floating point operation engine
- Number of analog input channels: 4
- Input gain:0/6/12/18/24/30/36/42/48 dB
- Phantom power: +48V/10mA max
- Frequency response (20~20kHz):±0.5dB
- Maximum level:+18dBu
- THD+N:<-95dB @17dBu
- Input dynamic range: 113dB
- Output dynamic range: 113dB
- Channel isolation @1kHz:108dB
- Input impedance (balanced connection): 5.4KΩ
- Output impedance (balanced connection): 600Ω
- System delay: <3ms
- Amplifier parameters:
- Output power (EIAJ test standard): Stereo 4*150W/8Ω, bridged 300W/8Ω
- Input sensitivity: 2V
- Frequency response: 20Hz-20kHz (±0.5dB)@1W, 8Ω
- Signal-to-noise ratio: >80dB (20Hz-20kHz, A weighted)
- Crosstalk isolation: 80dB@1kHz
- THD＋N: < 0.08% from 0.1W to 1/2 power (typically <0.05%)
- DIM100: < 0.2% from 0.1W to 1/2 power (typically <0.05%)
- Input impedance: 4.5kΩ balanced
- Conversion rate: 50V/μs@8Ω, input filter bypassed
- Damping coefficient: >500@1KHz
Specification
| Name | 4X4 DSP with 4 Amplifier |
| Processor | ADI SHARC 21489 |
| Sampling Rate/Bit Depth | 48K/24bit with a 40bit DSP floating-point engine |
| Analog Input/Output Channels | 4 x 4 |
| Input Gain | 0/6/12/18/24/30/36/42/48 dB |
| Phantom Power | +48V/10mA max |
| Frequency Response (20~20kHz) | ±0.5dB |
| Maximum Level | +18dBu |
| THD+N | < -100dB @4dBu |
| Dynamic Range (Analog Channels) | 110dB |
| Input Dynamic Range | 110dB |
| Output Dynamic Range | 112dB |
| Channel Crosstalk @1kHz | 108dB |
| Input Impedance (Balanced) | 5.4KΩ |
| Output Impedance (Balanced) | 600Ω |
| System Delay | < 3ms |
| Output Power (EIAJ Standard) | Stereo 4 x 150W/8Ω, Bridged 300W/8Ω |
| Input Sensitivity | 2V |
| Frequency Response | 20Hz-20kHz (±0.5dB) @1W, 8Ω |
| Signal-to-Noise Ratio | >80dB (20Hz-20kHz, A-weighted) |
| Crosstalk Isolation | 80dB @1kHz |
| THD+N | < 0.08% from 0.1W to 1/2 power (typically <0.05%) |
| DIM100 | < 0.2% from 0.1W to 1/2 power (typically <0.05%) |
| Input Impedance | 4.5kΩ balanced |
| Slew Rate | 50V/μs @8Ω, input filter bypassed |
| Damping Factor | >500 @1kHz |
| Power Supply | 90V-264V, 50-60Hz |
| Dimensions (W x D x H) | 482 x 260 x 45mm |
| Weight | 7Kg |
