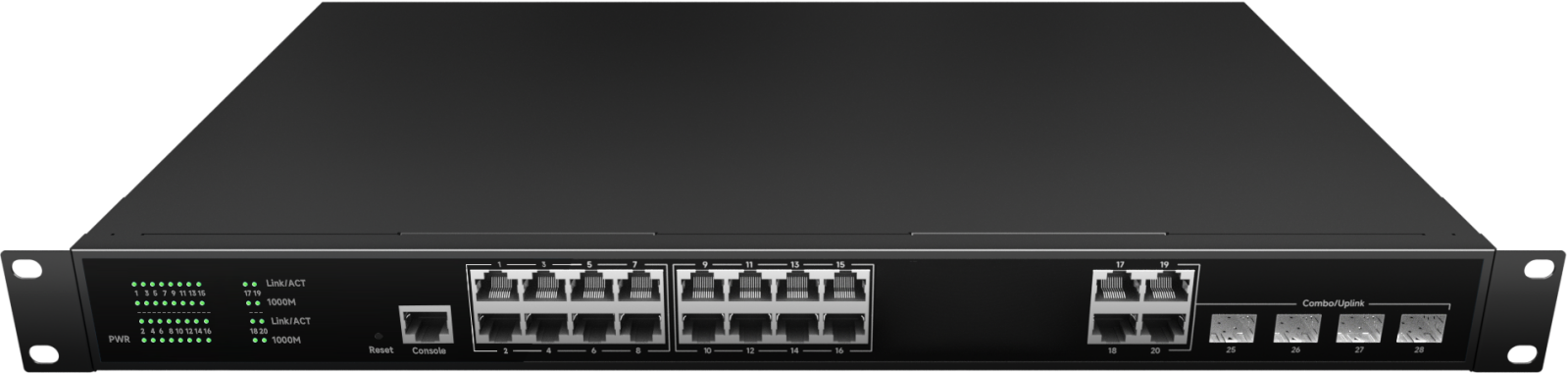

IPM-MANAGER-1600H
Switch Ethernet PoE gerenciado de 16×10/100/1000 Base-T + 4*1000 Combo
Input Voltage: AC 100-240V 50/60 Hz
Operating Temperature: -10℃ ~ +50℃
Thermal Methods: Fan cooling
Test Report: RoHS, FCC, CE
ESD: 8KV-15KV
MTBF: 100,000 hours
The IPM-MANAGER-1600H series Ethernet L3 PoE Switch is equipped with 16* 10/100/1000Mbps adaptive RJ45 ports and 4*1000Mbps combo ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Ports 1-16 support IEEE802.3AF/AT standard PoE power supply. It can as Power over Ethernet (PoE) devices, automatically detecting and recognizing standard-compliant powered devices, and powering them through the Ethernet cable.
The switch adopts store and forward switching, combined with QoS technology, to ensure effective bandwidth allocation to each port, providing stable and reliable power and data transmission for high-power AP, network cameras, PTZ cameras, PoE lighting and other security surveillance equipment.
| Provider Mode Ports | |
| Fixed port | 4*1000 Combo+16*10/100/1000 Base-T |
| Management | Support console |
| Power interface | AC Interface |
| LED Indicators | PWR, SYS, Link/ACT LED
ssusupplysupply |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Monomode optical fiber | 20/40/60/80/100KM |
| Multimode optical fibre | 550M |
| Network Topology | |
| Ring topology | Suporte |
| Star topology | Suporte |
| Bus topology | Suporte |
| Tree topology | Suporte |
| Hybrid topology | Suporte |
| Electrical Specifications | |
| Input voltage | AC 100-240V 50/60Hz |
| Total Power consumption | ≤300W |
| Main board power | <20W |
| PoE Support | |
| PoE protocol | 802.3AF，802.3AT |
| Pin Assignment | 1,2+/3,6- |
| PoE port | 3-16 |
| PoE Management | Suporte |
| Layer 2 Switching | |
| Switching capacity | 56Gbps |
| Packet forwarding rate | 29.76Mpps |
| MAC address table | 8K |
| Buffer | 4.1M |
| Forwarding delay | <10us |
| MDI/MDIX | Suporte |
| VLAN | 256 |
| GVRP | Suporte |
| Protocol VLAN | Suporte |
| Voice VLAN | Suporte |
| Surveillance VLAN | Suporte |
| MAC VLAN | Suporte |
| Ethernet channel/ 802 .3ad | Suporte |
| LACP | Suporte |
| Interface Speed | Suporte |
| Duplex Mode | Suporte |
| Flow Control | Suporte |
| Jumbo Frame | Suporte |
| DHCP Client | Suporte |
| SNTP Client | Suporte |
| Port Statistics | Suporte |
| Protected Ports | Suporte |
| EEE | Suporte |
| Ethernet Ring Protection Switching | Suporte |
| LLDP | Suporte |
| LLDP 802.1 TLV | Suporte |
| MSTP / RSTP / STP | Suporte |
| STP BPDU Filter | Suporte |
| STP BPDU guard | Suporte |
| STP Port Fast | Suporte |
| IGMP Snooping | Suporte |
| MLD Snooping | Suporte |
| MVR | Suporte |
| DHCP Interface Priority IP Binding | Suporte |
| Device Scanning | Suporte |
| Layer 3 Route | |
| IPV4 management | Suporte |
| IPV6 management | Suporte |
| Static Routes IPv4 | 32 |
| Static Routes IPv6 | 32 |
| ARP | Suporte |
| Loopback Interface | Suporte |
| DHCP Server | Suporte |
| DNS Server | Suporte |
| DNS Client | Suporte |
| Convergence | |
| ACL | Support MAC Standard/Extended ACL
Support IPV4 Standard/Extended ACL Support IPV6 Standard/Extended ACL |
| QoS | Support QoS Remarking
Support Port Trust Support Port Speed Limit Support Egress Queue Speed Limit Support SP，WRR Support COS，DSCP，IP Priority |
| Management | |
| User Management | Suporte |
| System Log | Suporte |
| Upgrade Firmware | Suporte |
| Configuration File Download/Upload | Suporte |
| SNMP | Support SNMP v1/v2/v3 |
| WEB Management | Suporte |
| Console | Suporte |
| CLI | Suporte |
| Telnet/SSH | Suporte |
| RMON | Suporte |
| Security | |
| Management channel configuration | Suporte |
| AAA | Suporte |
| 802.1X | Suporte |
| MAC-Based | Suporte |
| WEB-Based | Suporte |
| DoS attack prevention | Suporte |
| Dynamic ARP Inspection | Suporte |
| DHCP Snooping | Suporte |
| IP Source Guard | Suporte |
| Port Security | Suporte |
| Protected Ports | Suporte |
| Storm Control | Suporte |
| Equipment Diagnosis | |
| Console Log | Suporte |
| RMA Log | Suporte |
| Flash Log | Suporte |
| Port Mirroring | Support 1:1 or M:1 |
| Ping | Suporte |
| Traceroute | Suporte |
| Copper port test | Suporte |
| SFP transceiver information | Suporte |
| UDLD protocol | Suporte |
| Environment | |
| Temperatura operacional | -10℃~+50℃ |
| Temperatura de armazenamento | -40℃~+70℃ |
| Relative humidity | 10%~90% RH |
| Thermal methods | Fan cooling |
| MTBF | 100,000 hours |
| EMC & Ingress Protection | |
| Surge protection for Power | Common mode 6KV, differential mode 2KV |
| Surge protection for Ethernet port | Common mode 4KV, differential mode 2KV |
| ESD | Contact 8K, Air 15K |
| Free fall | 0.5m |
| Mechanical Dimensions | |
| Product size | 440*280*44mm（LxWxH） |
| Método de instalação | Rack mounted |
| Peso | 3.4KG |
| Accessories | |
| Accessories | Device,Inspection Certificate,User manual,power cord,Dust Plug |

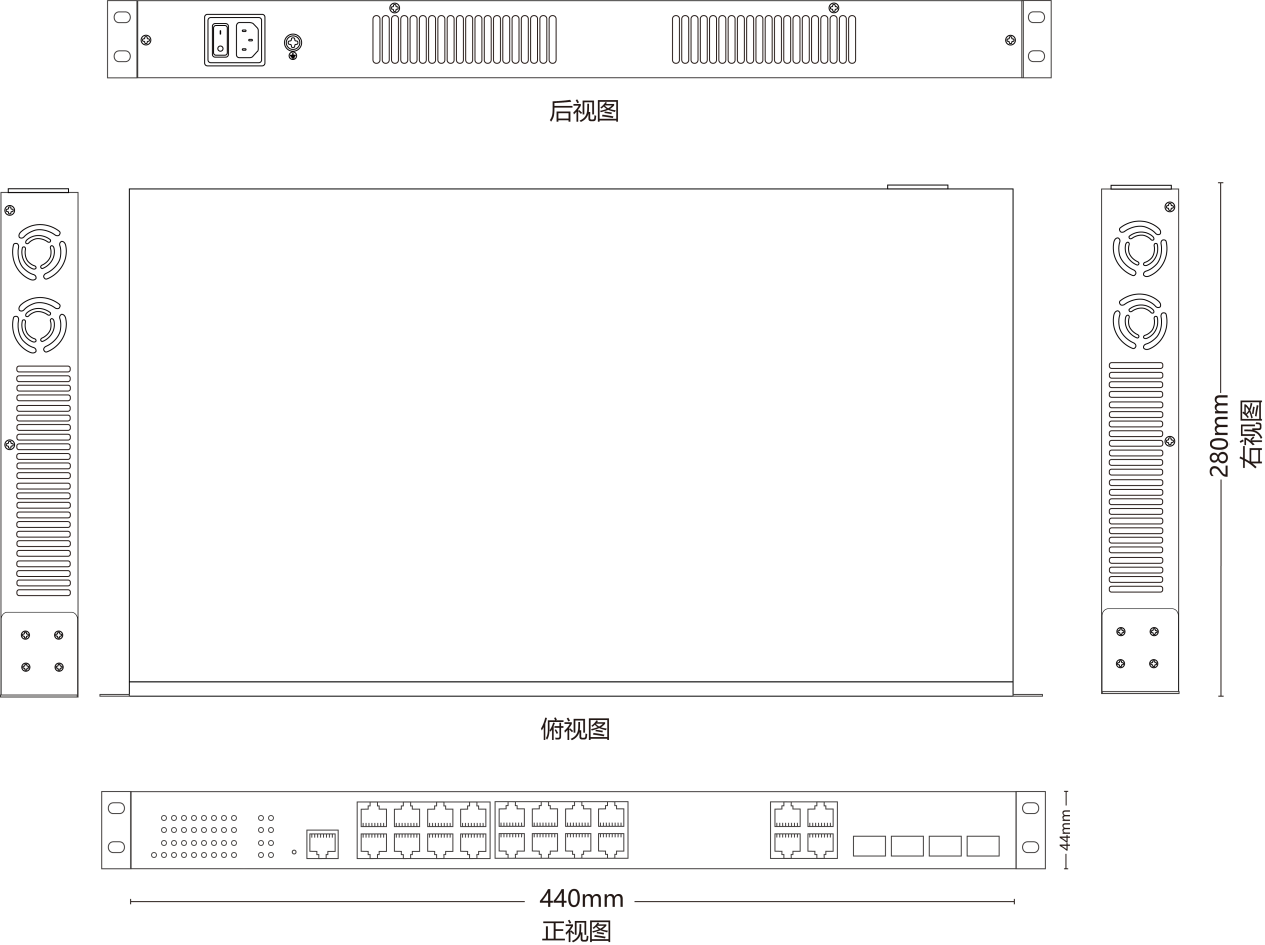

Front view
Left view
Right view
Top view
Back view
