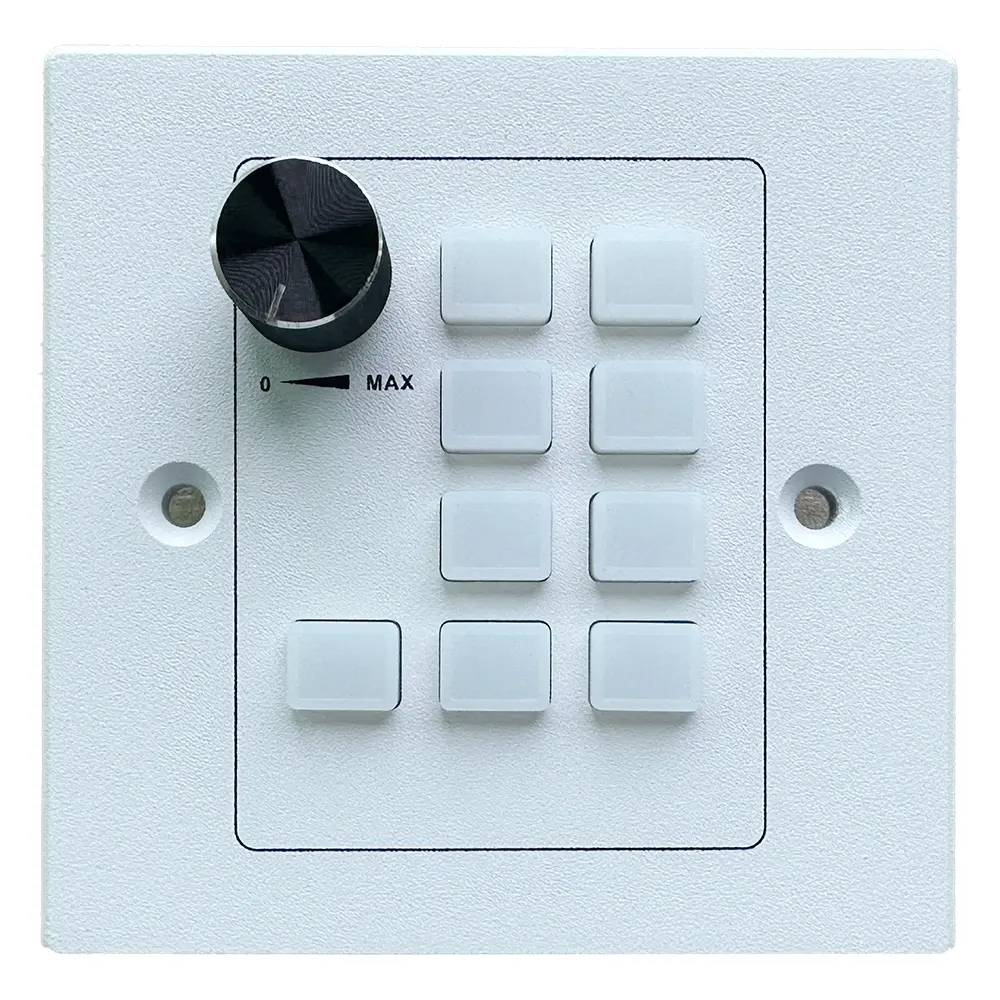

9-button programming control keypad with knob, lock and PoE function - Imagem 2

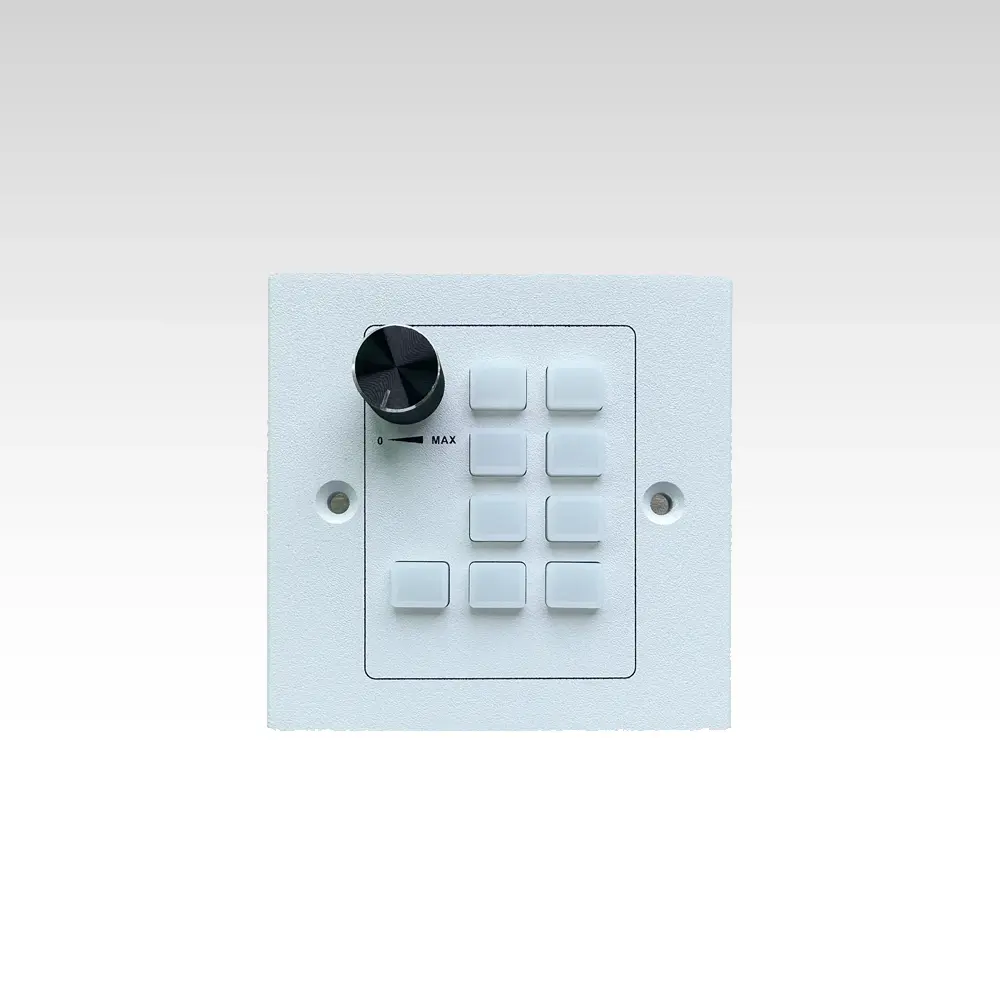

Teclado de controle de programação de 9 botões com botão, trava e função PoE

Model: BYOD-1000A
Supports 9 control buttons(8-button and 1-knob and one lock)
Supports Lock button to lock/unlock key operations
Supports 2*RS232, 2*RELAY, 1*LAN(POE):TCP, UDP, HTTP control protocols
Supports WEB GUI, APP, 3rd party controls
Supports WEB GUI and APP programming
Supports POE or DC power supplies

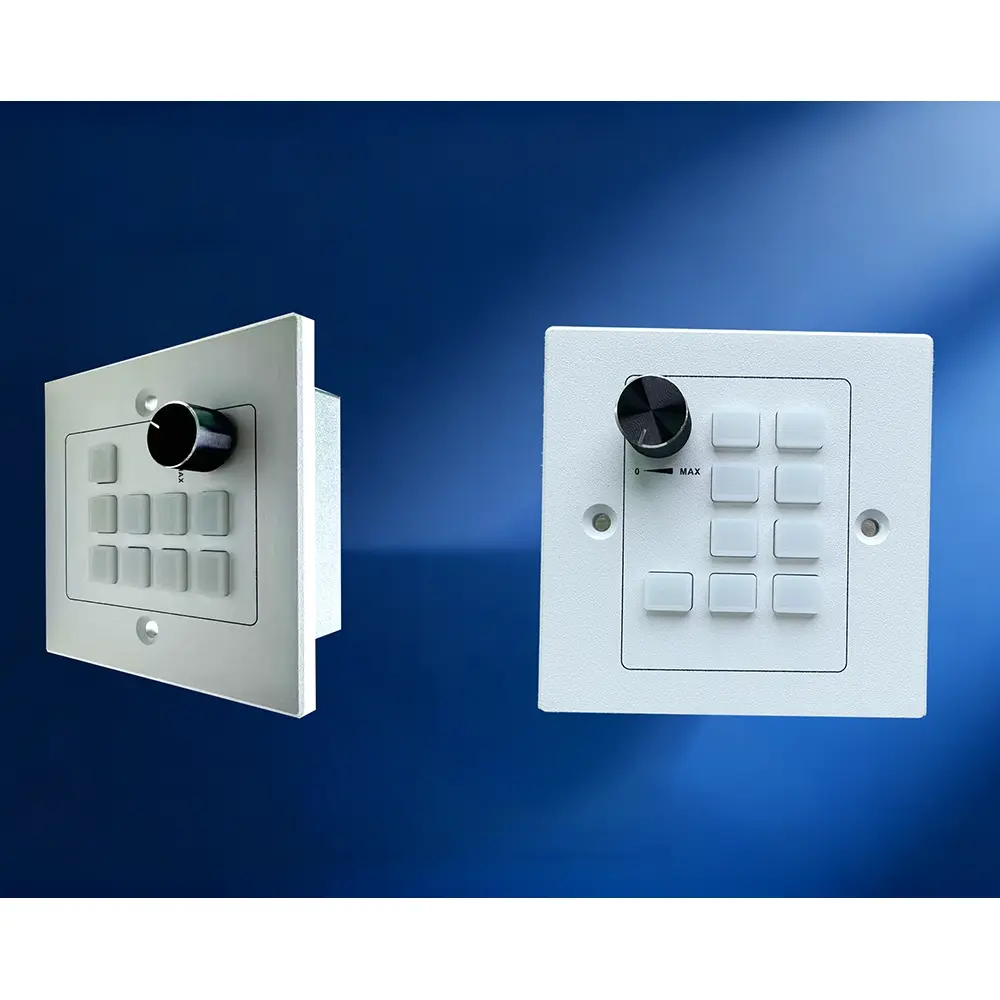

Support UK single-gang or US double-gang size

Categorias: Processadores de controle, Sistema de controle, Produto

PERGUNTAS

Descrição
Avaliações (0)

Introdução

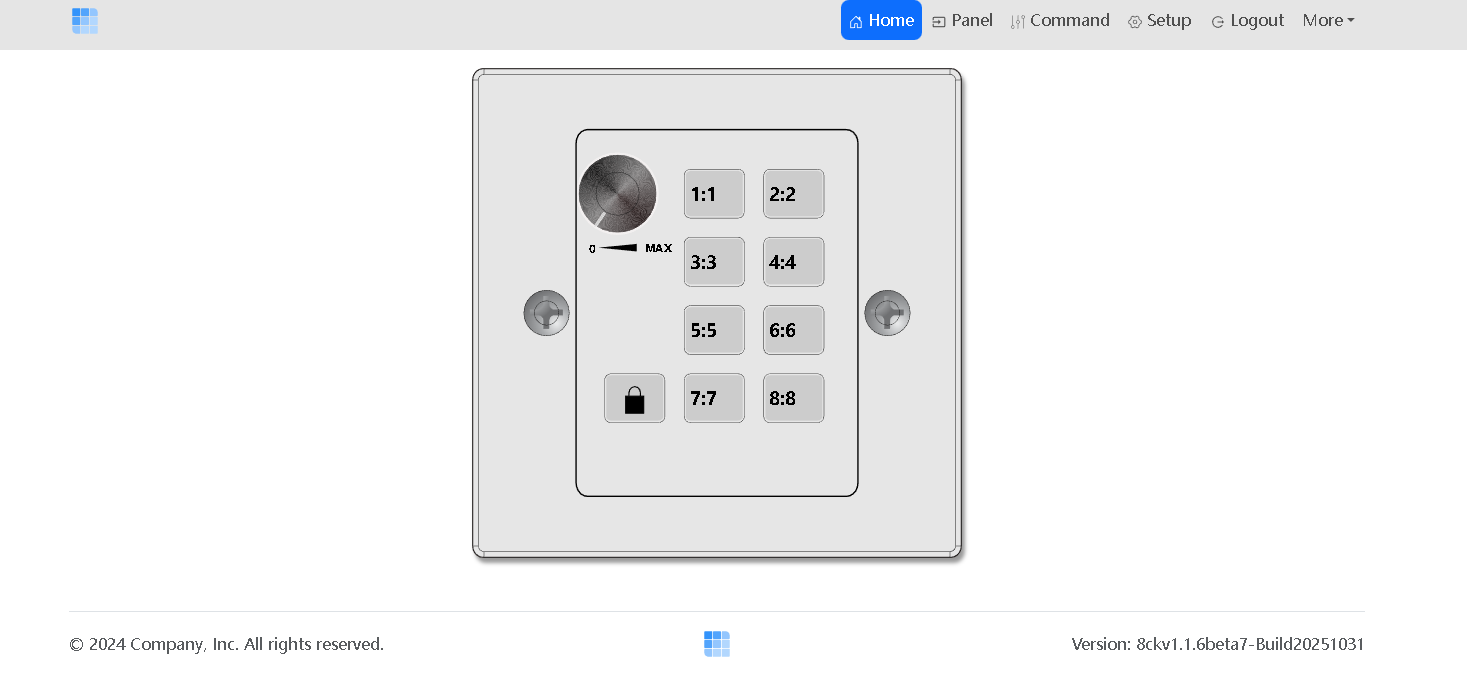

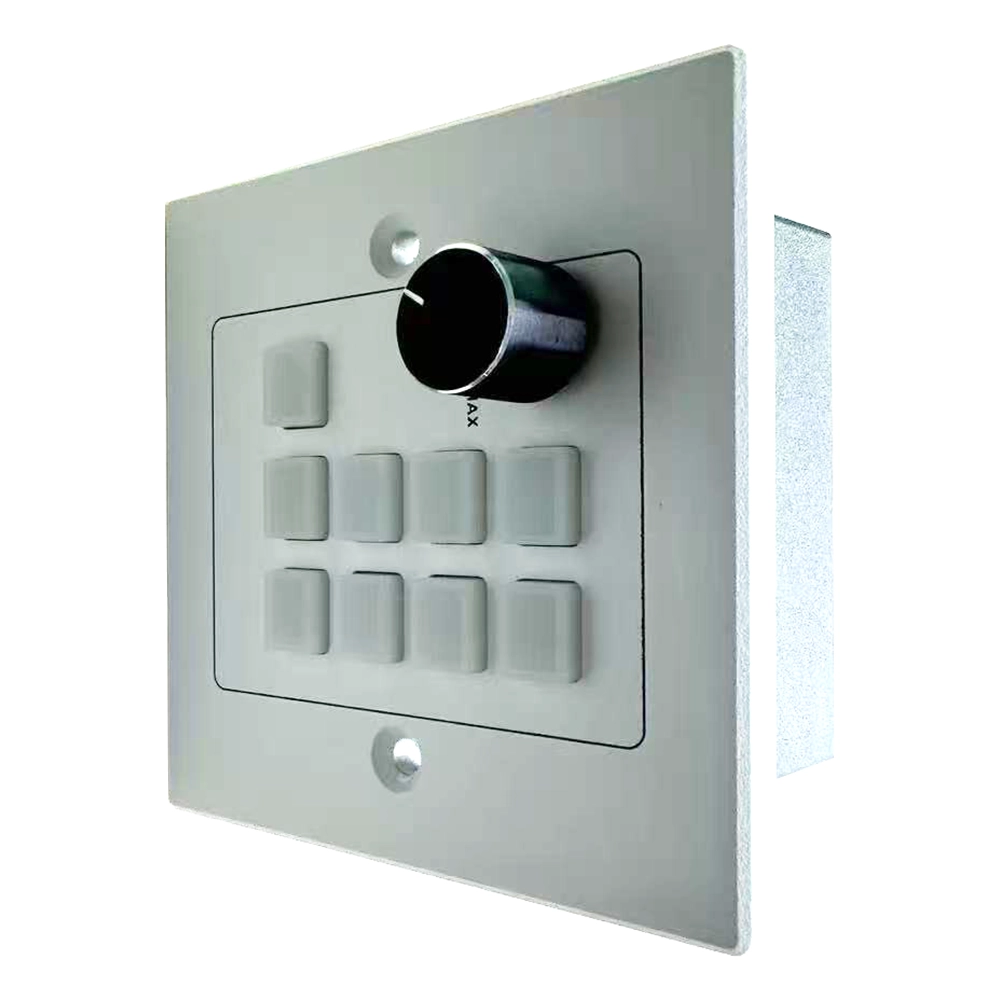

BYOD-1000A (Hereinafter referred to as the Keypad) is a 9-button keypad controller aimed at providing customers simple and economic control solutions. With built-in PoE, it can receive power from PoE enabled ethernet switch. The keypad can control devices like presentation switches through LAN(PoE),RS232 or relay ports to control other devices, it also can support the 3^rd party control via commands. It supports WEB GUI/APP control/programming, also system firmware update, configuration save/restore on web UI. Available in both UK single or US double-gang size panels.

Recursos

Supports 9 control buttons(8-button and 1-knob and one lock)
Supports Lock button to lock/unlock key operations
Supports 2*RS232, 2*RELAY, 1*LAN(POE):TCP, UDP, HTTP control protocols
Supports WEB GUI, APP, 3rd party controls
Supports WEB GUI and APP programming
Supports POE or DC power supplies
Support UK single-gang or US double-gang size

Especificação

Item	Especificação

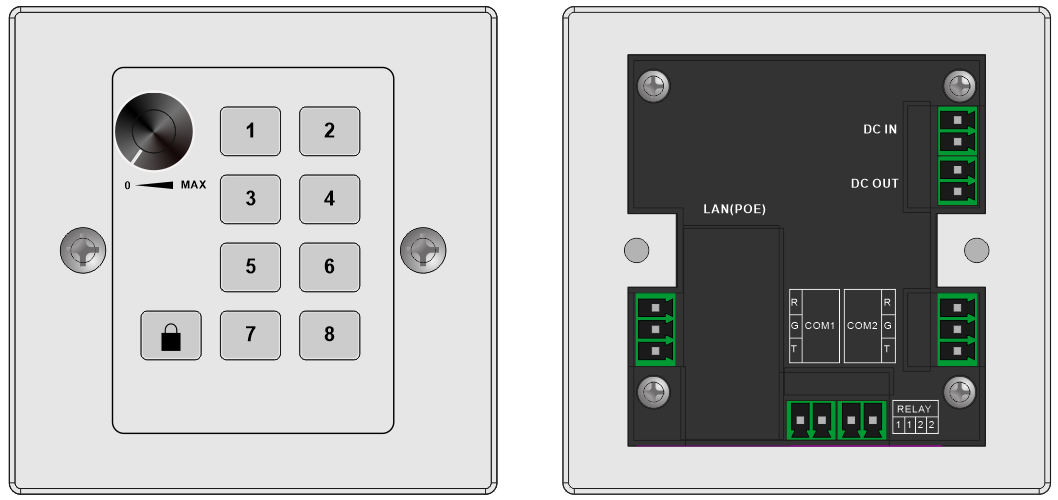

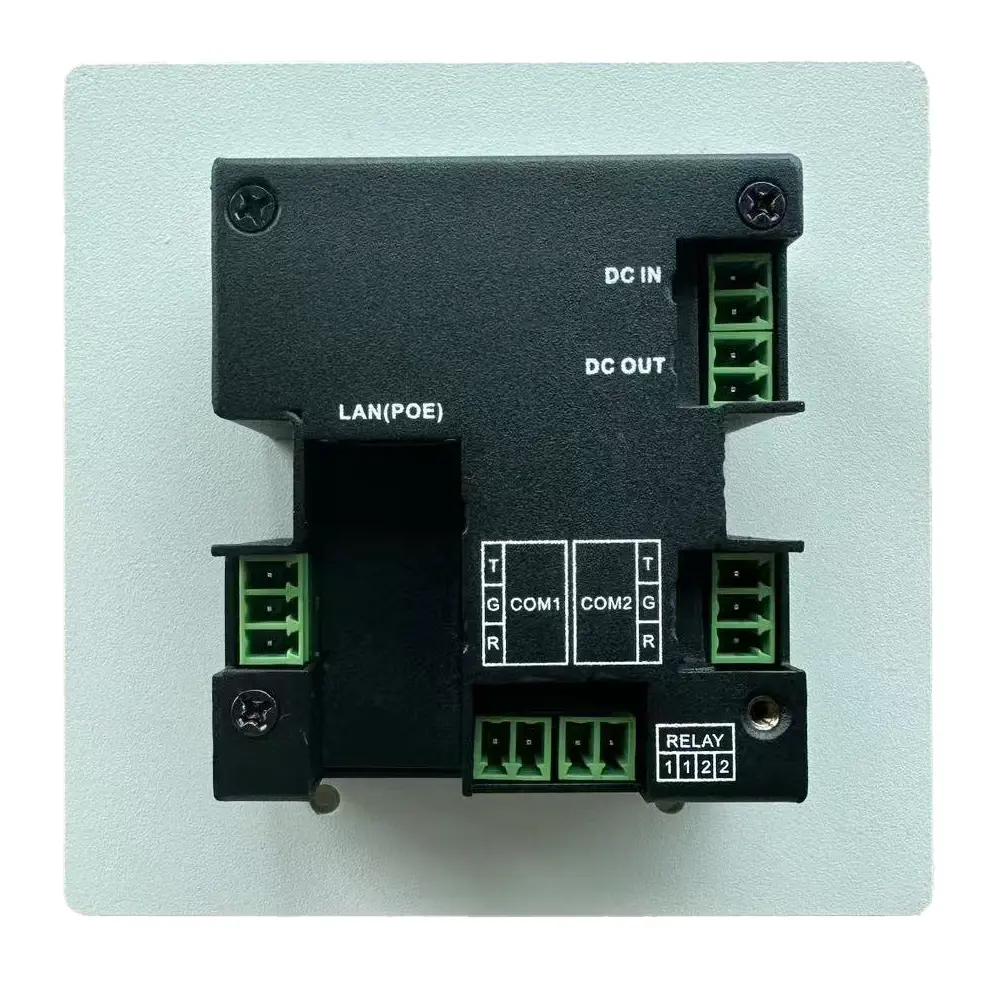

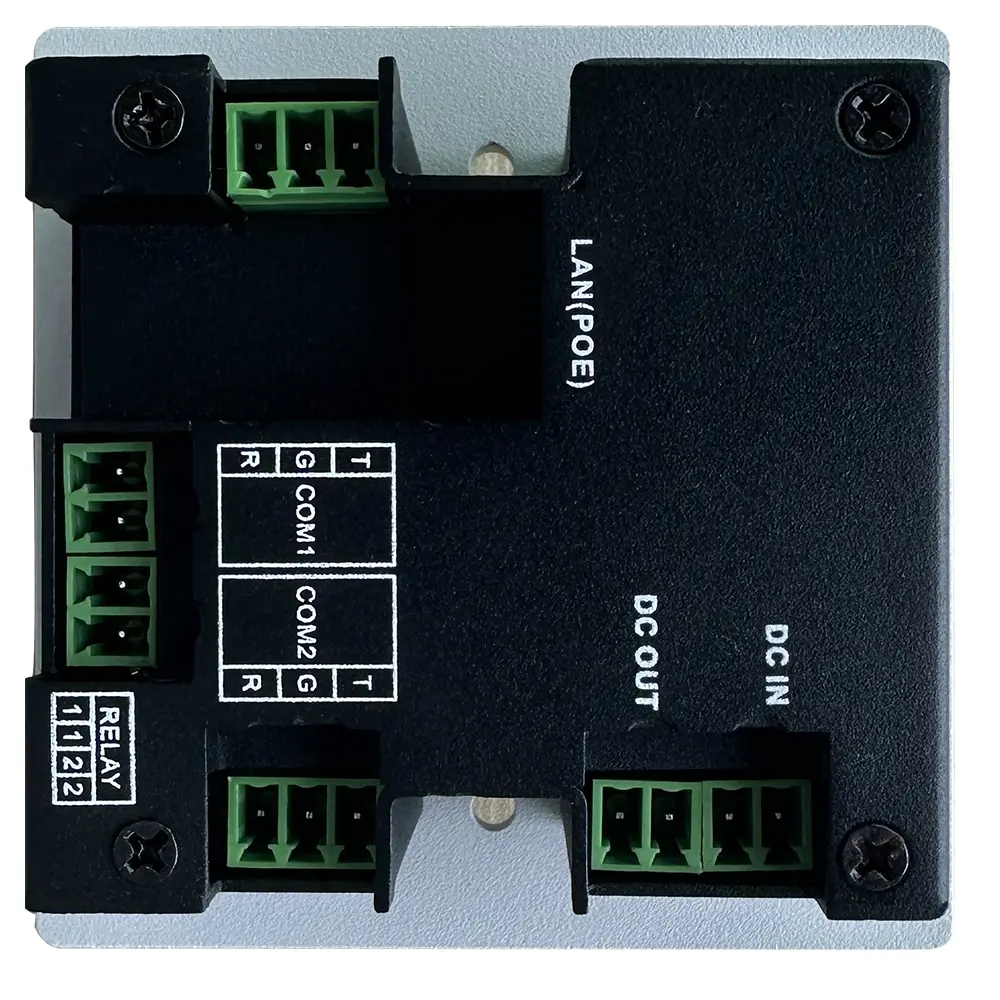

Control Ports	2RS232 , 2RELAY , 1*LAN(POE)
ESD Protection	Human Body Discharge Mode: ± 8kV (Air Discharge), ± 4kV
Fonte de alimentação	DC 12V 1.5A
Consumo de energia	Maximum 3.6W

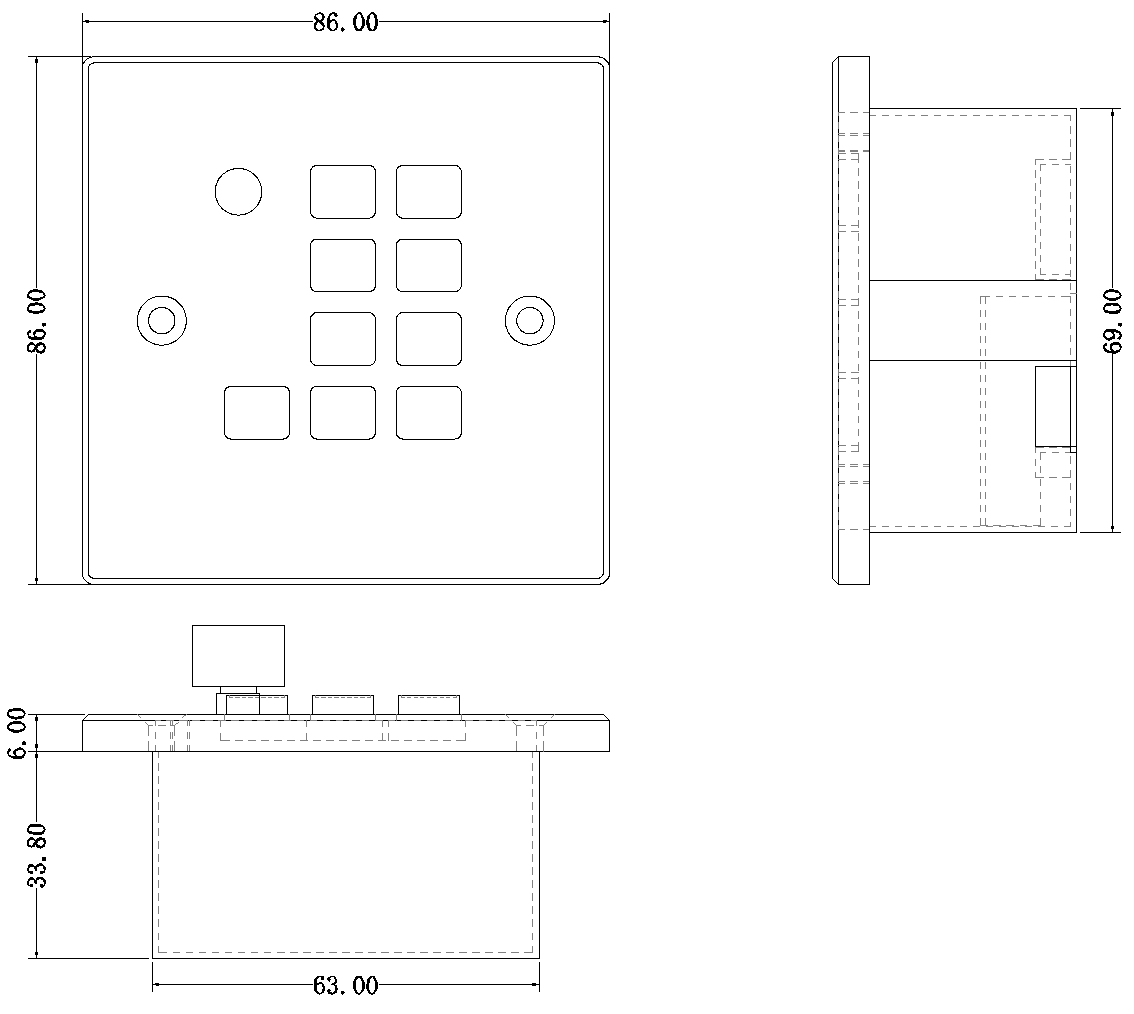

UK Dimensions (mm)	86 mm (W) × 86 mm (D) × 39.8 mm (H)
Peso	280g
Temperatura operacional	0 ºC ~ 40 ºC / 32 ºF ~ 104 ºF
Temperatura de armazenamento	−20 ºC ~ 60 ºC / −4 ºF ~ 140 ºF
