Introdução

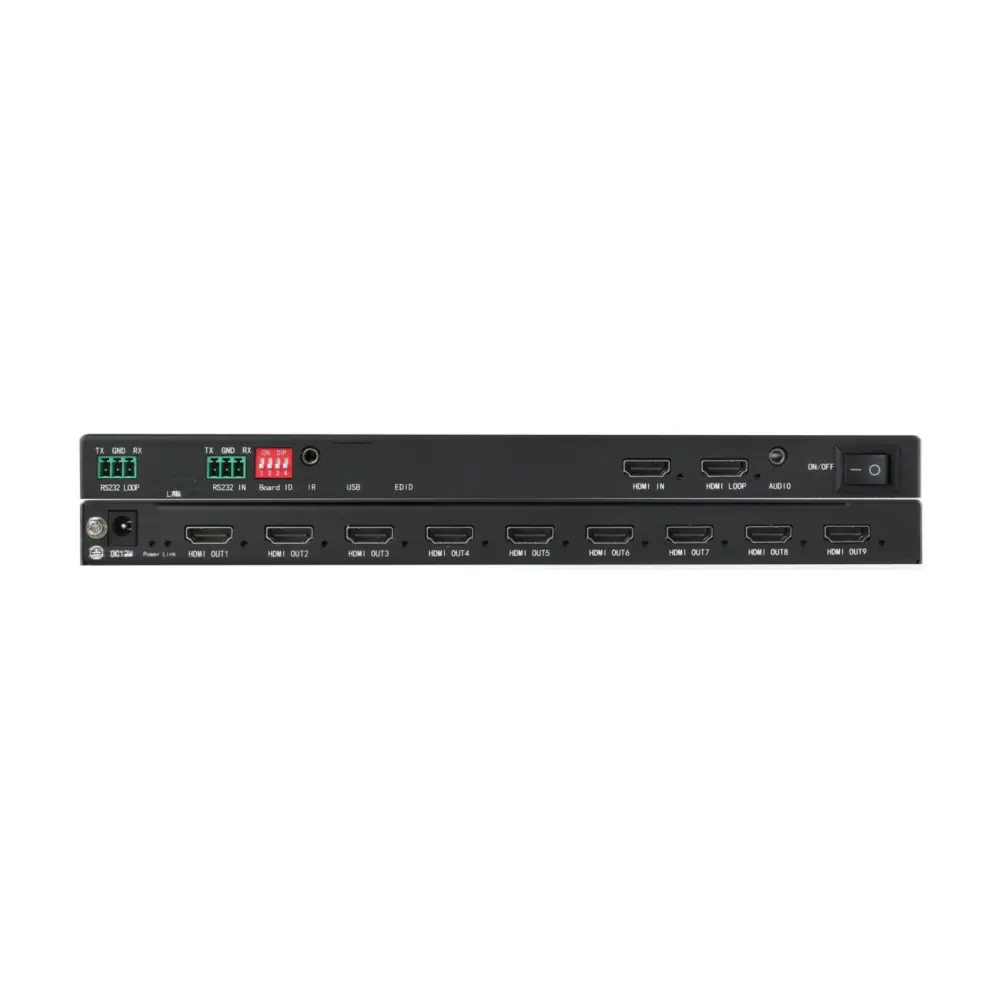

This TV Wall controller is designed to be a truly capture, AD convert, route, distribute all-format signal to the video wall(LCD displays), while maintaining a true digital signal.
The controller with many different video interfaces, include 1 HDMI and 1 HDMI loop out with up to 4K60 resolution and 9 HDMI outputs with 1080P resolution and 3.5mm audio output. Supports different Video Wall modes, 1×2, 1×3, 1×4, 2×2, 3×3 etc, with the 4K60 input and 1080P output, it can realize the point to point(pixel to pixel) display. This controller can be controlled by remote and RS232 commands control.
Recursos
- Supports 1 HDMI input with HDMI loop out, resolution up to 4K60
- Outputs support image 90, 180 and 270 degrees rotation
- Supports 9 HDMI with 1920*1200@60 resolution outputs
- Supports multiple splicing ways: 2×2, 1×4, 4×1, 1×3 …
- Supports the splicing edge adjustment
- Supports HDMI 2.0, HDCP compatible
- Supports the IR remote, push-button control and RS232 commands
Especificação
| Product name | 4K60 TV wall controller |
| Controle | Remote control, RS232 commands |

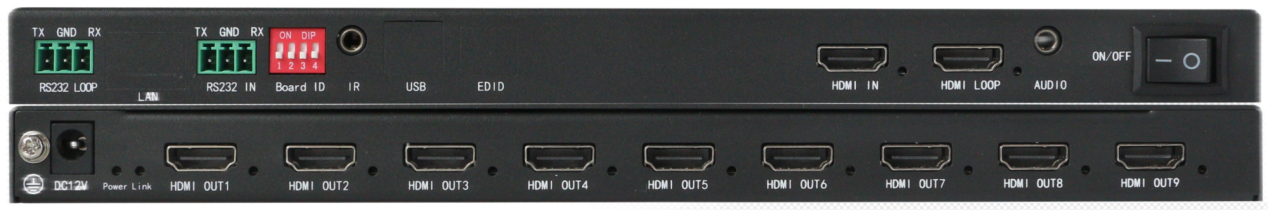

| Entrada | 1* HDM, 1*RS232 |
| Saída | 9*HDMI, 1*3.5mm audio, 1*RS232 |
| Resolução | Input: 3840×2160@60Hz/3840×2400@60Hz
5760×3240@30Hz/7680×2160@30Hz Output: 1920*1200@60Hz |
| Display splice mode | 3×3, 2×2, 1×4, 4×1, etc… |
| Power Supply | DC 12V2A |
| Power Consumption | 10W |
| Dimension (WxHxD) | 300mm*142mm*35mm |
| Peso | 2KG |
| Operating Temperature | -10℃ to 50℃ |
| Temperatura de armazenamento | -25℃ to 55℃ |

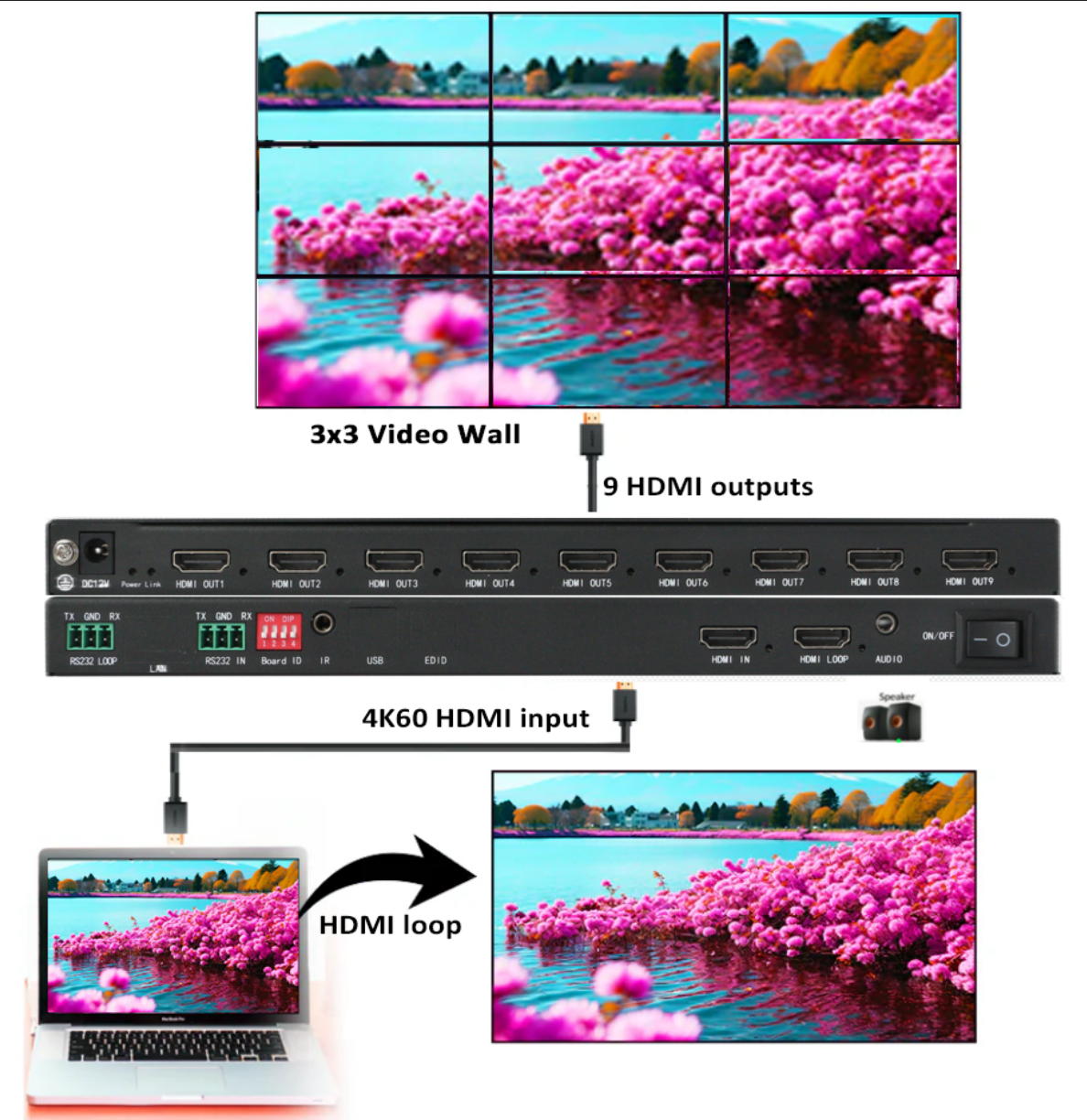

Diagrama de conexão
